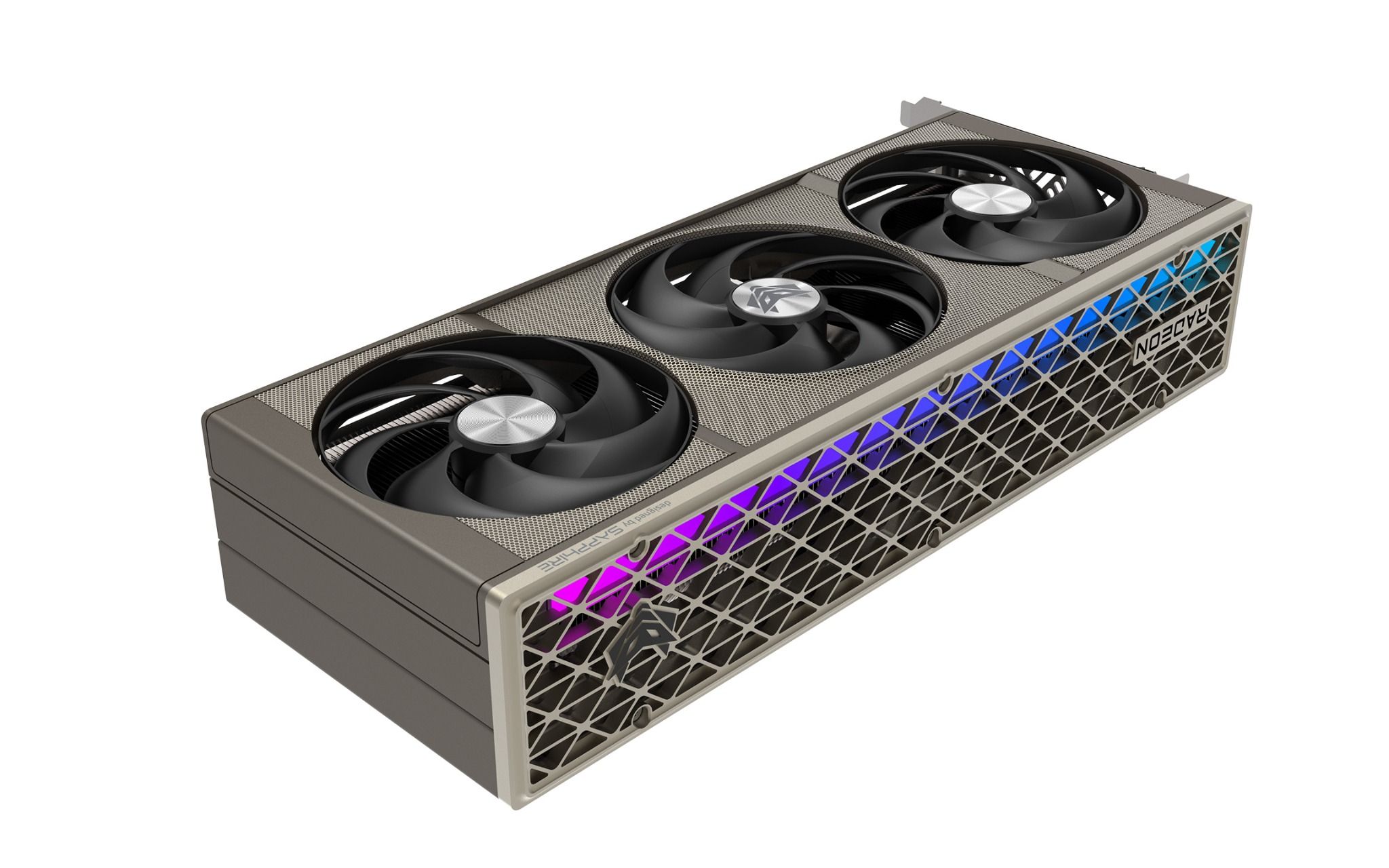

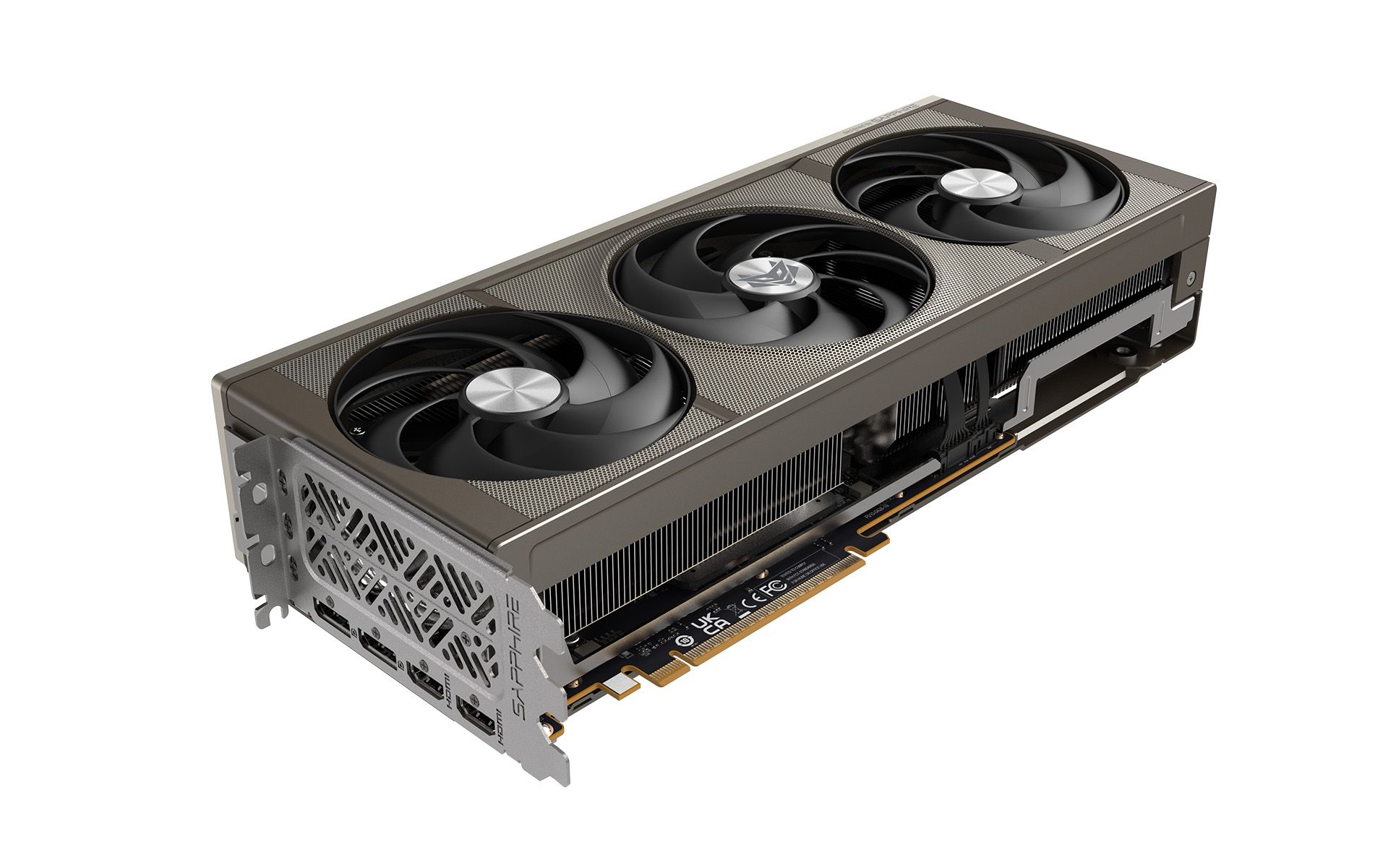

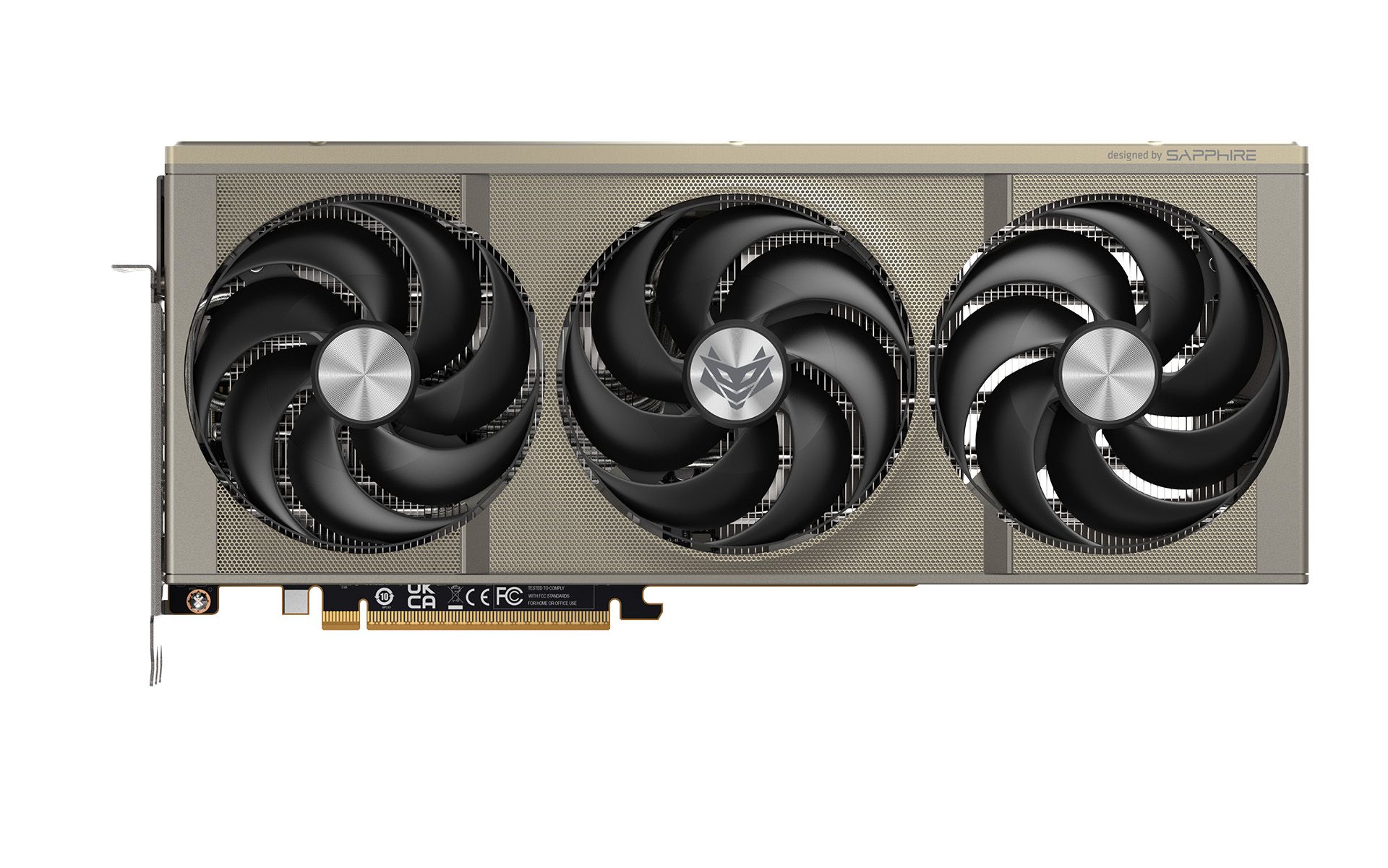

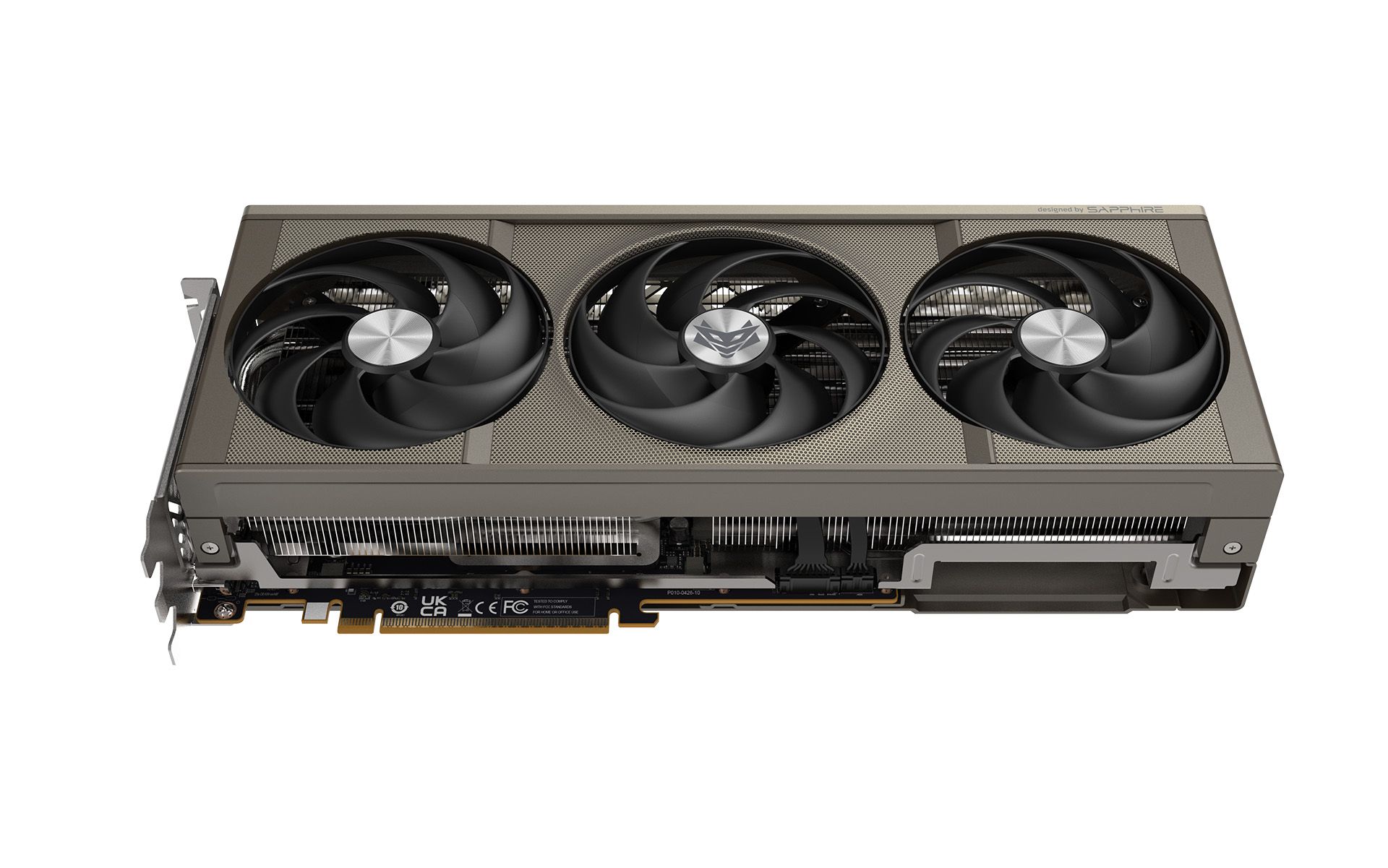

NITRO+ AMD Radeon™ RX 9070 XT GPU
GPU: Boost Clock: Up to 2700 MHz
GPU: Game Clock: Up to 2210 MHz
Memory: 16GB/256 bit DDR6. 20 Gbps Effective
Stream Processors: 3584
AMD RDNA™ 4 Architecture
Ray Accelerator: 56
Bảo hành : 36 Tháng
Thông số kỹ thuật
GPU | AMD Radeon™ RX 9070 Graphics Card |
AMD RDNA™ 4 Architecture |
Engine Clock | Boost Clock: Up to 2700 MHz |
Game Clock: Up to 2210 MHz |
Stream Processors | 3584 |
Compute Units | 56 CUs (3rd Gen RT + 2nd Gen AI Accelerators) |
Infinity Cache | 64MB |
Ray Accelerators | 56 |
AI Accelerator | 112 |
Memory Size/Bus | 16GB/256 bit GDDR6 |
Memory Clock | 20 Gbps Effective |
Displays | Maximum 4 Displays |
Resolution | HDMI®: 7680×4320 |
DisplayPort™ 2.1a: 7680×4320 |
Interface | PCI-Express 5.0 x16 |
Output | 2x HDMI® |
2x DisplayPort™ 2.1a |
BIOS Support | UEFI |
Game Index | 4K |
Form Factor | 3.2 slot, ATX |
Dimension: 330.8(L)X 128.5(W)X 65.68 (H)mm |
Power Consumption | 245W Typical Board Power |
OS | Linux®, Windows® 10, and Windows 11. 64-bit operating system required |
System Requirement | Minimum 750 Watt Power Supply |
2 x 8-pin Power Connector. |
PCI Express® based PC is required with one X16 lane graphics slot available on the motherboard. |
Minimum 8GB of system memory. 16GB recommended. |
