| Nhà sản xuất | Asus |
| Model | PROART-X870E-CREATOR-WIFI |
| Mainboard Form Factor | ATX |
| Chipset | AMD X870E Chipset |
| Socket CPU | LGA AM5 |
| CPU Hỗ trợ | AMD Ryzen 7000, 8000, 9000 Series |
| RAM Hỗ trợ | 4x DDR5 DIMM Slot |
| Dung lượng RAM tối đa | 192GB |

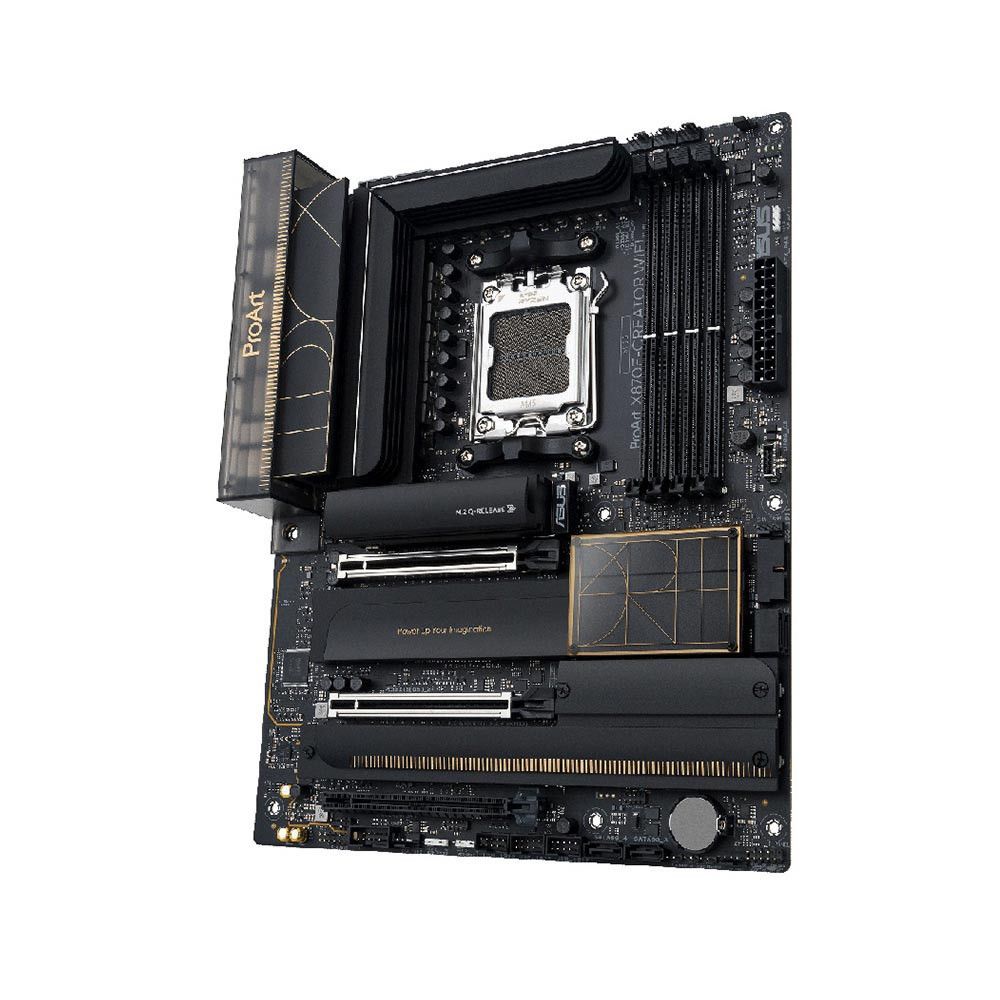

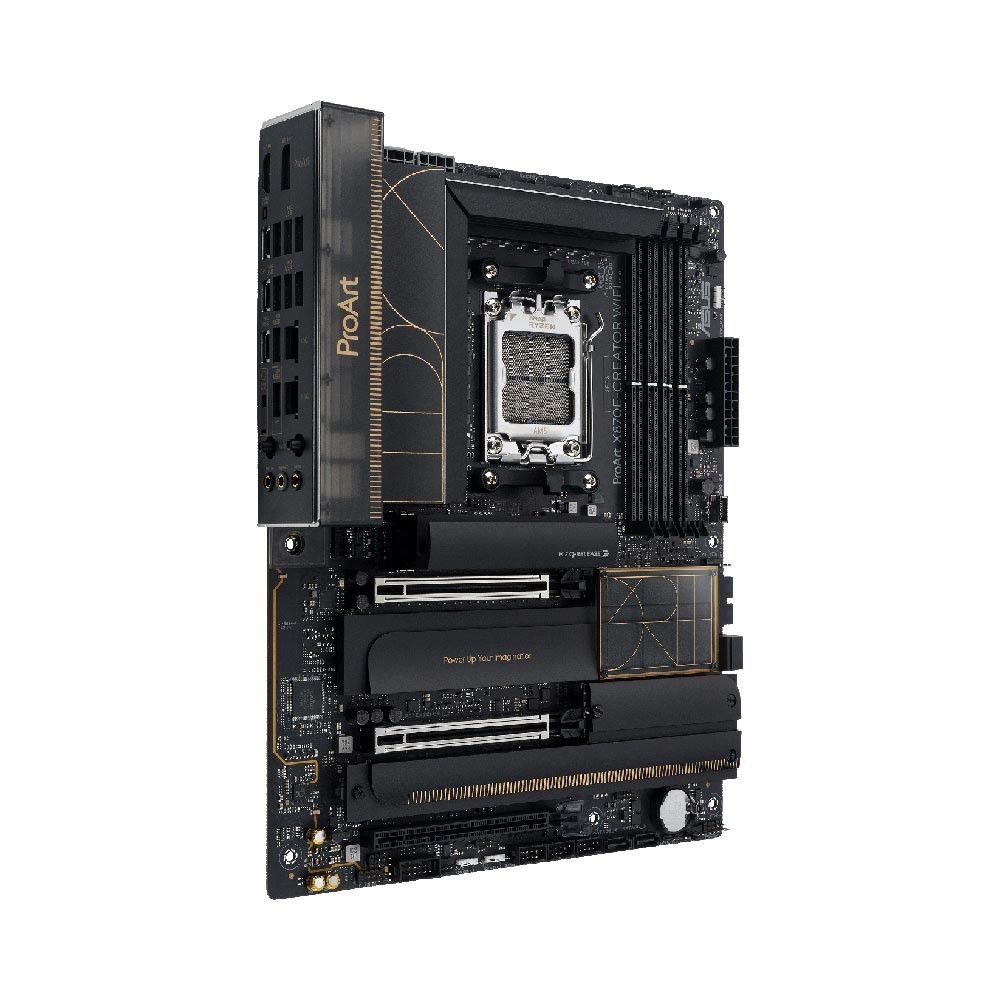

| Model | ProArt X870E-Creator WiFi |
| CPU | AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors* |
| * Refer to https://www.asus.com/support/download-center/ for CPU support list. |
| Chipset | AMD X870E |
| Memory | 4 x DIMM slots, max. 192GB, DDR5 |
| Supports up to |
| 8000+MT/s(OC) with Ryzen™ 9000 Series Processors, |
| 8000+MT/s(OC) with Ryzen™ 8000 Series Processors, |
| 8000+MT/s(OC) with Ryzen™ 7000 Series Processors, |
| ECC and Non-ECC Un-buffered DIMM |
| Dual Channel Memory Architecture |
| Supports AMD Extended Profiles for Overclocking (EXPO™) |
| ASUS Enhanced Memory Profile (AEMP) |
| * Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list. |
| * Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function. |
| Graphics | 1 x HDMITM port** |
| 2 x USB4® (40Gbps) ports support USB Type-C® display outputs*** |
| * Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications. |
| ** Supports 4K@60Hz as specified in HDMI 2.1. |
| *** Supports max. 8K@60Hz as specified in DisplayPort 1.4. |
| **** Output at USB4_EC1 and USB4_EC2, each requires a USB-C® to DisplayPort adapter cable. VGA resolution support depends on processors' or graphic cards' resolution. |
| Expansion Slots | AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors* |
| 2 x PCIe 5.0 x16 slots (support x16 or x8/x8 modes)** |
| AMD X870E Chipset |
| 1 x PCIe 4.0 x16 slot (supports x4 mode) |
| * Please check the PCIe bifurcation table in support site (https://www.asus.com/support/FAQ/1037507/). |
| ** PCIEX16(G5)_2 shares bandwidth with M.2_2 slot. |
| - To ensure compatibility of the device installed, please refer to |
| https://www.asus.com/support/ for the list of supported peripherals. |
| Storage | Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports* |
| AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors* |
| M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) |
| M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)** |
| AMD X870E Chipset |
| M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) |
| M.2_4 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) |
| 4 x SATA 6Gb/s ports |
| *AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1/5/10. RAID 5 Function is only supported by AMD Ryzen™ 9000series CPU. |
| ** PCIEX16(G5)_2 slot shares bandwidth with M.2_2. |
| Ethernet | 1 x Marvell® AQtion 10Gb Ethernet |
| 1 x Intel® 2.5Gb Ethernet |
| ASUS LANGuard |
| Wireless & Bluetooth | Wi-Fi 7* |
| 2x2 Wi-Fi 7 (802.11be) |
| Supports 2.4/5/6GHz frequency band** |
| Supports Wi-Fi 7 320MHz bandwidth, up to 6.5Gbps transfer rate. |
| Bluetooth® v5.4*** |
| *Wi-Fi features may vary depending on the operating system |
| For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E. |
| For Windows 10, please note that no driver is available, refer to the Wi-Fi chipset vendor's website for details. |
| ** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries. |
| *** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications. |
| USB | Rear USB (Total 11 ports) |
| 2 x USB4® (40Gbps//20Gbps) port(s) (2 x USB Type-C®) |
| 1 x USB 20Gbps port(s) (1 x USB Type-C®) |
| 7 x USB 10Gbps port(s) (7 x Type-A) |
| 1 x USB 2.0 port (1 x Type-A) |
| Front USB (Total 9 ports) |
| 1 x USB 20Gbps connector (supports USB Type-C® with up to 30W PD/QC4+)** |
| 1 x USB 5Gbps header(s) support(s) 2 additional USB 5Gbps ports |
| 3 x USB 2.0 headers support 6 additional USB 2.0 ports |
| * USB Type-C® power delivery output: max. 5V/3.0A |
| ** USB Type-C®power delivery output: 5V/9V max. 3.0A, 12V max 2.5A, 15V max. 2.0A |
| Audio | Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC* |
| - Impedance sense for front and rear headphone outputs |
| - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers |
| - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking |
| - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) |
| - Supports up to 32-Bit/192 kHz playback* |
| Audio Features |
| - Audio Shielding |
| - Premium audio capacitors |
| - Dedicated audio PCB layers |
| - Unique de-pop circuit |
| * Due to limitations in HDA bandwidth, |
| 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio. |
| ** A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |

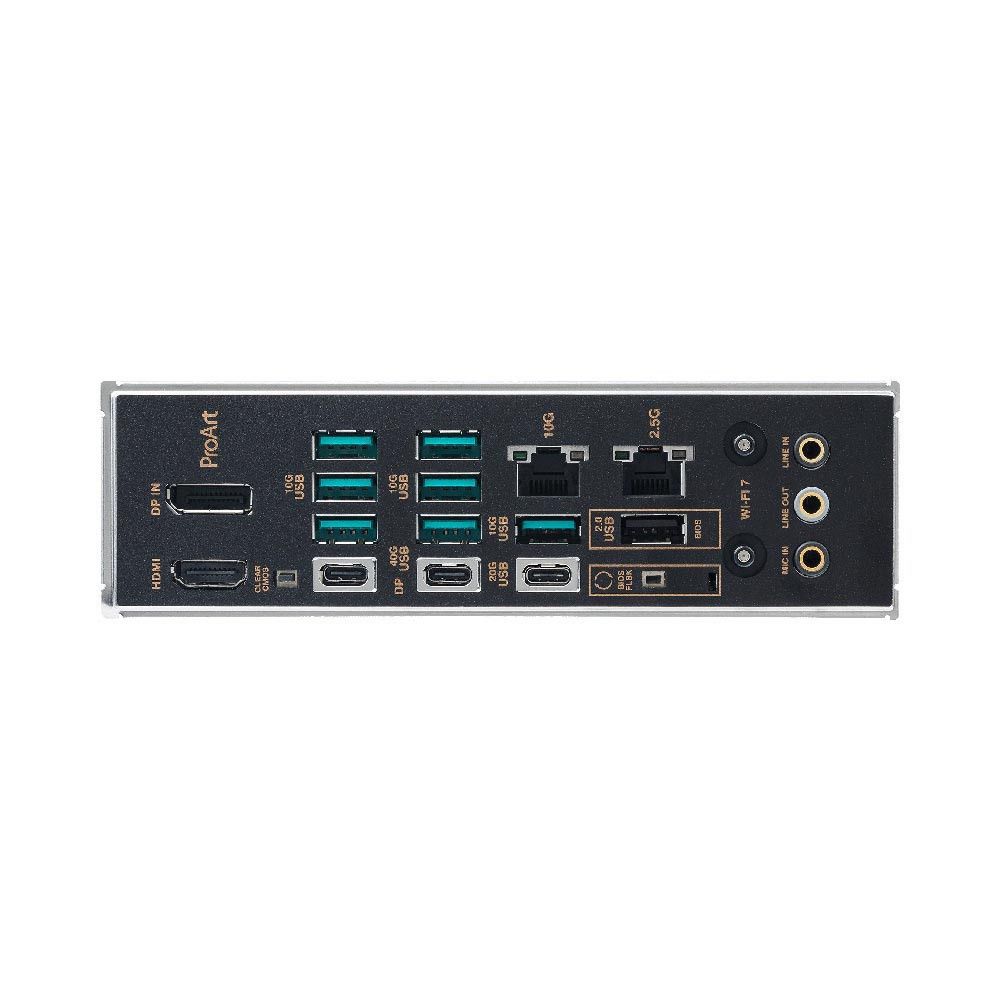

| Back Panel I/O Ports | 2 x USB4® (40Gbps) port(s) (2 x USB Type-C®) |
| 1 x USB 20Gbps port (1 x USB Type-C®) |
| 7 x USB 10Gbps ports (7 x Type-A) |
| 1 x USB 2.0 port (1 x Type-A) |
| 1 x DisplayPort (Input only) |
| 1 x HDMITM port |
| 1 x Wi-Fi Module |
| 1 x Marvell® AQtion 10Gb Ethernet |
| 1 x Intel® 2.5Gb Ethernet |
| 3 x Audio jacks |
| 1 x BIOS FlashBack™ button |
| 1 x Clear CMOS button |
| Internal I/O Connectors | Fan and Cooling related |
| 1 x 4-pin CPU Fan header |
| 1 x 4-pin CPU OPT Fan header |
| 1 x 4-pin AIO Pump header |
| 5 x 4-pin Chassis Fan headers |
| Power related |
| 1 x 24-pin Main Power connector |
| 2 x 8-pin +12V CPU Power connector |
| Storage related |
| 4 x M.2 slots (Key M) |
| 4 x SATA 6Gb/s ports |
| USB |
| 1 x USB 20Gbps connector (supports USB Type-C® with up to 30W PD/QC4+) |
| 1 x USB 5Gbps header(s) support(s) 2 additional USB 5Gbps ports |
| 3 x USB 2.0 headers support 6 additional USB 2.0 ports |
| Miscellaneous |
| 3 x Addressable Gen 2 headers |
| 1 x Chassis Intrusion header |
| 1 x COM Port header |
| 1 x CPU Over Voltage jumper |
| 1 x Front Panel Audio header (F_AUDIO) |
| 1 x 10-1 pin System Panel header |
| 1 x Thermal Sensor header |
| Special Features | ASUS 5X PROTECTION III |
| - DIGI+ VRM (- Digital power design) |
| - Enhanced DRAM Overcurrent Protection |
| - ESD Guards |
| - LANGuard |
| - Overvoltage Protection |
| - Safeslot |
| - Stainless-Steel Back I/O |
| ASUS Q-Design |
| - M.2 Q-Latch |
| - M.2 Q-Release |
| - M.2 Q-Slide |
| - PCIe Slot Q-Release Slim (with PCIe SafeSlot) |
| - Q-Antenna |
| - Q-Connector |
| - Q-DIMM |
| - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) |
| - Q-Slot |
| ASUS Thermal Solution |
| - M.2 heatsink backplate |
| - M.2 heatsinks |
| - VRM heatsink design ASUS EZ DIY |
| - BIOS FlashBack™ button |
| - BIOS FlashBack™ LED |
| - ProCool |
| - Pre-mounted I/O shield |
| - SafeSlot |
| - SafeDIMM |
| AURA Sync |
| - Addressable Gen 2 headers |
| Bespoke Motherboard Design & Business Focused Features |
| - 24/7 Reliability |
| - Overcurrent Protection |
| Front Panel USB 20Gbps with Quick Charge 4+ Support |
| - Support: up to 30W fast charging and USB Wattage Watcher |
| - Output: 5V/9V max. 3.0A, 12V max 2.5A, 15V max2.0A |
| - Compatible with PD3.0 |
| Software Features | ASUS Exclusive Software |
| Armoury Crate |
| - Aura Creator |
| - Aura Sync |
| - Fan Xpert 4 with AI Cooling II |
| - Power Saving |
| ASUS DriverHub |
| ASUS GlideX |
| USB Wattage Watcher |
| TurboV Core |
| ASUS CPU-Z |
| ProArt Creator Hub |
| CreationFirst |
| Adobe Creative Cloud (Free Trial) |
| Norton 360 Deluxe (60 Days Free Trial) |
| WinRAR (40 Days Free Trial) |
| UEFI BIOS |
| ASUS EZ DIY |
| - ASUS CrashFree BIOS 3 |
| - ASUS EZ Flash 3 |
| - ASUS UEFI BIOS EZ Mode |
| FlexKey |
| Remote Management Features | IT Management software supported |
| - ASUS Control Center Express(ACCE) |
| BIOS | 256Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |

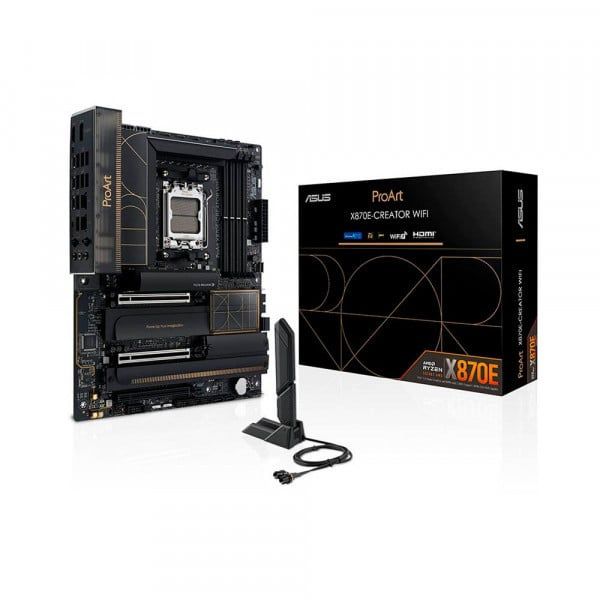

| Accessories | Cables |
| 1 x DisplayPort cable |
| 4 x SATA 6Gb/s cables |
| Additional Cooling Kit |
| 1 x Thermal pad for M.2 22110 |
| Miscellaneous |
| 1 x ASUS WiFi Q-Antenna |
| 1 x Q-connector |
| 1 x M.2 Q-Latch package |
| 1 x M.2 Q-Latch Q-Slide package for M.2 backplate |
| 2 x Rubber Packages for M.2 |
| 1 x ProArt ruler |
| Documentation |
| 1 x Quick start guide |
| 1 x ACC Express Activation Key Card |
| Operating System | Windows® 11, Windows® 10 64-bit |
| Form Factor | ATX Form Factor |
| 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
