Hãng sản xuất | ASUS |
Series | TUF GAMING |

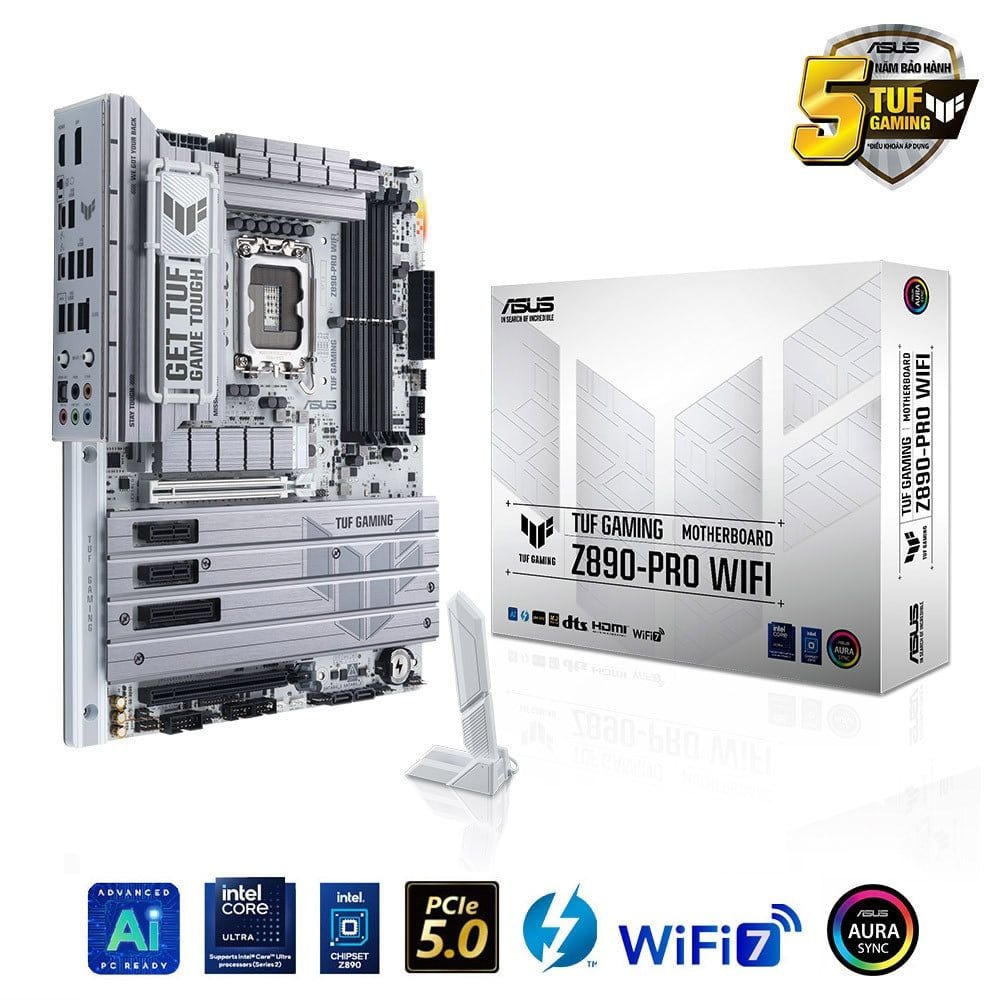

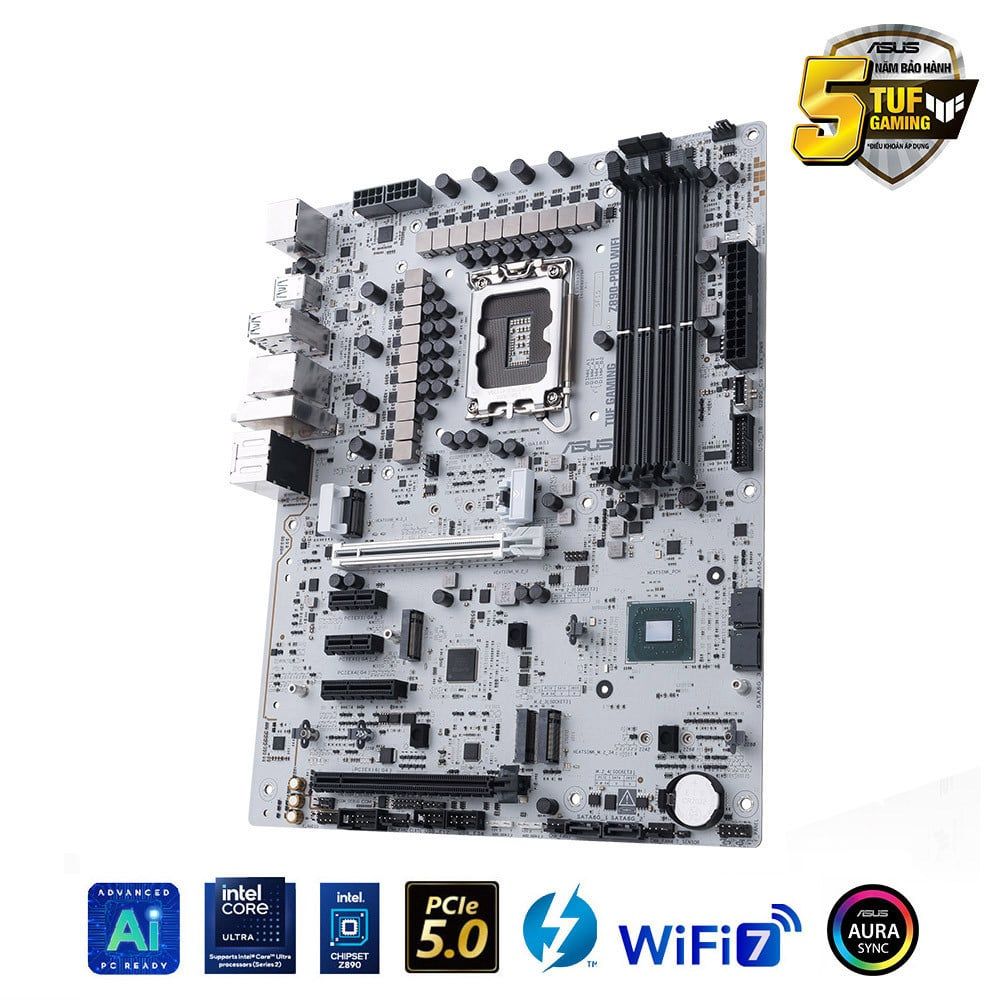

Model | TUF GAMING Z890-PRO WIFI (90MB1IR0-M0EAY0) |
CPU | Support Intel Core Ultra Processors(series 2), LGA1851* |
Chipset | Intel Z890 Chipset |
Memory | 4 x DIMM slots, max. 192GB, DDR5 |
Support up to 8600+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)* |
Dual channel memory architecture |
DIMM Fit |
Graphics | 1 x DisplayPort** |
1 x HDMI port*** |
2 x Intel Thunderbolt 4 ports (USB Type-C) support DisplayPort and Thunderbolt video outputs**** |
* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. |
** Supports max. 4K@60Hz as specified in DisplayPort 1.4. |
*** Supports 4K@60Hz as specified in HDMI 2.1. |
****Supports up to 8K@60Hz x1 with DSC or 4K@60Hz x 2, maximum total bandwidth up to 23.8Gbps or 16Gbps/16Gbps, for resolution support please check DisplayPort 2.1 specs. |
Expansion Slots | Intel Core Ultra Processors(series 2)* |
1 x PCIe 5.0 x16 slot |
Intel Z890 Chipset |
1 x PCIe 4.0 x16 slot (supports x4 mode) |
1 x PCIe 4.0 x4 slot |
2 x PCIe 4.0 x1 slots |
* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/). |
- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals. |
Storage | Supports 4 x M.2 slots and 4 x SATA 6Gb/s ports* |
Intel Core Ultra Processors(series 2)* |
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) |
M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) |
Intel Z890 Chipset |
M.2_3 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode) |
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes) |
4 x SATA 6Gb/s ports |
* Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only support RAID 0/1/5. |
Ethernet | 1 x Intel 2.5Gb Ethernet |
TUF LANGuard |
Wireless & Bluetooth | Wi-Fi 7* |
2x2 Wi-Fi 7 (802.11be) |
Supports 2.4/5/6GHz frequency band** |
Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate. |
Bluetooth v5.4*** |
*Wi-Fi features may vary depending on the operating system |
For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E. |
For Windows 10, please note that no driver is available , please refer to the Wi-Fi chipset vendor's website for details. |
** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries. |
*** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications. |
USB | Rear USB (Total 8 ports) |
2 x Thunderbolt 4 ports (2 x USB Type-C) |
6 x USB 10Gbps ports (6 x Type-A) |
Front USB (Total 7 ports) |
1 x USB 20Gbps (supports USB Type-C with up to 30W PD/PPS Fast-charge )* |
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports |
2 x USB 2.0 headers support 4 additional USB 2.0 ports |
* USB Type-C power delivery output: 5V/9V max. 3A, 12V max 2.5A, 15V max. 2.0A |
Audio | Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC* |
- Impedance sense for front and rear headphone outputs |
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers |
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking |
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) |
- Supports up to 32-Bit/192 kHz playback* |
Audio Features |
- Audio Shielding |
- Rear optical S/PDIF out port |
- Premium audio capacitors |
- Dedicated audio PCB layers |
- Audio cover |
- Unique de-pop circuit |
* Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio. |
Back Panel I/O Ports | 2 x Thunderbolt 4 USB Type-C ports |
6 x USB 10Gbps ports (6 x Type-A) |
1 x DisplayPort |
1 x HDMI port |
1 x Wi-Fi module |
1 x Intel 2.5Gb Ethernet port |
5 x Audio jacks |
1 x Optical S/PDIF out port |
1 x BIOS FlashBack button |
Internal I/O Connectors | Fan and Cooling Related |
1 x 4-pin CPU Fan header |
1 x 4-pin CPU OPT Fan header |
1 x 4-pin AIO Pump header |
4 x 4-pin Chassis Fan headers |
Power Related |
1 x 24-pin Main Power connector |
2 x 8-pin +12V CPU Power connector |
Storage Related |
4 x M.2 slots (Key M) |
4 x SATA 6Gb/s ports |
USB |
1 x USB 20Gbps connector (supports USB Type-C ) |
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports |
2 x USB 2.0 headers support 4 additional USB 2.0 ports |
Miscellaneous |
3 x Addressable Gen 2 headers |
1 x Clear CMOS header |
1 x Chassis Intrusion header |
1 x COM Port header |
1 x Front Panel Audio header (F_AUDIO) |
1 x 10-1 pin Front System Panel header |
1 x Thermal Sensor header |
1 x Thunderbolt (USB4) header |
BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
Operating System | Windows 11 (22H2 & later) |
Form Factor | ATX Form Factor |
30.5 cm x 24.4 cm |
