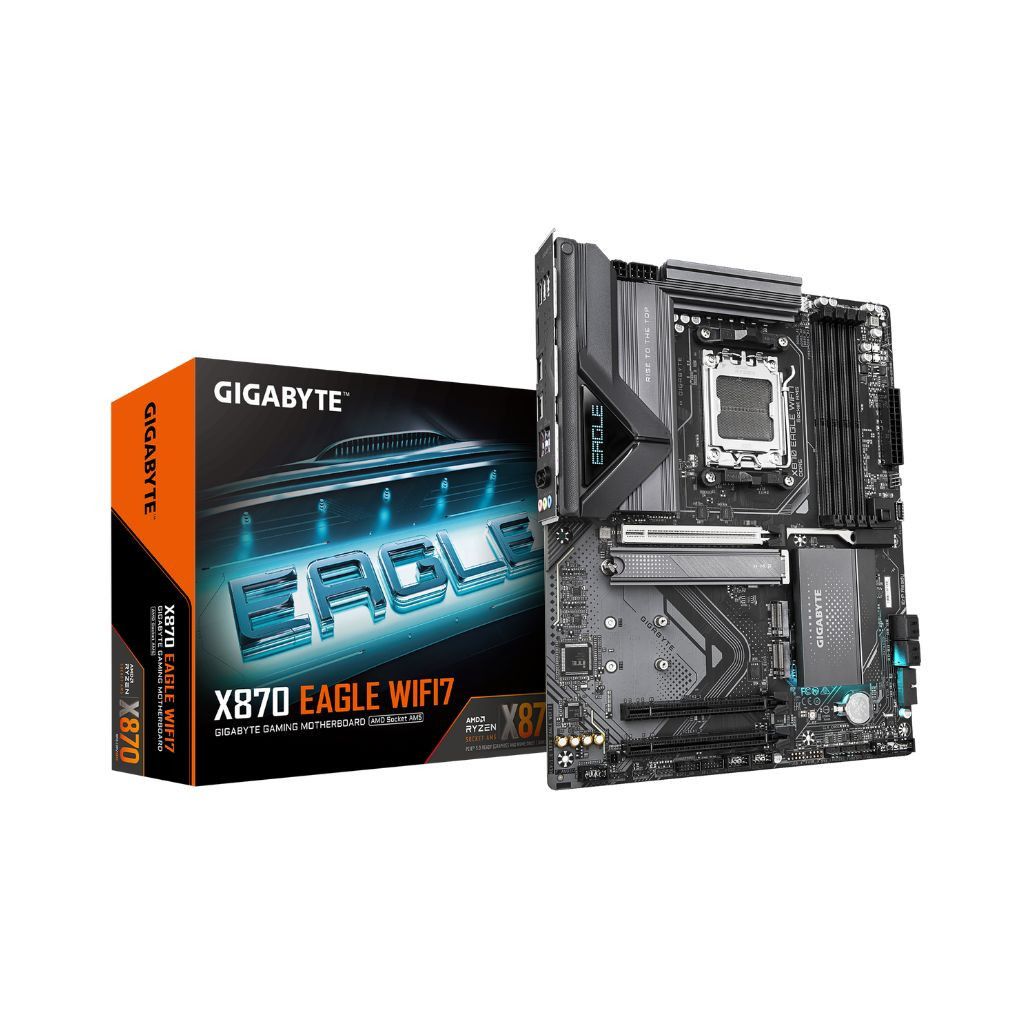

Mainboard GIGABYTE X870 EAGLE WIFI 7 DDR5

Tình trạng: Còn hàng Thương hiệu: Gigabyte
Giá: 7,299,000₫ 7,999,000₫ -9%
Số lượng:
Chính sách bán hàng
Cam kết 100% chính hãng Cam kết 100% chính hãng
Hỗ trợ 24/7 Hỗ trợ 24/7
Thông tin thêm
Hoàn tiền
111%
nếu hàng giả Hoàn tiền 111% nếu hàng giả
Mở hộp
kiểm tra
nhận hàng Mở hộp kiểm tra nhận hàng
Đổi trả trong
7 ngày Đổi trả trong 7 ngày

THƯỜNG ĐƯỢC MUA CÙNG

Mô tả sản phẩm

 Mainboard Form Factor: ATX
 Chipset: AMD X870 Chipset
 Socket CPU: LGA AM5
 CPU Hỗ trợ: AMD Ryzen 7000, 8000, 9000 Series
 RAM Hỗ trợ: 4x DDR5 DIMM Slot
Bảo Hành: 36 Tháng

THÔNG SỐ KỸ THUẬT

Nhà sản xuấtGigabyte
ModelX870-EAGLE-WIFI7
CPUAMD Socket AM5, support for:
AMD Ryzen™ 9000 Series Processors/
AMD Ryzen™ 8000 Series Processors/
AMD Ryzen™ 7000 Series Processors
(Go to GIGABYTE's website for the latest CPU support list.)
ChipsetAMD X870
Bộ nhớ

Support for DDR5 8000(OC)/7800(OC)/7600(OC)/7200(OC)

/7000(OC)/6800(OC)/6666(OC)/6600(OC)/6400(OC)/6200(OC)/ 6000(OC)/5600(OC)/5200/4800/4400 MT/s memory modules 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules

Đồ họa tích hợp     Integrated Graphics Processor with AMD Radeon™ Graphics support+ASMedia USB4® Controller:
- 2 x USB4® USB Type-C® ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@240 Hz
* Support for DisplayPort 1.4 version and HDR.
     Integrated Graphics Processor with AMD Radeon™ Graphics support:
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version, HDCP 2.3, and HDR.
** Support native HDMI 2.1 TMDS compatible ports.
Âm thanhRealtek® Audio CODEC
High Definition Audio 2/4/5.1/7.1-channel
Mạng LANChip Realtek® 2.5GbE LAN (2.5 Gbps/1 Gbps/100 Mbps)
Kết nối không dâyRealtek® Wi-Fi 7 MT7925 (PCB rev. 1.0)
- WIFI 802.11a, b, g, n, ac, ax, supporting 2.4/5 GHz carrier frequency bands
- BLUETOOTH 5.4
- Support for 11be 160MHz wireless standard
Khe cắm mở rộng1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
AMD Ryzen™ 900/7000 Series Processors support PCIe 5.0 x16 mode
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Chipset:
- 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1/2)
Lưu trữ1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:
AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
AMD Ryzen™ 8000 Series- Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen™ 8000 Series- Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x2 SSDs
1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSDs
* The M2B_SB connector shares bandwidth with the M2C_SB connector. The M2C_SB connector will become unavailable when an PCIe 4.0 x4 SSD is installed in the M2B_SB connector.
4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
* RAID 5 is only available on AMD Ryzen™ 9000 Series Processors.
RAID 0, RAID 1, and RAID 10 support for SATA storage devices
USBCPU+ASMedia USB4® controller:
- 2 x USB4® USB Type-C® ports on the back panel
CPU:
- 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
- 1 x USB 3.2 Gen 1 port on the back panel
Chipset+2 USB 2.0 Hubs:
- 4 x USB 2.0/1.1 ports (4 ports on the back panel)
Chipset:
- 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header
- 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
- 4 x USB 2.0/1.1 ports available through the internal USB headers
Internal I/O Connectors1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x 4-pin ATX 12V power connector
1 x CPU fan header
1 x CPU fan/water cooling pump header
4 x system fan headers
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
4 x SATA 6Gb/s connectors
3 x M.2 Socket 3 connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 2x2 support
1 x USB 3.2 Gen 1 header
4 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x reset jumper
1 x Clear CMOS jumper

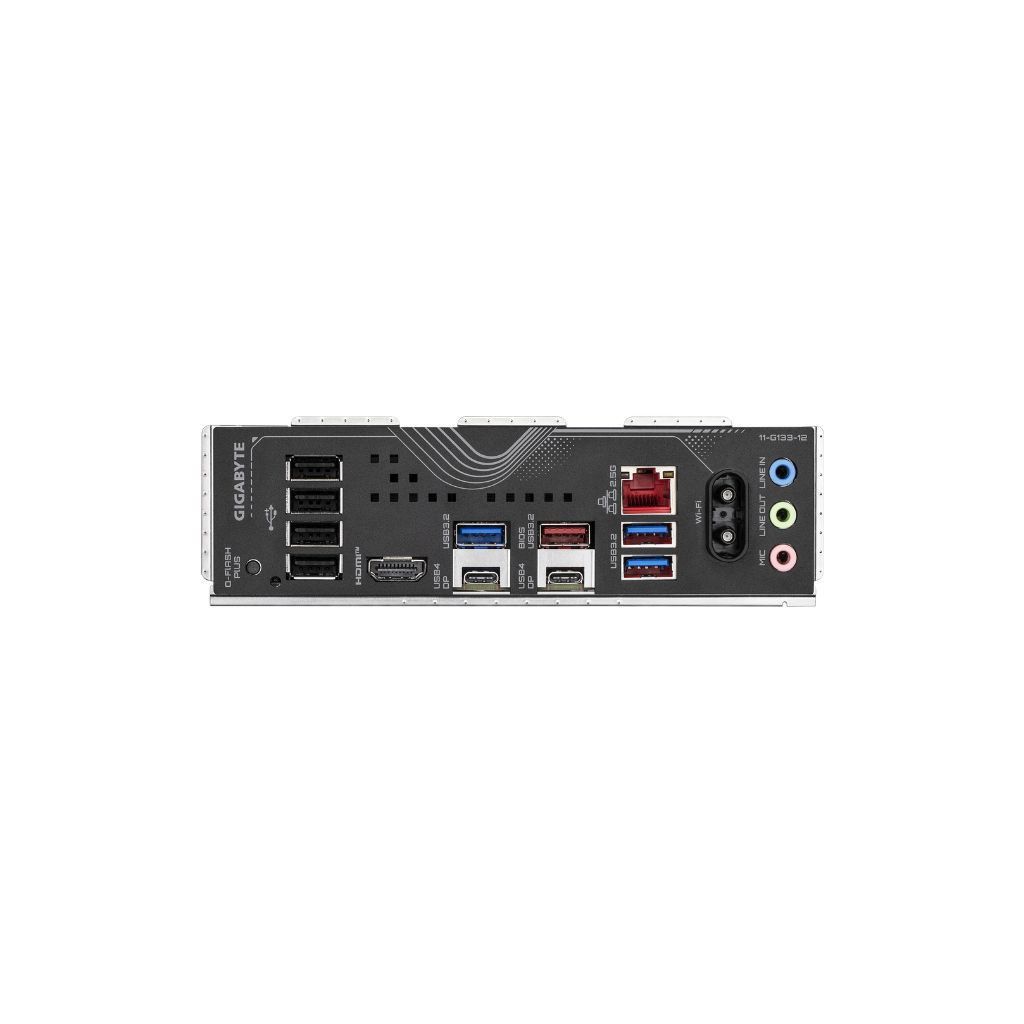

Back Panel1 x Q-Flash Plus button
2 x antenna connectors (2T2R)
1 x HDMI port (Note)
2 x USB4® USB Type-C® ports (DisplayPort )
1 x USB 3.2 Gen 2 Type-A port (red)
3 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks
BIOS1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
FormATX Form Factor; 30.5cm x 24.4cm
