Sản Phẩm | Mainboard |
Thương hiệu | GIGABYTE |

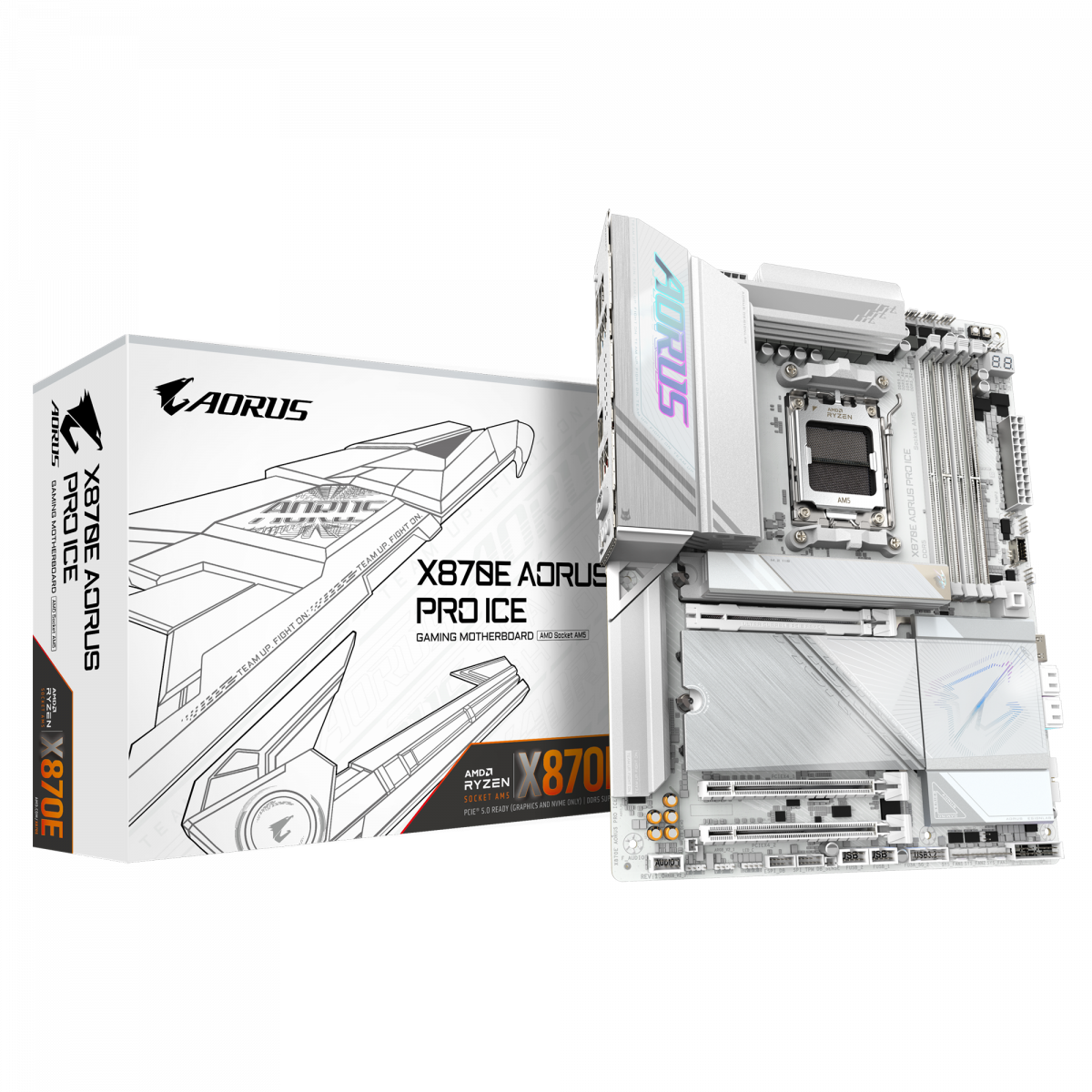

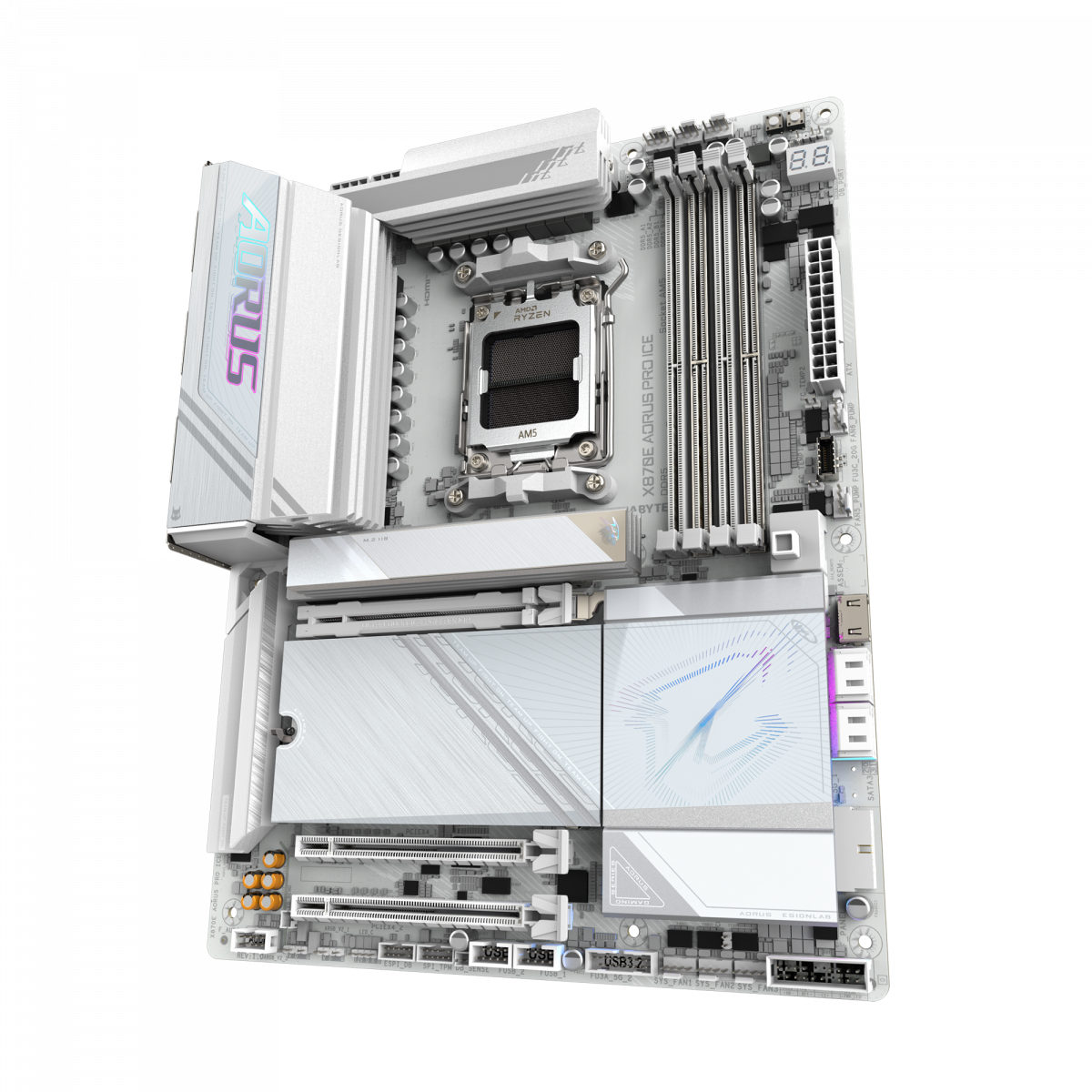

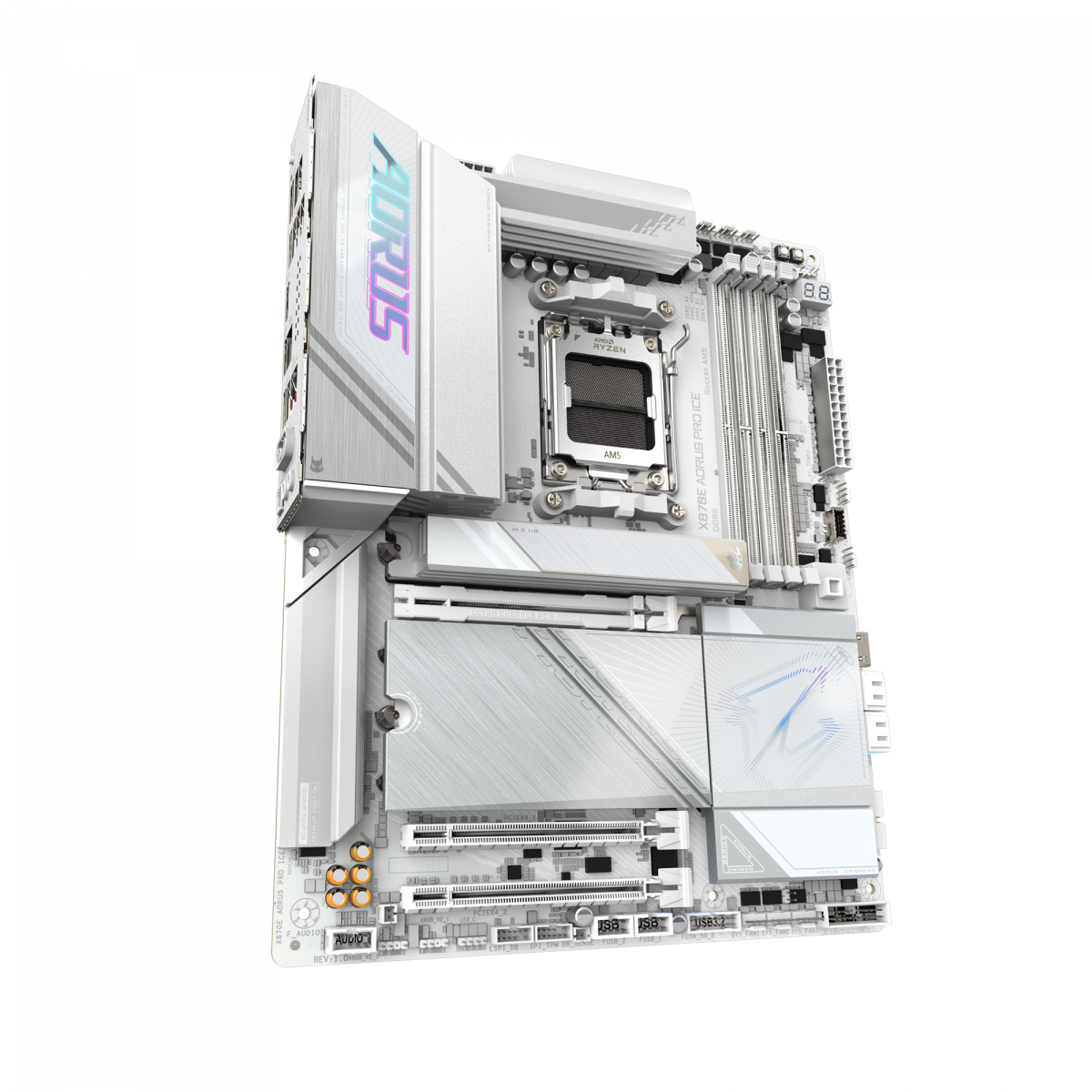

Model | X870E AORUS PRO ICE |
CPU | AMD Socket AM5, support for: |
AMD Ryzen™ 9000 Series Processors/ |
AMD Ryzen™ 8000 Series Processors/ |
AMD Ryzen™ 7000 Series Processors |
(Go to GIGABYTE's website for the latest CPU support list.) |
Chipset | AMD X870E |
Memory | Support for DDR5 8000(OC)/7800(OC)/7600(OC)/7200(OC) /7000(OC)/6800(OC)/6666(OC)/6600(OC)/6400(OC)/6200(OC)/ 6000(OC)/5600(OC)/5200/4800/4400 MT/s memory modules |
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity)of system memory |
Dual channel memory architecture |
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules |
Support forAMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules |
(The CPU andmemory configurationmay affect the supportedmemory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.) |
Onboard Graphics | Integrated Graphics Processor with AMD Radeon™ Graphics support+ASMedia USB4® Controller: |
- 2 x USB4® USB Type-C® ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@240 Hz |
* Support for DisplayPort 1.4 version and HDR. |
|
Integrated Graphics Processor with AMD Radeon™ Graphics support: |
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz |
* Support for HDMI 2.1 version, HDCP 2.3, and HDR. |
** Support for native HDMI 2.1 TMDS compatible ports. |
|
- 1 x front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz |
* Support for HDMI 1.4 version |
|
(Graphics specifications may vary depending on CPU support.) |
Expansion Slots | 1x PCI Express x16 slot (PCIEX16), integrated in the CPU: |
AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode |
* The M2B_CPU and M2C_CPU connectors share bandwidth with the PCIEX16 slot. |
|
When theM2B_CPU orM2C_CPU connector is populated, the PCIEX16 slot operates at up to x8 mode. |
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode |
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode |
(The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.) |
|
Chipset: |
- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4_1) |
- 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4_2) |
Storage Interface | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs: |
AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs |
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs |
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs |
|
2 x M.2 connectors (M2B_CPU, M2C_CPU), integrated in the CPU, supporting |
Socket 3, M key, type 22110/2280 SSDs: |
AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs |
* The M2B_CPU and M2C_CPU connectors will become unavailable when using the |
|
AMD Ryzen™ 8000 Series-Phoenix 1/Phoenix 2 Processors. |
1 x M.2 connector (M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs |
4 x SATA 6Gb/s connectors |
RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices |
* RAID 5 is only available on AMD Ryzen™ 9000 Series Processors. |
|
RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
LAN | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
Wireless Communication | Qualcomm® Wi-Fi 7 QCNCM865 |
- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands |
- BLUETOOTH 5.3 |
- Support for 11be 320MHz wireless standard |
(Actual data rate may vary depending on environment and equipment.) |
* Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.) |
** Wi-Fi 7 channels on 6 GHz band availability depends on individual country's regulations. |
USB | CPU+ASMedia USB4® controller: |
- 2 x USB4® USB Type-C® ports on the back panel |
CPU: |
- 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel |
Chipset: |
- 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header |
- 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel |
- 8 x USB 3.2 Gen 1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) |
- 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers) |
Audio | Realtek® ALC1220 CODEC |
* The back panel line out jack supports DSD audio. |
|
High Definition Audio |
2/4/5.1/7.1-channel |
* You can change the functionality of an audio jack using the audio software. To configure |
|
7.1-channel audio, access the audio software for audio settings. |
Support for S/PDIF Out |

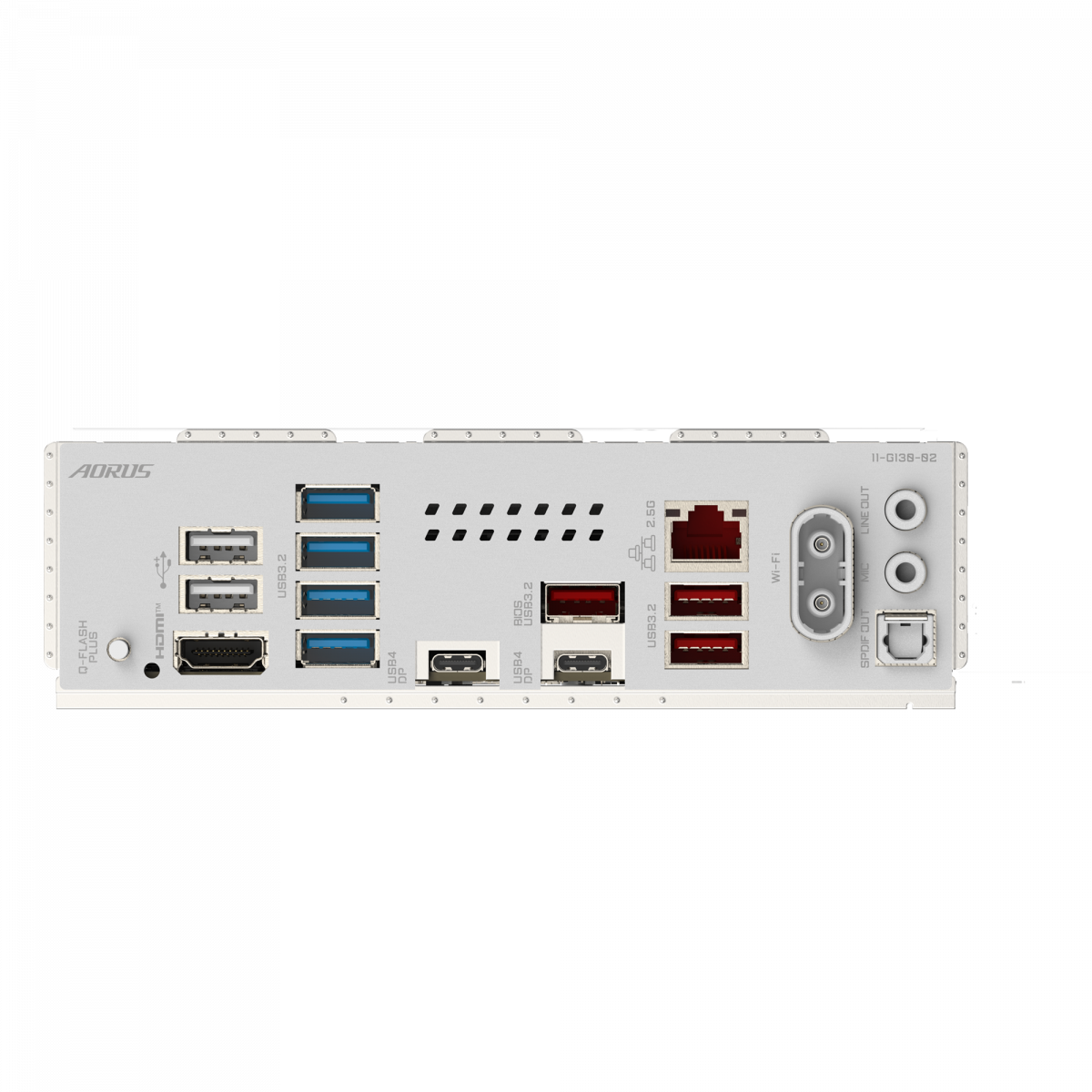

Back Panel I/O Ports | 1 x Q-Flash Plus button |
2 x USB 2.0/1.1 ports |
1 x HDMI port (Note) |
4 x USB 3.2 Gen 1 ports |
2 x USB4® USB Type-C® port (DisplayPort (Note)) |
3 x USB 3.2 Gen 2 Type-A ports (red) |
1 x RJ-45 port |
2 x SMA antenna connectors (2T2R) |
1 x optical S/PDIF Out connector |
2 x audio jacks |
Internal I/O Connectors | 1 x 24-pin ATX main power connector |
2 x 8-pin ATX 12V power connectors |
1 x CPU fan header |
1 x CPU fan/water cooling pump header |
4 x system fan headers |
2 x system fan/water cooling pump headers |
3 x addressable RGB Gen2 LED strip headers |
1 x RGB LED strip header |
4 x SATA 6Gb/s connectors |
4 x M.2 Socket 3 connectors |
1 x front panel header |
1 x front panel audio header |
1 x USB Type-C® header, with USB 3.2 Gen 2x2 support |
2 x USB 3.2 Gen 1 headers |
2 x USB 2.0/1.1 headers |
1 x noise detection header |
1 x HDMI port (Note) |
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI2.0/GC-TPM2.0 SPI V2 module only) |
1 x power button |
1 x reset button |
2 x temperature sensor headers |
1 x reset jumper |
1 x Clear CMOS jumper |
Unique Features | Support for GIGABYTE Control Center (GCC) |
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. |
|
Support for Q-Flash |
Support for Q-Flash Plus |
Support Smart Backup |
I/O Controller | iTE® I/O Controller Chip |
BIOS | 1 x 256 Mbit flash |
Use of licensed AMI UEFI BIOS |
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
H/W Monitoring | Voltage detection |
Temperature detection |
Fan speed detection |
Water cooling flow rate detection |
Fan fail warning |
Fan speed control |
* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install. |
|
Noise detection |
Bundle Software | Norton® Internet Security (OEM version) |
LAN bandwidth management software |
|
Operating System | Windows® 11, Windows® 10 64-bit |
Form Factor | ATX Form Factor; 30.5cm x 24.4cm |
