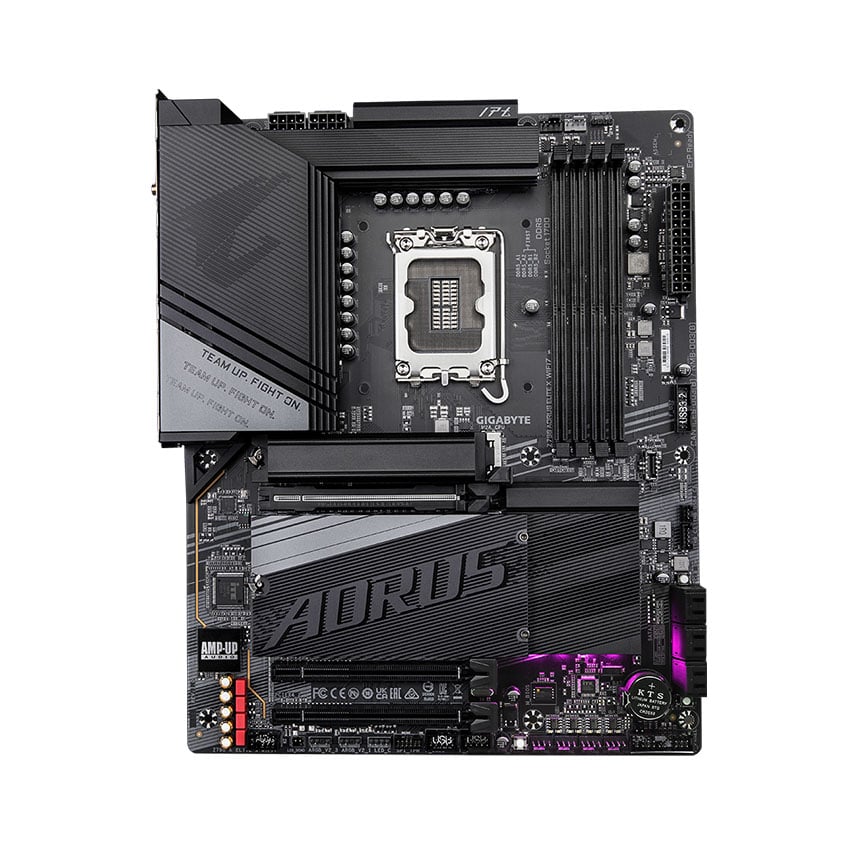

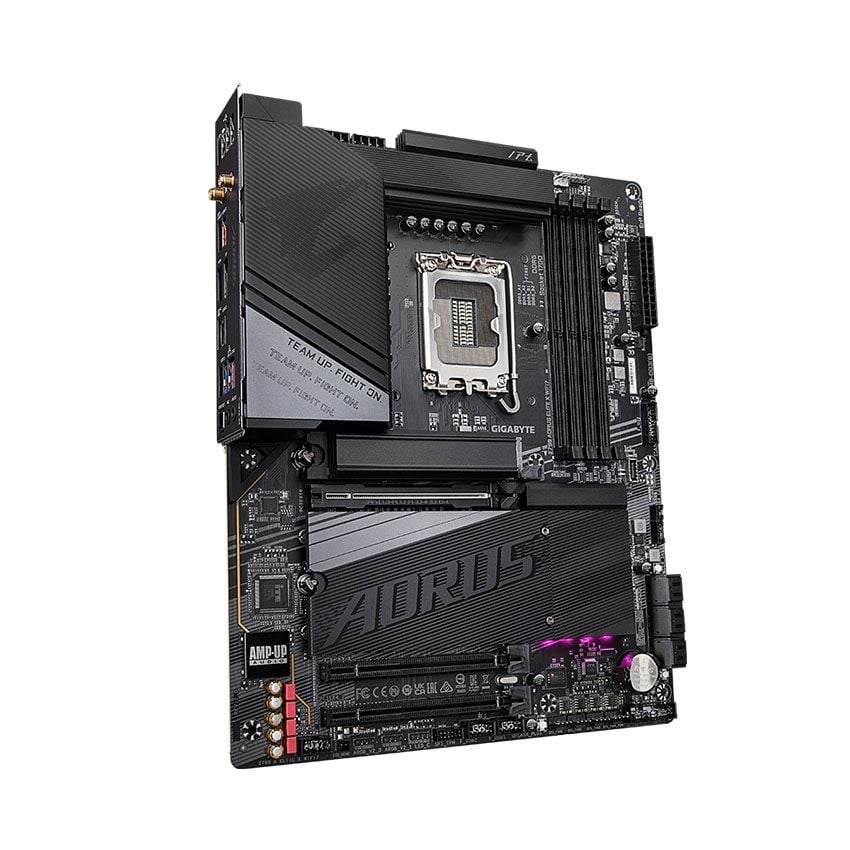

Sản phẩm | Bo mạch chủ |
Tên Hãng | Gigabyte |
Model | Z790 A ELITE X WIFI 7 DDR5 |
CPU hỗ trợ | LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors |
Chipset | Z790 |
RAM hỗ trợ | Support for DDR5 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules |
4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) |
Khe cắm mở rộng | CPU: |
- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) |
|
* For optimum performance, if only one PCI Express graphics card is to be installed, |
|
|
be sure to install it in the PCIEX16 slot. |
Chipset: |
- 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 |
(PCIEX4_1/PCIEX4_2) |
Ổ cứng hỗ trợ | CPU: |
- 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD |
support) (M2A_CPU) |
Chipset: |
- 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD |
support) (M2P_SB, M2Q_SB) |
- 1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4 |
SSD support) (M2M_SB) |
- 6 x SATA 6Gb/s connectors |
RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices |
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
Cổng kết nối (Internal) | 1 x 24-pin ATX main power connector |
2 x 8-pin ATX 12V power connectors |
1 x CPU fan header |
1 x CPU fan/water cooling pump header |
3 x system fan headers |
1 x system fan/water cooling pump header |
3 x addressable RGB Gen2 LED strip headers |
1 x RGB LED strip header |
4 x M.2 Socket 3 connectors |
6 x SATA 6Gb/s connectors |
1 x front panel header |
1 x front panel audio header |
1 x USB Type-C® header, with USB 3.2 Gen 2 support |
1 x USB 3.2 Gen 1 header |
2 x USB 2.0/1.1 headers |
2 x Thunderbolt™ add-in card connectors |
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/ |
GC-TPM2.0 SPI V2 module only) |
1 x reset button |
1 x Q-Flash Plus button |
1 x Clear CMOS button |
1 x reset jumper |
1 x Clear CMOS jumper |

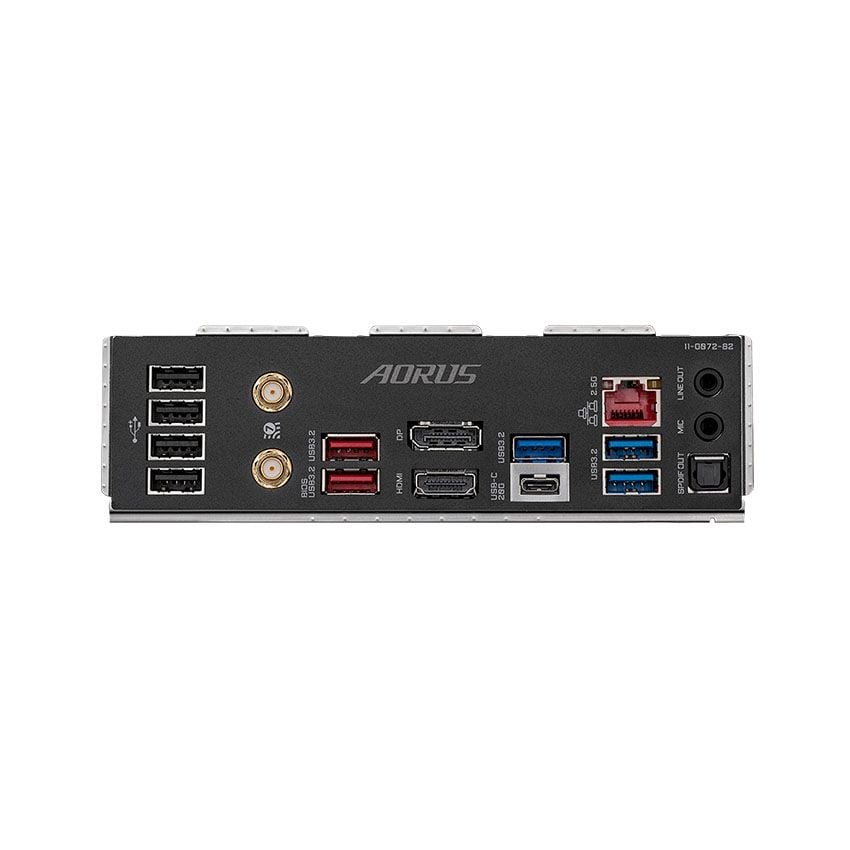

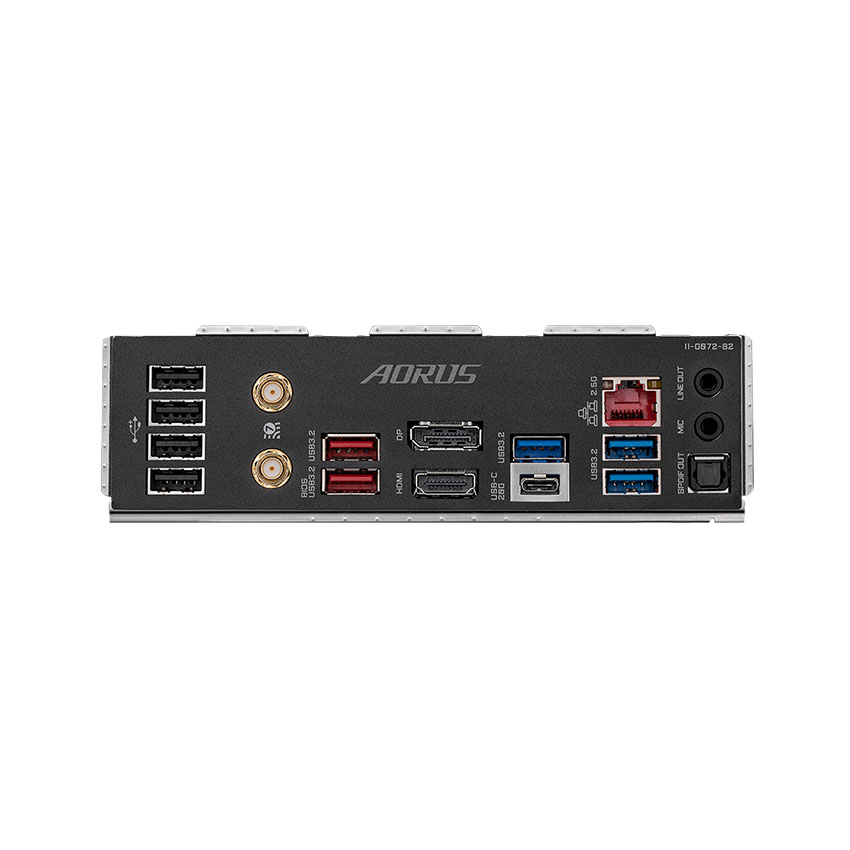

Cổng kết nối (Back Panel) | 1 x USB Type-C® port, with USB 3.2 Gen 2x2 support |
2 x USB 3.2 Gen 2 Type-A ports (red) |
3 x USB 3.2 Gen 1 ports |
4 x USB 2.0/1.1 ports |
2 x SMA antenna connectors (2T2R) jk |
1 x HDMI port |
1 x DisplayPort |
1 x RJ-45 port |
1 x optical S/PDIF Out connector |
2 x audio jacks |
LAN / Wireless | Intel® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
|
MediaTek Wi-Fi 7 MT7927, RZ738 (PCB rev. 1.0) |
- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands |
- BLUETOOTH 5.3 |
- Support for 11be 320MHz wireless standard |
(Actual data rate may vary depending on environment and equipment.) |
Kích cỡ | ATX Form Factor; 30.5cm x 24.4cm |
