CPU | LGA1851 socket: Support for Intel® Core™ Ultra Processors |
| L3 cache varies with CPU |
| * Please refer to "CPU Support List" for more information. |
Chipset | Intel® Z890 Express Chipset |
Bộ nhớ | Support for DDR5 8800(O.C) / 8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules. |
| 2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory |
Card đồ họa tích hợp | 1 x Intel® Thunderbolt™ 4 connector (USB4® USB Type-C® port), supporting DisplayPort and Thunderbolt™ video outputs |
| 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz |
| 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz |
Âm thanh | Realtek® Audio CODEC |
| High Definition Audio |
| 2/4/5.1/7.1-channel |
| Support for S/PDIF Out |
LAN | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless Communication module | Intel® Wi-Fi 7 BE202 (BE200NGW M) |
| 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands |
| BLUETOOTH 5.4 |
| Support for 11be 160MHz wireless standard |
Khe cắm mở rộng | CPU: |
| 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 |
| Giao diện lưu trữ | CPU: |
| - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU) |
| Chipset: |
| - 1 x M.2 connector on the back of the motherboard (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB) |
| - 2 x SATA 6Gb/s connectors |
| RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices |
| RAID 0 and RAID 1 support for SATA storage devices |
USB | CPU: |
| - 1 x USB4® USB Type-C® port on the back panel |
| Chipset: |
| - 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header |
| - 3 x USB 3.2 Gen 2 Type-A ports (red) on the back panel |
| - 2 x USB 2.0/1.1 ports available through the internal USB headers |
Kết nối I/O bên trong | 1 x 24-pin ATX main power connector |
| 1 x 8-pin ATX 12V power connector |
| 1 x CPU fan header |
| 1 x CPU fan/water cooling pump header |
| 1 x system fan header |
| 2 x addressable RGB Gen2 LED strip headers |
| 2 x M.2 Socket 3 connectors |
| 2 x SATA 6Gb/s connectors |
| 1 x front panel header |
| 1 x front panel audio header |
| 1 x speaker header |
| 1 x USB Type-C® header, with USB 3.2 Gen 2 support |
| 1 x USB 3.2 Gen 1 header |
| 1 x USB 2.0/1.1 header |
| 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) |
| 1 x reset jumper |
| 1 x Clear CMOS jumper |

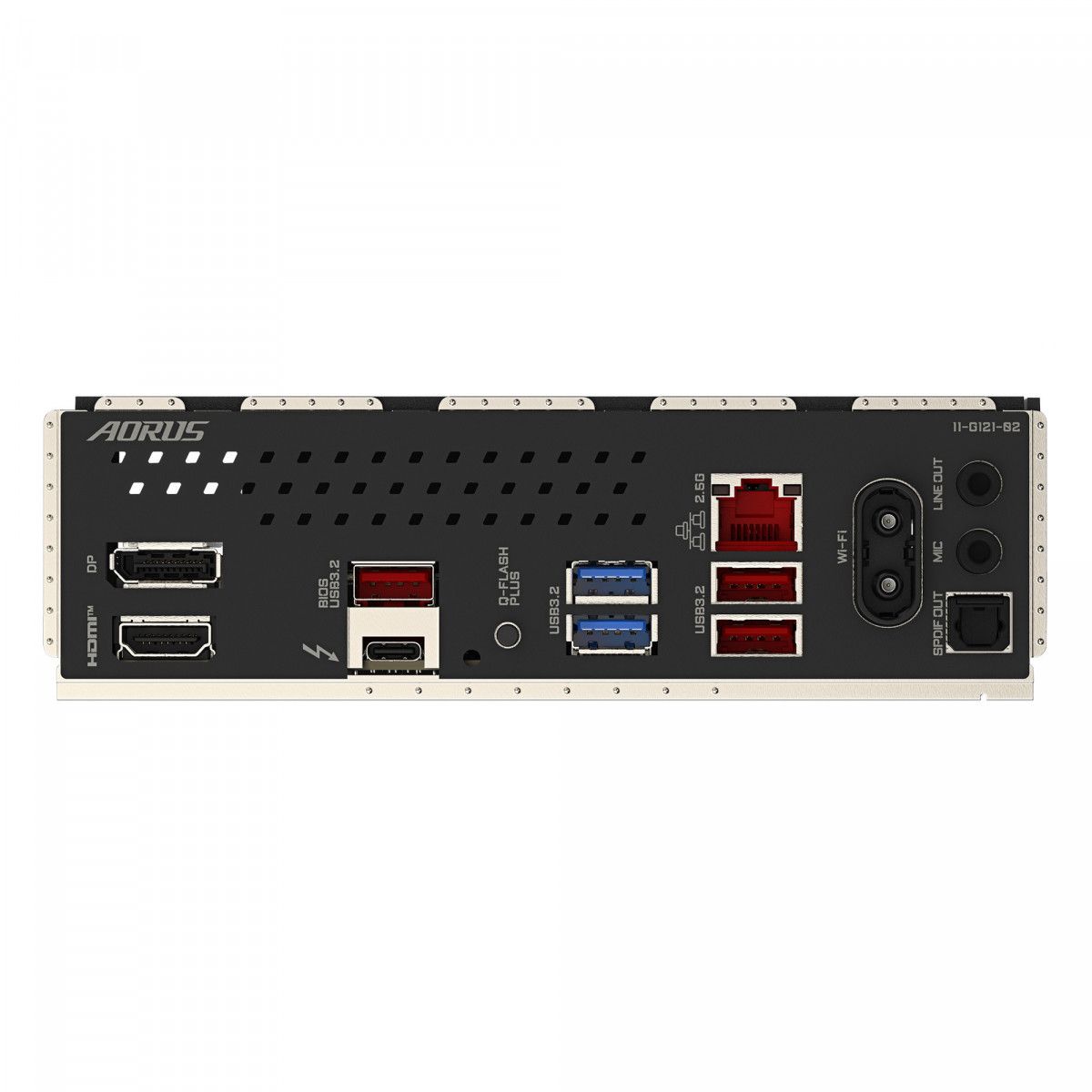

Kết nối bảng phía sau | 1 x DisplayPort (Note) |
| 1 x HDMI port (Note) |
| 1 x Intel® Thunderbolt™ 4 connector (USB4® USB Type-C® port) |
| 3 x USB 3.2 Gen 2 Type-A ports (red) |
| 2 x USB 3.2 Gen 1 ports |
| 1 x Q-Flash Plus button |
| 1 x RJ-45 port |
| 2 x antenna connectors (2T2R) |
| 2 x audio jacks |
Điều khiển I/O | iTE® I/O Controller Chip |
BIOS | 1 x 256 Mbit flash |
| Use of licensed AMI UEFI BIOS |
| PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
Hệ điều hành | Support for Windows 11 64-bit |
Kích thước | Mini-ITX Form Factor; 17.0cm x 17.0cm |
