Mainboard MSI MEG Z890 GODLIKE DDR5

Tình trạng: Hết hàng Thương hiệu: MSI
Giá: 40,999,000₫ 45,999,000₫ -11%
Số lượng:
Chính sách bán hàng
Cam kết 100% chính hãng Cam kết 100% chính hãng
Hỗ trợ 24/7 Hỗ trợ 24/7
Thông tin thêm
Hoàn tiền
111%
nếu hàng giả Hoàn tiền 111% nếu hàng giả
Mở hộp
kiểm tra
nhận hàng Mở hộp kiểm tra nhận hàng
Đổi trả trong
7 ngày Đổi trả trong 7 ngày

THƯỜNG ĐƯỢC MUA CÙNG

Mô tả sản phẩm

 Socket: LGA1851
 Hỗ trợ CPU Intel® Core™ Ultra processors (Series 2)
 Chipset: Z890
 Hỗ trợ RAM: 4 khe DDR5
 Chuẩn mainboard: E-ATX
 Intel® Wi-Fi 7 & Bluetooth® v5.4
Bảo Hành: 36 Tháng

THÔNG SỐ KỸ THUẬT

ChipsetINTEL Z890
CPUSupports Intel® Core™ Ultra Processors (Series 2)
LGA 1851
Memory4x DDR5 UDIMM, Maximum Memory Capacity 256GB
Memory Support 9200 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s
Max. overclocking frequency:
• 1DPC 1R Max speed up to 9200+ MT/s
• 1DPC 2R Max speed up to 7200+ MT/s
• 2DPC 1R Max speed up to 4800+ MT/s
• 2DPC 2R Max speed up to 4800+ MT/s

Supports Intel® POR Speed and JEDEC Speed
Supports Memory Overclocking and Intel® XMP 3.0
Supports Dual-Controller Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM

* The DIMM slots on this motherboard only have single-sided latches.
** Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/.
Onboard Graphics1x Type-C DisplayPort
Thundebolt™ 4 ports supporting DisplayPort 1.4 with HBR3 over USB Type-C, with a maximum resolution of 8K@60Hz*

* Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot2x PCI-E x16 slot
1x PCI-E x4 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)

* PCI_E1 slot will run at x8 speed and PCI_E2 slot will run at x4 speed when installing PCIe Gen 5 M.2 device in M2_6 slot.
** PCI_E3 will be unavailable when installing M.2 SSD in the M2_5 slot.
AudioRealtek® ALC4082 Codec + ESS9219Q Combo DAC/HPA
7.1-Channel USB High-Performance Audio
Supports S/PDIF output
Supports up to 32-Bit/384 kHz playback on front panel
Storage6x M.2
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices
M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260 devices
M.2_6 Source (From CPU+Chipset) supports up to PCIe 5.0 x4 + PCIe 4.0 x4 , supports 2280/2242 devices
4x SATA 6G

* M.2_6 default from chipset, can support PCIe 5.0 x4 (From CPU) by manual BIOS adjustment.
** PCI_E1 slot will run at x8 speed and PCI_E2 slot will run at x4 speed when installing PCIe Gen 5 M.2 device in the M2_6 slot.
*** Please refer to the manual for M.2 SSD heatsink restrictions.
RAIDSupports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
Onboard Thunderbolt1x Thunderbolt4 ports (Rear)
1x Thunderbolt4 ports (Front)
Support up to 40Gbps transfer rate with Thunderbolt devices
Support up to 20Gbps transfer rate with USB4 devices
Support up to 10Gbps transfer rate with USB 3.2 devices
Support up to 5V/3A,15W power charging
Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices
Support up to 8K display
USB4x USB 2.0 (Front)
4x USB 5Gbps Type A (Front)
8x USB 10Gbps Type A (Rear)
5x USB 10Gbps Type C (Rear)
1x USB 20Gbps Type C (Rear)
1x USB 20Gbps Type C (Front)
* To achieve USB PD 60W fast charging for JUSBC2, the PD_PWR1 connector needs to be connected to the power supply unit.
LAN1x Marvell® AQC113CS 10Gbps LAN
1x Intel® Killer™ E5000B 5G LAN
Internal IO1x Thunderbolt5 card connector(JTBT5, support RTD3)
1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x Power Connector(PCIE_PWR 8pin)
1x Front Type-C Quick Charge Connector(PD_PWR1)
1x CPU Fan
2x Combo Fan (Pump_Sys Fan)
7x System Fan
1x EZ Conn-header (JAF_2)
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Water Flow connector
1x Slow Mode Booting Jumper(JSLOW)
1x Front Audio (JAUD)
1x Tuning Controller connector(JDASH)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
V-check point
4x USB 2.0 ports
4x USB 5Gbps Type A ports
1x USB 20Gbps Type C ports
WIRELESS LAN & BLUETOOTHIntel® Killer™ BE1750x Wi-Fi 7
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax/ be

Supports Bluetooth® 5.4**, MLO, 4KQAM

* 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2.
** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2.
LED FEATURE1x Dynamic Dashboard III
1x EZ Digit Debug LED
1x EZ LED Control switch

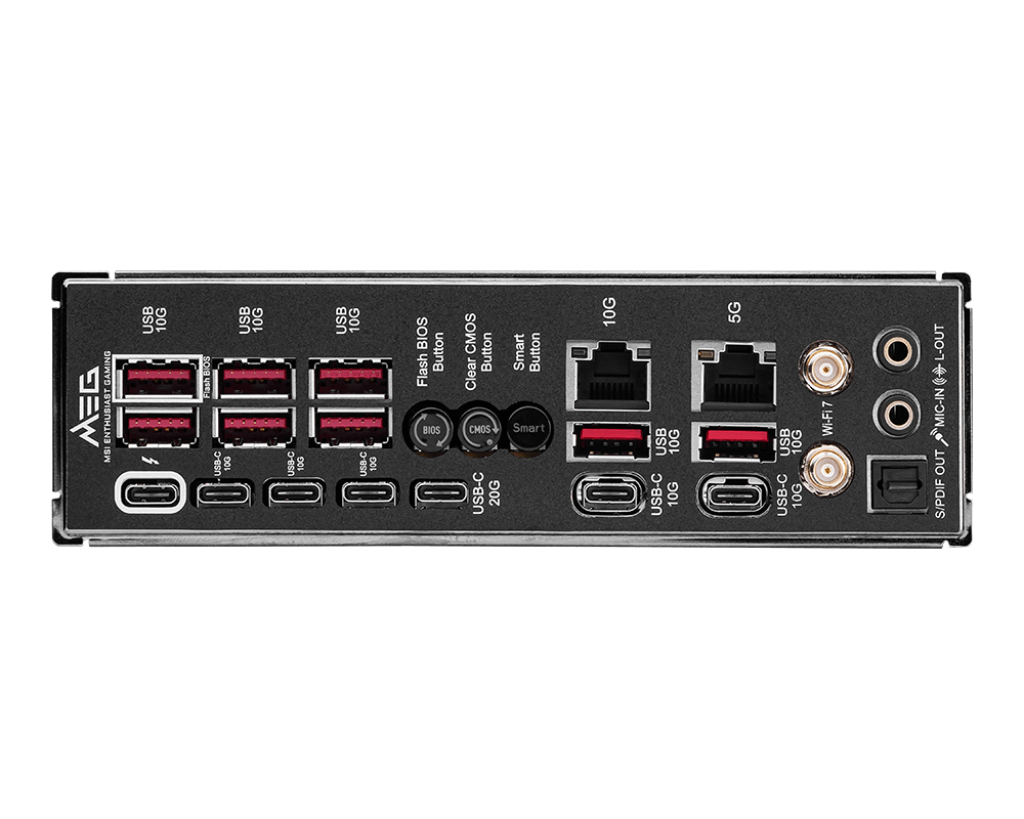

BACK PANEL PORTS
  1. USB 10Gbps (Type-A)
  2. Flash BIOS Button
  3. Clear CMOS Button
  4. Smart Button
  5. 10G LAN
  6. 5G LAN
  7. Wi-Fi / Bluetooth
  8. HD Audio Connectors
  9. Thunderbolt 4 40Gbps (Type-C)
  10. USB 10Gbps (Type-C)
  11. USB 20Gbps (Type-C)
  12. USB 10Gbps (Type-C)
  13. USB 10Gbps (Type-A)
  14. Optical S/PDIF-Out
OPERATING SYSTEMSupport for Windows® 11 64-bit
PCB InfoE-ATX
277mmx304.8mm
