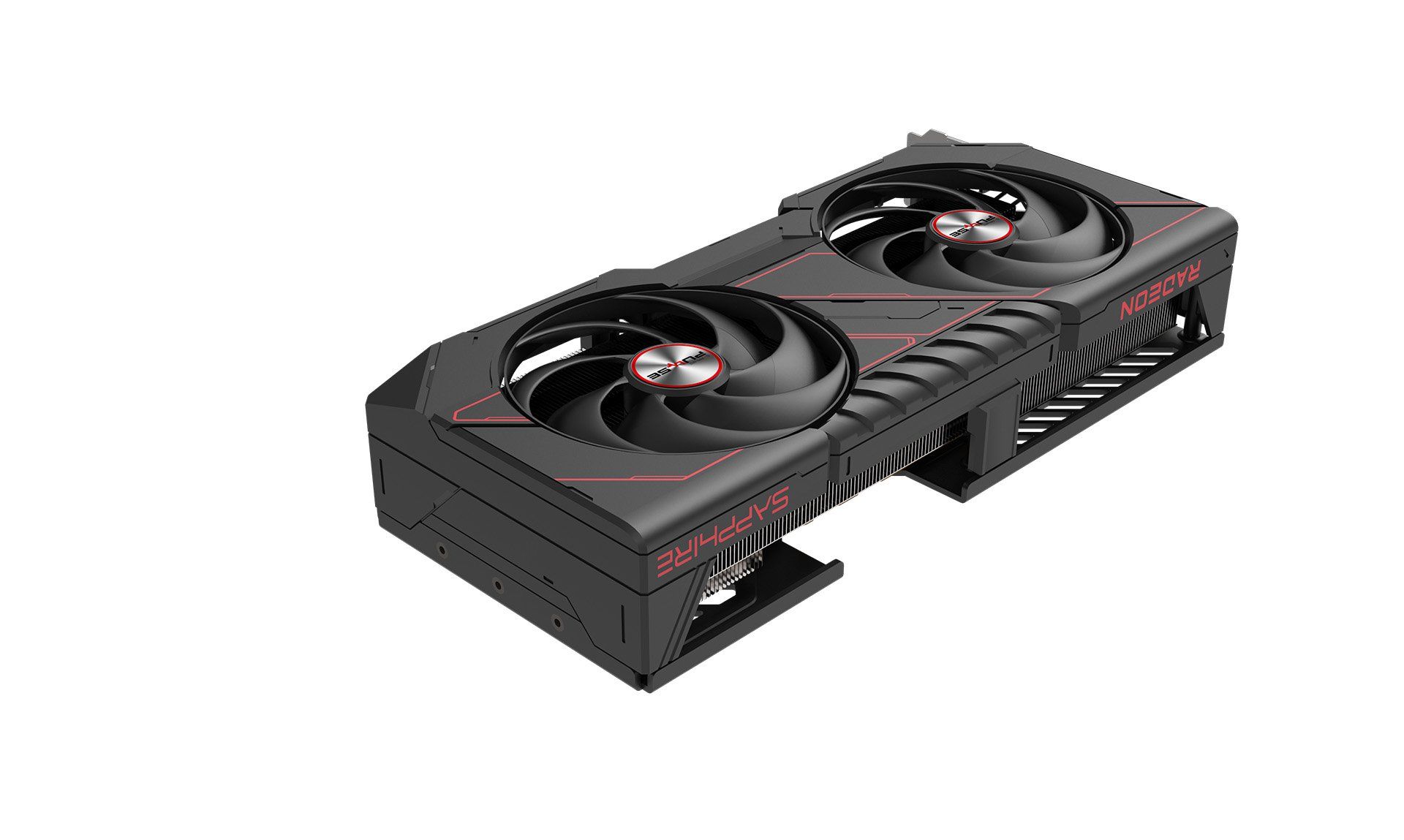

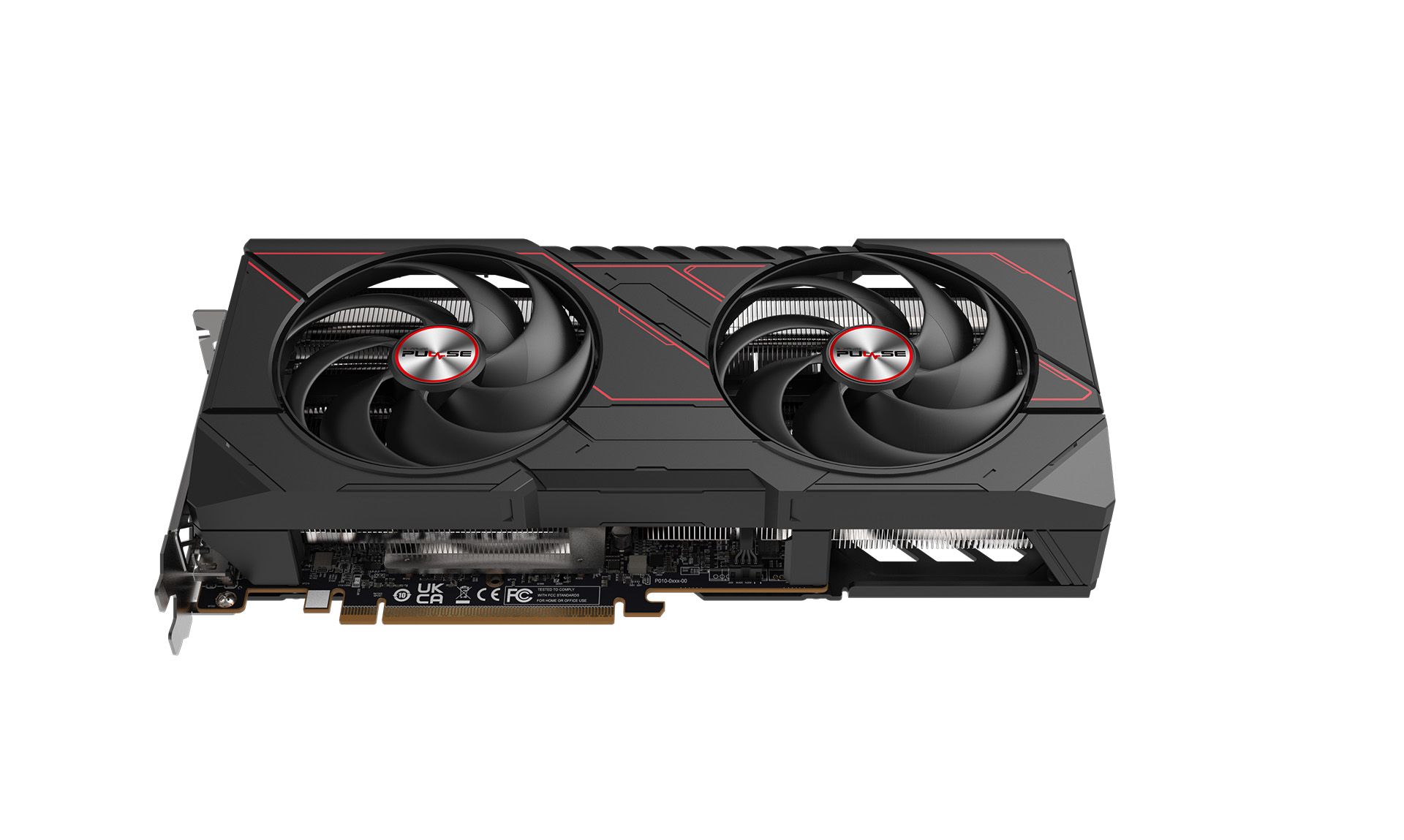

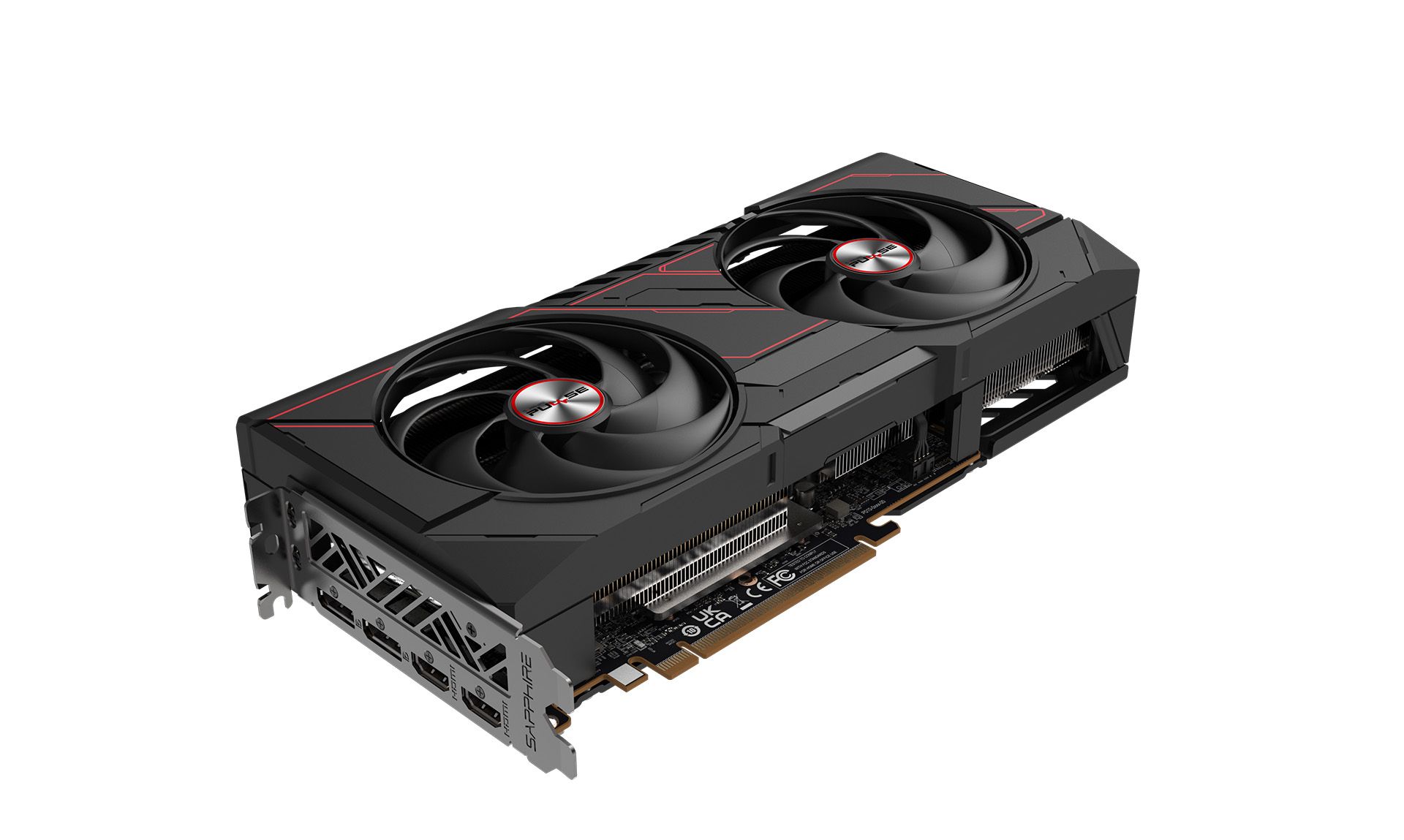

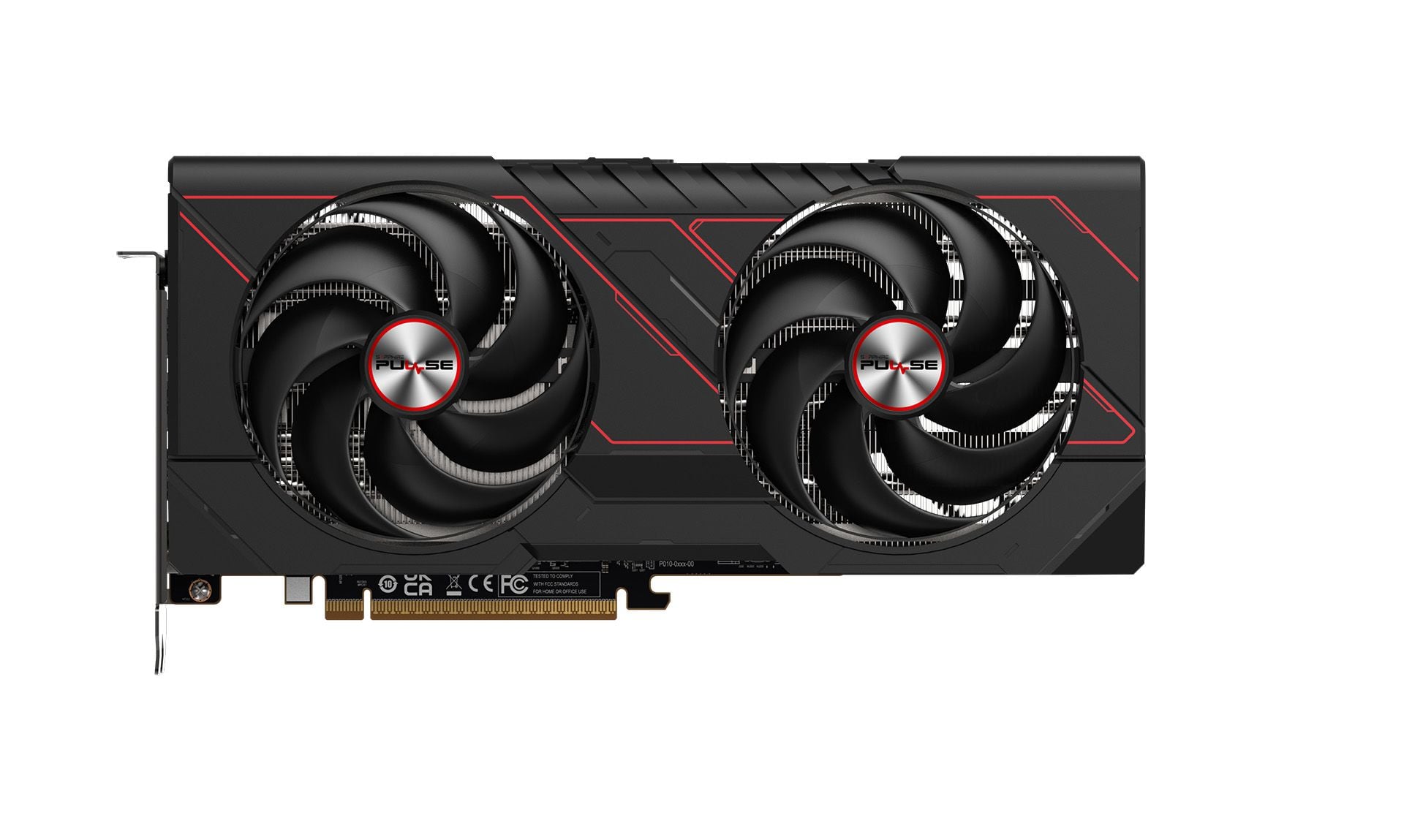

GPU | AMD Radeon™ RX 9070 Graphics Card AMD RDNA™ 4 Architecture |
Engine Clock | Boost Clock: Up to 2520 MHz |
| Game Clock: Up to 2070MHz |
Stream Processors | 3584 |
Compute Units | 56 CUs (3rd Gen RT + 2nd Gen AI Accelerators) |
Infinity Cache | 64MB |
Ray Accelerators | 56 |
AI Accelerator | 112 |
Memory Size/Bus | 16GB/256 bit GDDR6 |
Memory Clock | 20 Gbps Effective |
Displays | Maximum 4 Displays |
Resolution | HDMI®: 7680×4320 |
| DisplayPort™ 2.1a: 7680×4320 |
Interface | PCI-Express 5.0 x16 |
Output | 2x HDMI® |
| | 2x DisplayPort™ 2.1a |
BIOS Support | UEFI |
Game Index | 4K |
Sapphire Features | Honeywell PTM7950 Thermal Interface Material (TIM) |
| AeroCurve Fan Blade |
| Free Flow |
| FrameDefense |
| Integrated Cooling Module |
| Tri-X Cooling Technology |
| High TG Copper PCB |
| Optimized Composite Heatpipes |

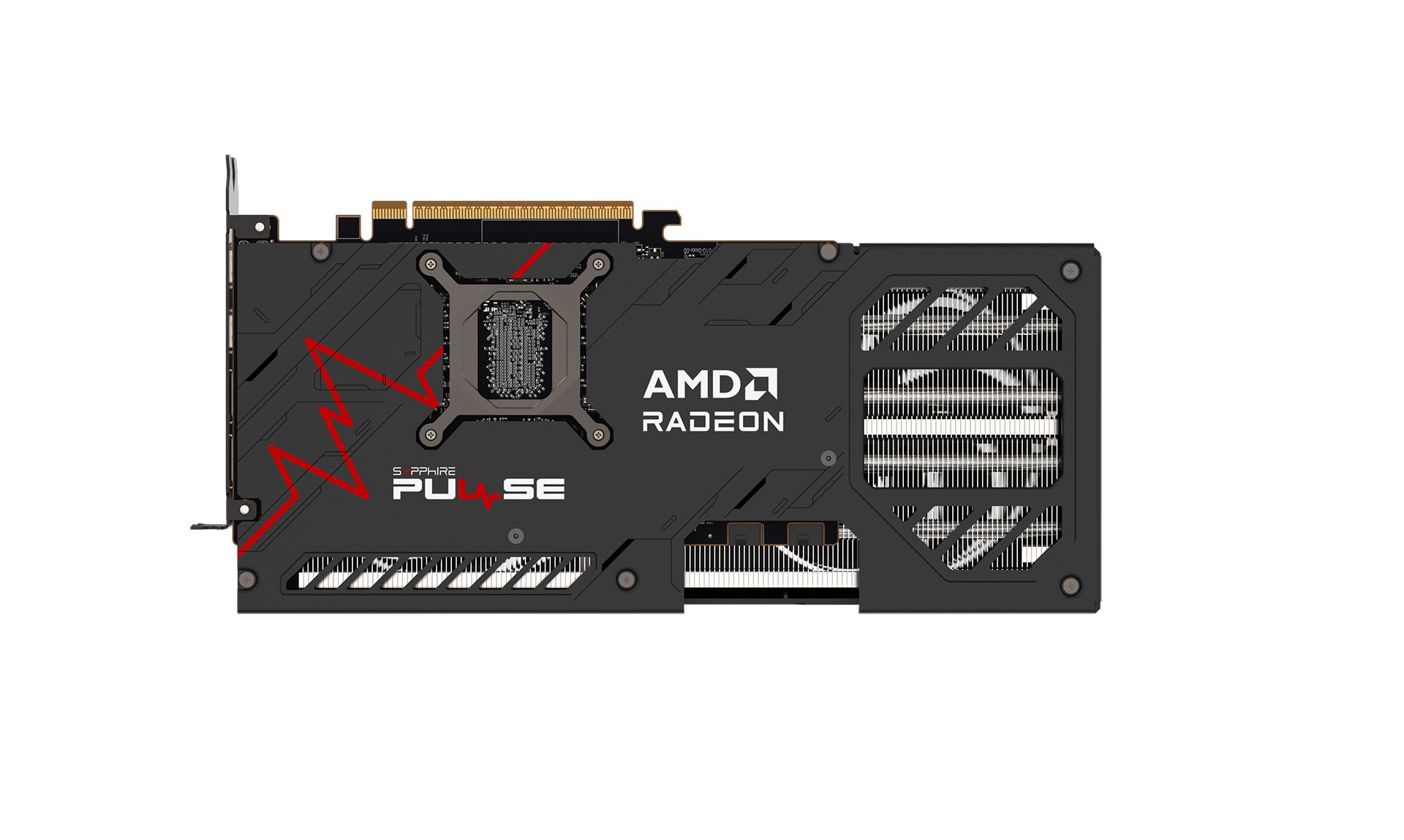

| Metal Backplate |
| ARGB SAPPHIRE Logo |
| Two-Ball Bearing Fans |
| 14-Phase Digital Power Design |
| Fuse Protection |
| Intelligent Fan Control |
| Precision Fan Control |
| TriXX Supported |
| Performance vs. Efficiency Quicksets |
| Glow! |
| TriXX Boost |
| External RGB LED MB Synchronization |
Accessories Bundled | L-Shape Support Bracket |
| 3pin 5V ARGB Cable |
AMD Features | AMD RDNA™ 4 Architecture |
| 64 Compute Units (3rd Gen RT + 2nd Gen AI Accelerators) |
| AMD HYPR-RX with AFMF 2 |
| AMD FidelityFX™ Super Resolution 4 with AI Upscaling |
| DisplayPort™ 2.1a |
| AMD Radiance Display™ Engine |
| AMD Fluid Motion Frames 2 technology |
| AMD Radeon™ Anti-Lag 2 technology |
| AV1 Encode/Decode |
| AMD FidelityFX™ technologies |
| Microsoft® DirectX® 12 Ultimate |
| AMD Noise Suppression |
| AMD Freesync™ technology |
| 16 GB of GDDR6 on 256-bit Memory Bus |
| AMD smart technologies |
| AMD Software: Adrenalin Edition™ application |
Cooler Type | Tri-X Cooling |
| AeroCurve Fan Blade |
| Free Flow |
| Integrated Cooling Module |
| High TG Copper PCB |
| Optimized Composite Heatpipes |
| Two-Ball Bearing |
Form Factor | 5.5 slot, ATX |
| Dimension: 280(L)X 120.25(W)X 51.5 (H)mm |
Power Consumption | 220W Typical Board Power |
OS | Linux®, Windows® 10, and Windows 11. 64-bit operating system required |
System Requirement | Minimum 650 Watt Power Supply |
| 2 x 8-pin Power Connector. |
| PCI Express® based PC is required with one X16 lane graphics slot available on the motherboard. |
| Minimum 8GB of system memory. 16GB recommended. |
