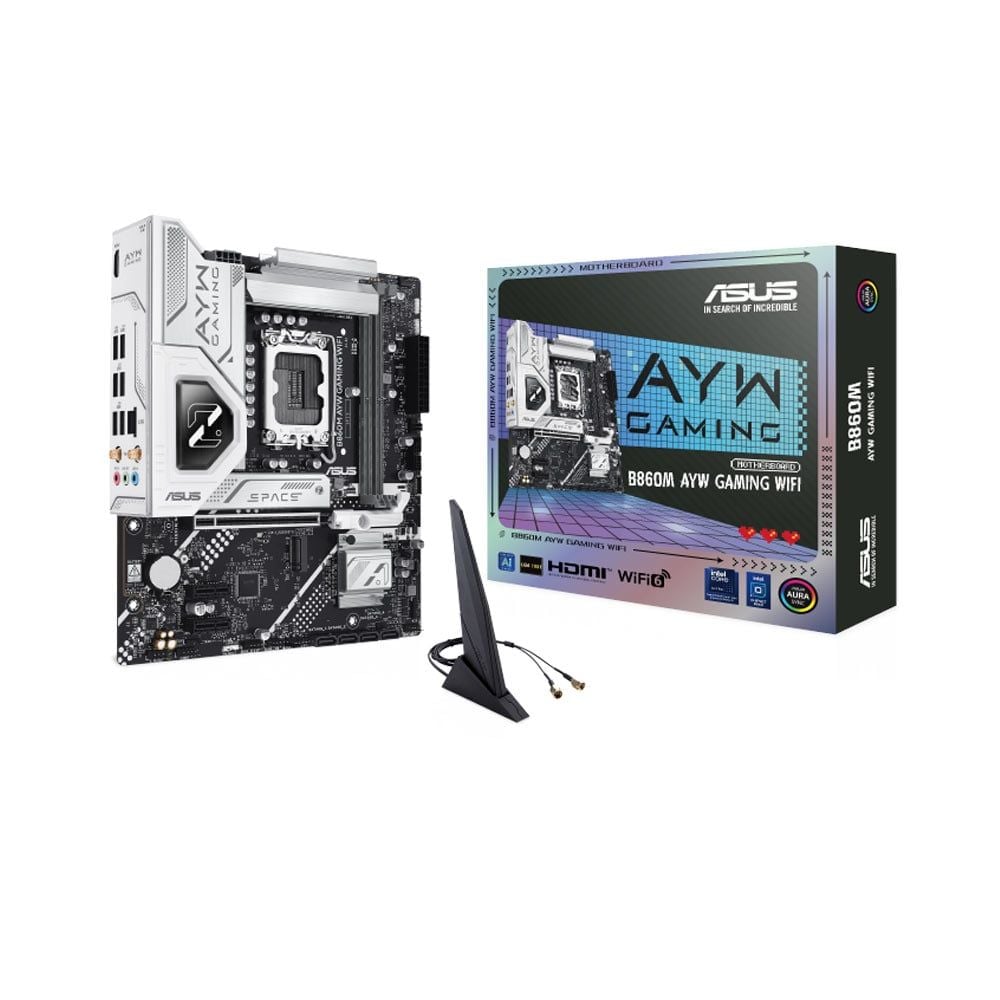

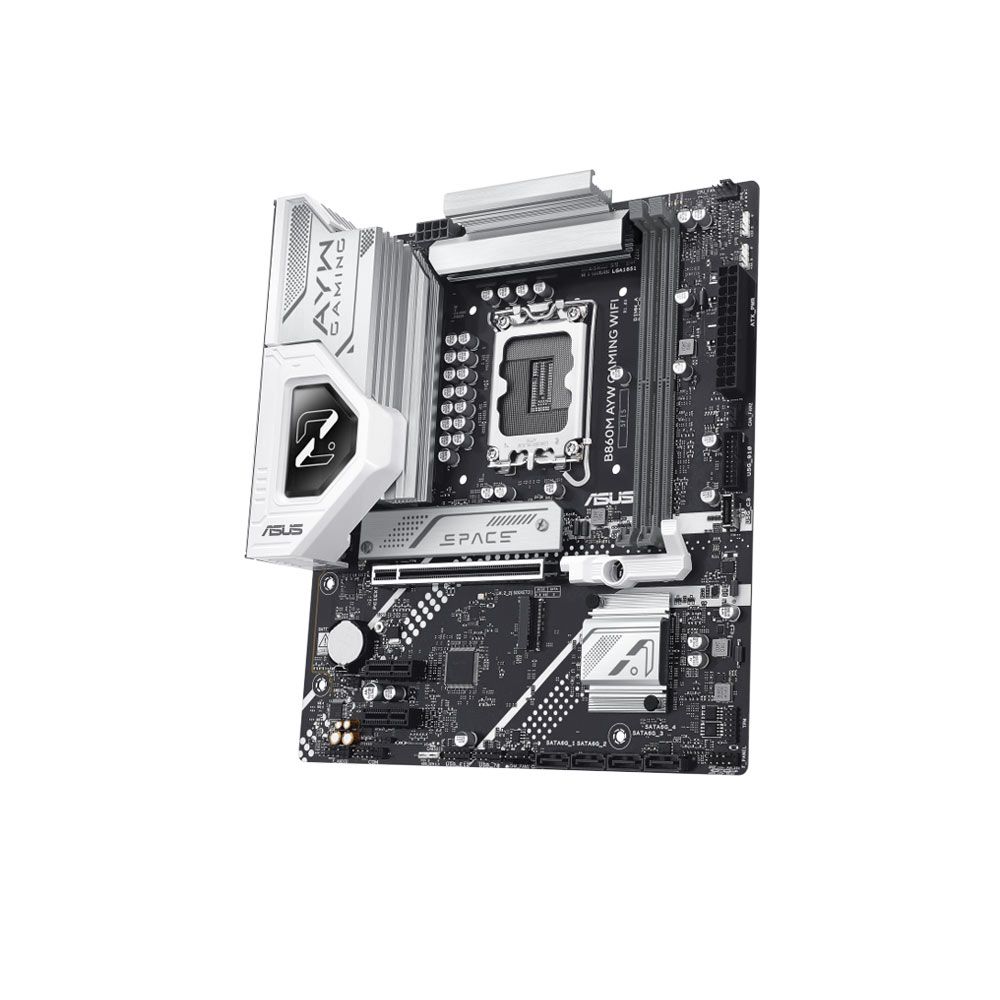

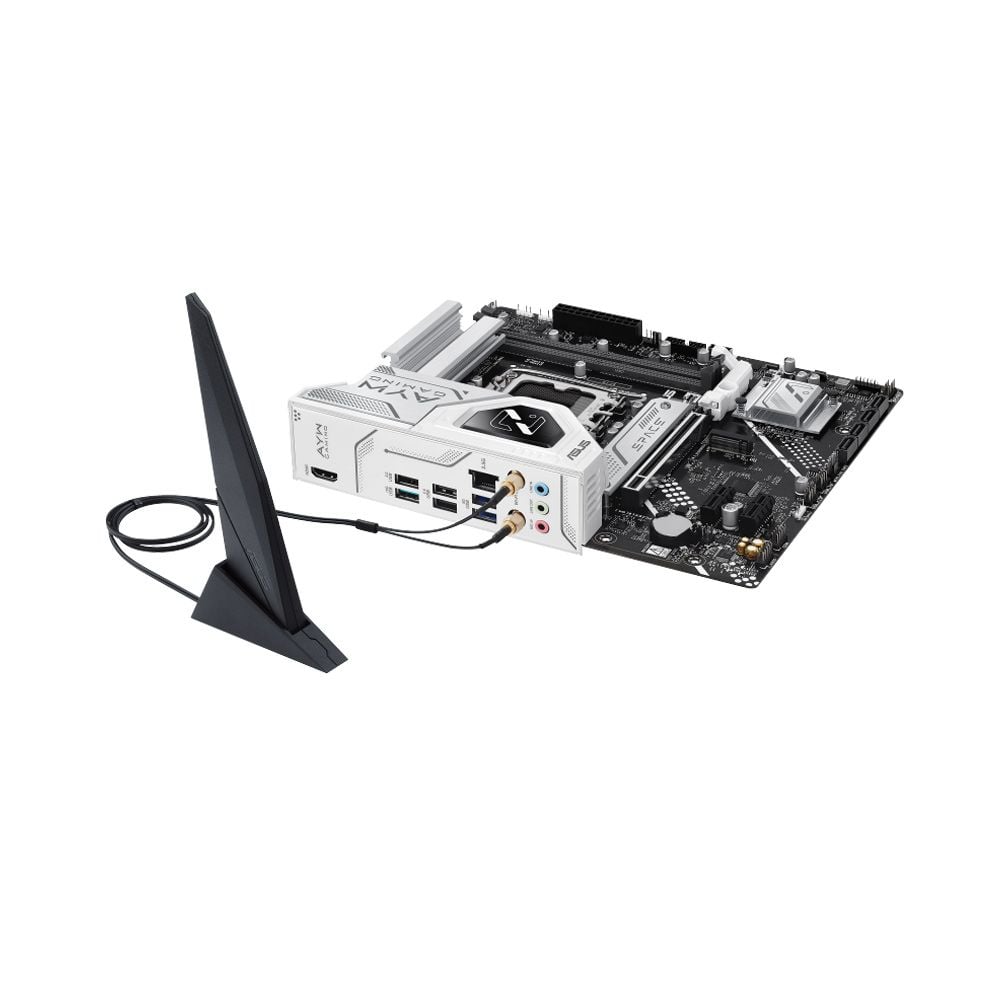

Mainboard ASUS B860M AYW GAMING WIFI

Tình trạng: Còn hàng Thương hiệu: ASUS

Giá: 5,199,000₫

Số lượng:

Chia sẻ:

Chính sách bán hàng

Cam kết 100% chính hãng

Hỗ trợ 24/7

Thông tin thêm

Hoàn tiền 111% nếu hàng giả

Mở hộp kiểm tra nhận hàng

Đổi trả trong 7 ngày

Mô tả sản phẩm

Chipset: Intel B860
Kích thước: micro-ATX
Khe cắm RAM: 2 x DIMM slots, max. 128GB, DDR5
Khe cắm mở rộng: 1 x PCIe 4.0 x16 slot; 2 x PCIe 4.0 x1 slots
Khe cắm ổ cứng: 2 x M.2 slots and 4 x SATA 6Gb/s ports

Bảo Hành: 36 Tháng

Thông số kỹ thuật

Sản phẩm	Bo mạch chủ
Tên Hãng	ASUS
Model	B860M AYW GAMING WIFI
CPU hỗ trợ	Supports Intel Core Ultra Processors (Series 2), LGA1851 Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Chipset	Intel B860 Chipset
RAM hỗ trợ	2 x DIMM slots, max. 128GB, DDR5 Supports up to 8800+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM) Dual channel memory architecture DIMM Fit Supports Intel® Extreme Memory Profile (XMP) memory module ASUS Enhanced Memory Profile III (AEMPIII)
Đồ họa	1 x HDMITM port
Khe cắm mở rộng	Intel Core Ultra Processors(Series 2) 1 x PCIe 4.0 x16 slot Intel B860 Chipset 2 x PCIe 4.0 x1 slots
Ổ cứng hỗ trợ	Supports 2 x M.2 slots and 4 x SATA 6Gb/s ports Intel® Core Ultra Processors (Series 2) M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode) Intel B860 Chipset M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports
ETHERNET	1 x Realtek 2.5Gb Ethernet ASUS LANGuard
LAN / Wireless	Wi-Fi 6 1x1 Wi-Fi 6 (802.11ax) Supports 2.4/5GHz frequency band Bluetooth v5.3
USB	Rear USB (Total 6 ports) 1 x USB 10Gbps port (1 x Type-A) 2 x USB 5Gbps ports (2 x Type-A) 3 x USB 2.0 ports (3 x Type-A) Front USB (Total 7 ports) 1 x USB 5Gbps connector (supports USB Type-C®)* 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports
Cổng kết nối (Internal)	Fan and Cooling Related 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers Power Related 1 x 24-pin Main Power connector 1 x 8-pin +12V CPU Power Storage Related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 5Gbps connector (supports USB Type-C®) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x 10-1 pin Front Panel System header
Cổng kết nối (Back Panel)	1 x USB 10Gbps port (1 x Type-A) 2 x USB 5Gbps ports (2 x Type-A) 3 x USB 2.0 ports (3 x Type-A) 1 x HDMITM port 1 x Wi-Fi module 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks
Âm thanh	Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers
Kích cỡ	micro-ATX Form Factor 9.6 inch x 8.75 inch ( 24.4 cm x 22.2 cm )
