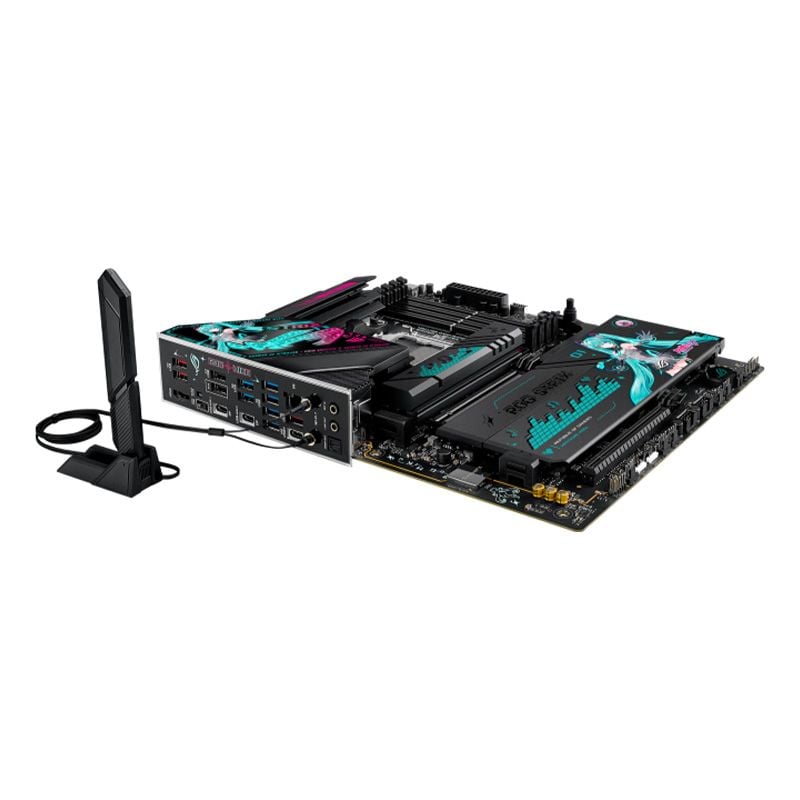

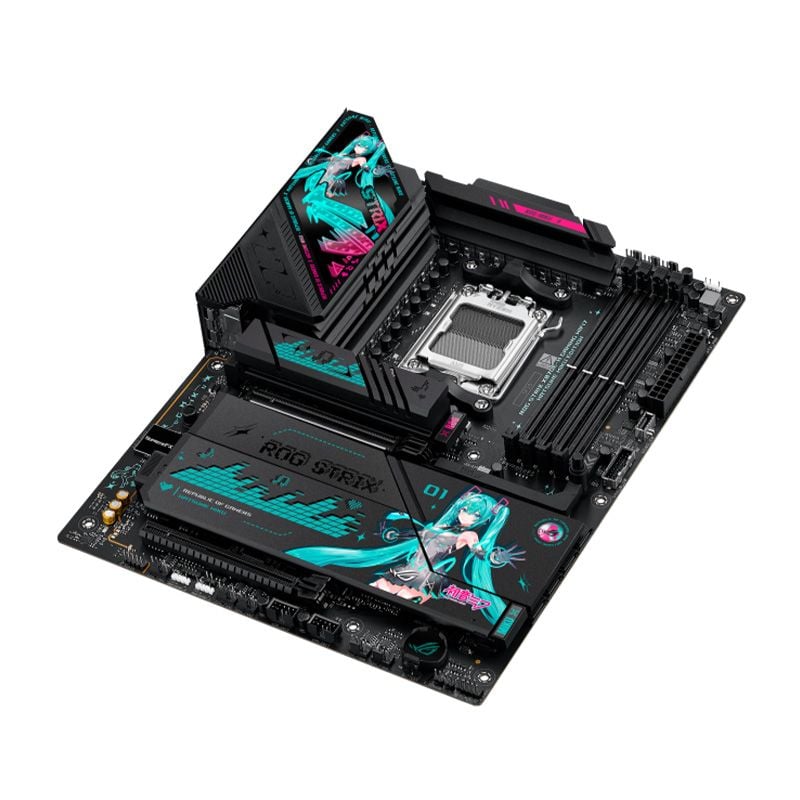

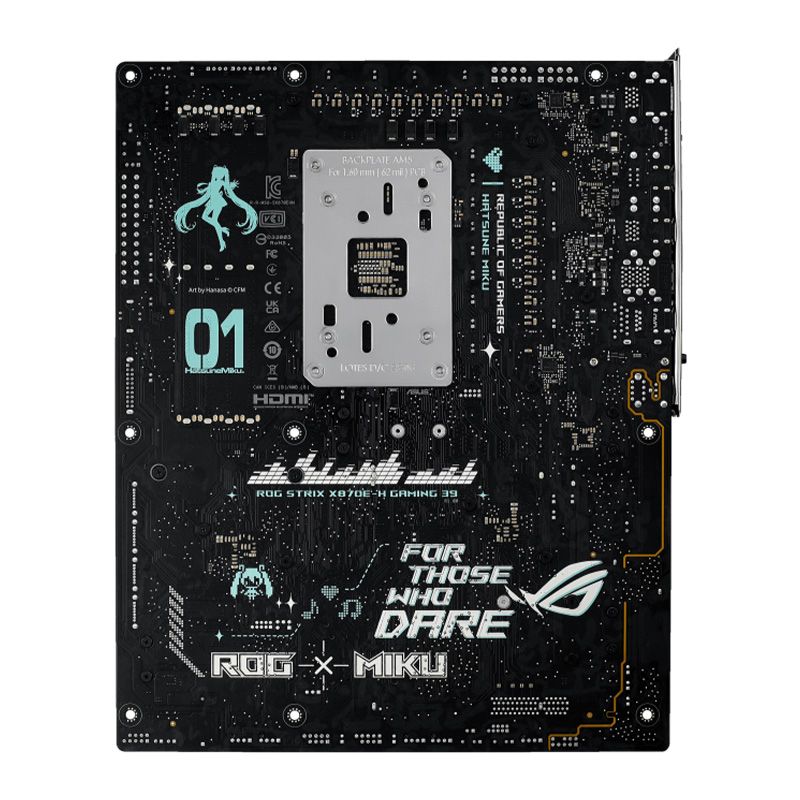

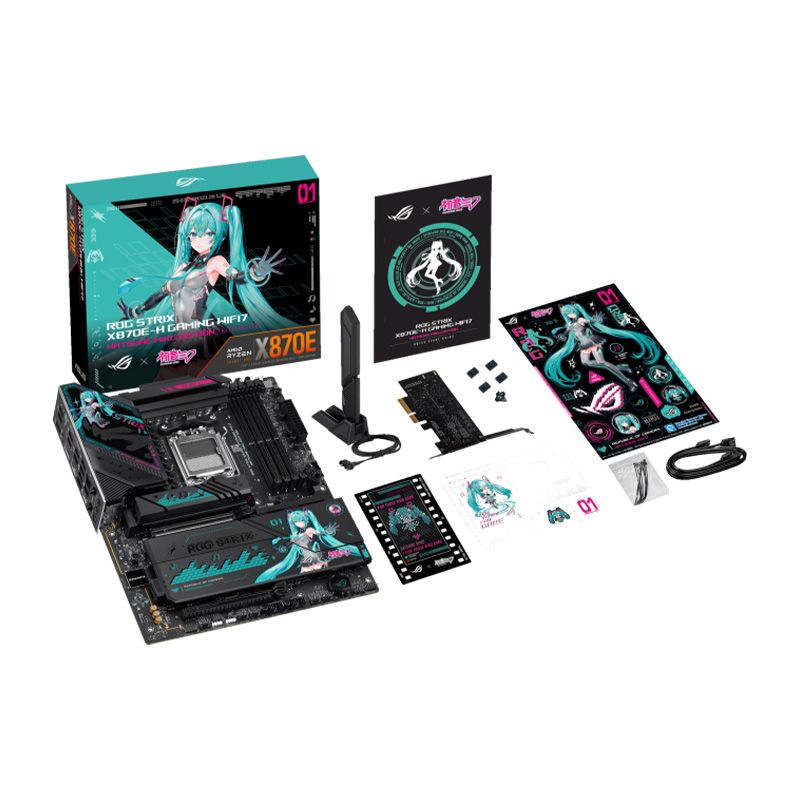

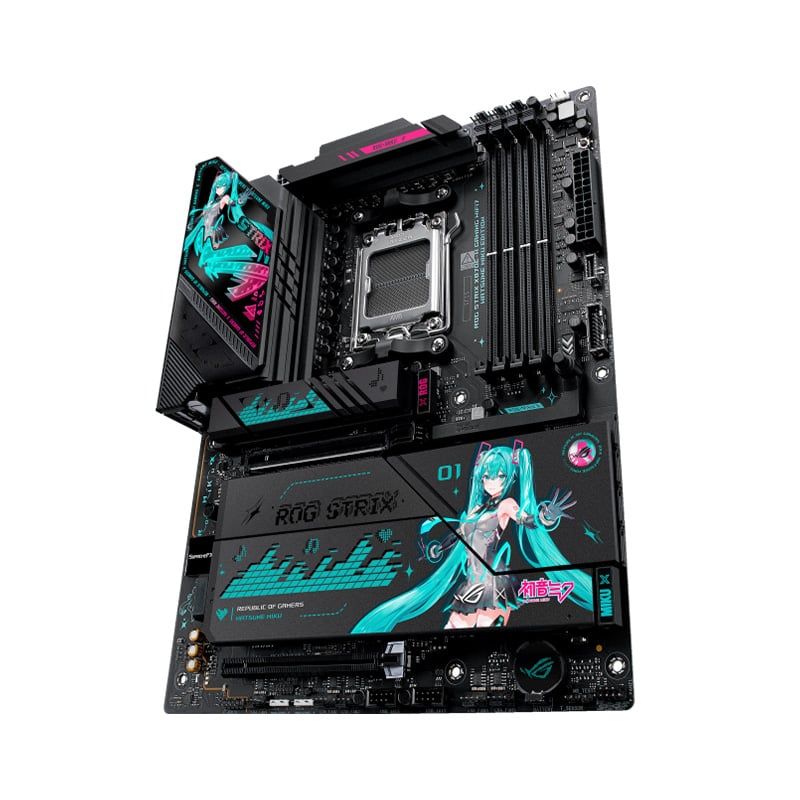

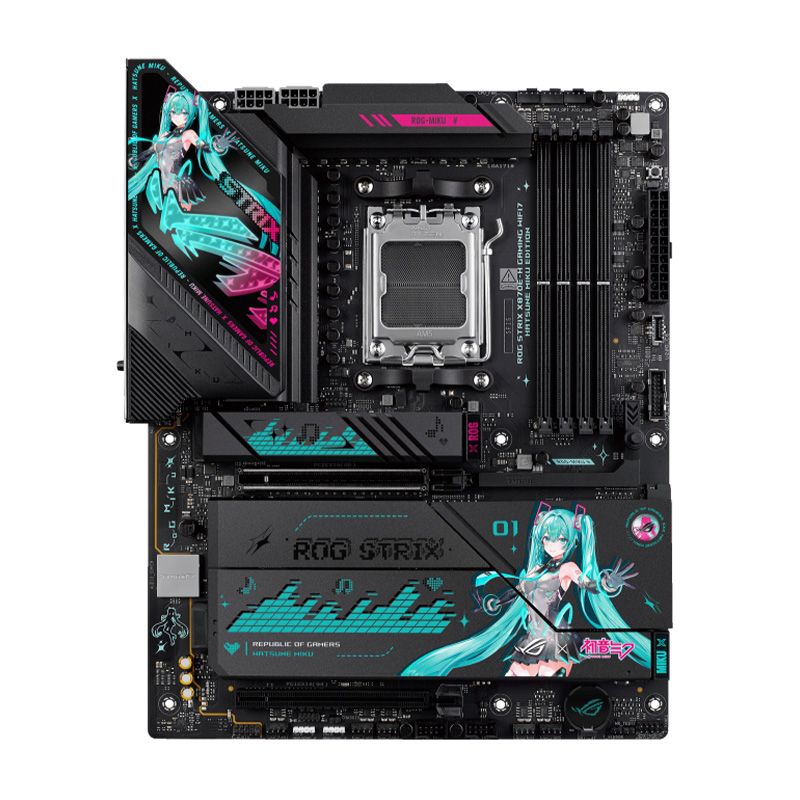

Mainboard ASUS ROG STRIX X870E-H GAMING WIFI 7 Hatsune Miku Edition

Sản phẩm

Bo mạch chủ

Tên Hãng

ASUS

CPU hỗ trợ

AMD

Chipset

AMD X870E

RAM hỗ trợ

4 x DIMM slots, max. 256GB, DDR5
Supports up to 8000+MT/s(OC) with Ryzen™
9000 & 8000 & 7000 Series Processors
Dual channel memory architecture
Supports AMD Extended Profiles for
Overclocking (EXPO™)
Supports DIMM Fit / DIMM Fit Pro
ASUS Enhanced Memory Profile (AEMP)

Khe cắm mở rộng

AMD Ryzen™ 9000 & 7000 Series Desktop
Processors*
1 x PCIe 5.0 x16 slot (supports x16 mode)
AMD Ryzen™ 8000 Series Desktop Processors*
1 x PCIe 4.0 x16 slot (supports x8/x4
mode)**
AMD X870E Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)

Ổ cứng hỗ trợ

Supports 4 x M.2 slots and 4 x SATA 6Gb/s
ports
AMD Ryzen™ 9000 & 7000 Series Desktop
Processors
M.2_1 slot (Key M), type 2242/2260/2280
(supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2280/22110
(supports PCIe 5.0 x4 mode)*
AMD Ryzen™ 8000 Series Desktop Processors*
M.2_1 slot (Key M), type 2242/2260/2280
(supports PCIe 4.0 x4/x2 mode)
M.2_2 slot (Key M), type 2280/22110 (Not
supports)**
AMD X870E Chipset
M.2_3 slot (Key M), type 2280 (supports
PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2280 (supports
PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports

Cổng kết nối (Internal)

Fan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
5 x 4-pin Chassis Fan headers
Power Related
1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connector
Storage Related
4 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 20Gbps connector (supports USB
Type-C®)
1 x USB 5Gbps header supports 2 additional
USB 5Gbps ports
2 x USB 2.0 headers support 4 additional
USB 2.0 ports
Miscellaneous
3 x Addressable RGB Gen 2 headers
1 x Chassis Intrusion header
1 x CPU Over voltage jumper
1 x Front Panel Audio header (F_AUDIO)
1 x Start button
1 x 10-1 pin Front Panel System header
1 x Thermal Sensor header

Cổng kết nối (Back Panel)

2 x USB4® (40Gbps) ports(2 x USB Type-C®)
4 x USB 10Gbps ports (3 x Type-A + 1 x USB
Type-C® with up to 30W PD/PPS Fast-charge)**
6 x USB 5Gbps ports (6 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x HDMI™ port
1 x Wi-Fi module
1 x Realtek 5Gb Ethernet
2 x Audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack™ button
1 x Clear CMOS button

LAN / Wireless

1 x Realtek 5Gb Ethernet
ASUS LANGuard
Wi-Fi 7 (MediaTek MT7925)
2x2 Wi-Fi 7* (802.11be)
Supports 2.4/5/6GHz frequency band
Supports Wi-Fi 7 160MHz bandwidth
Bluetooth® v5.4

Kích cỡ

ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
