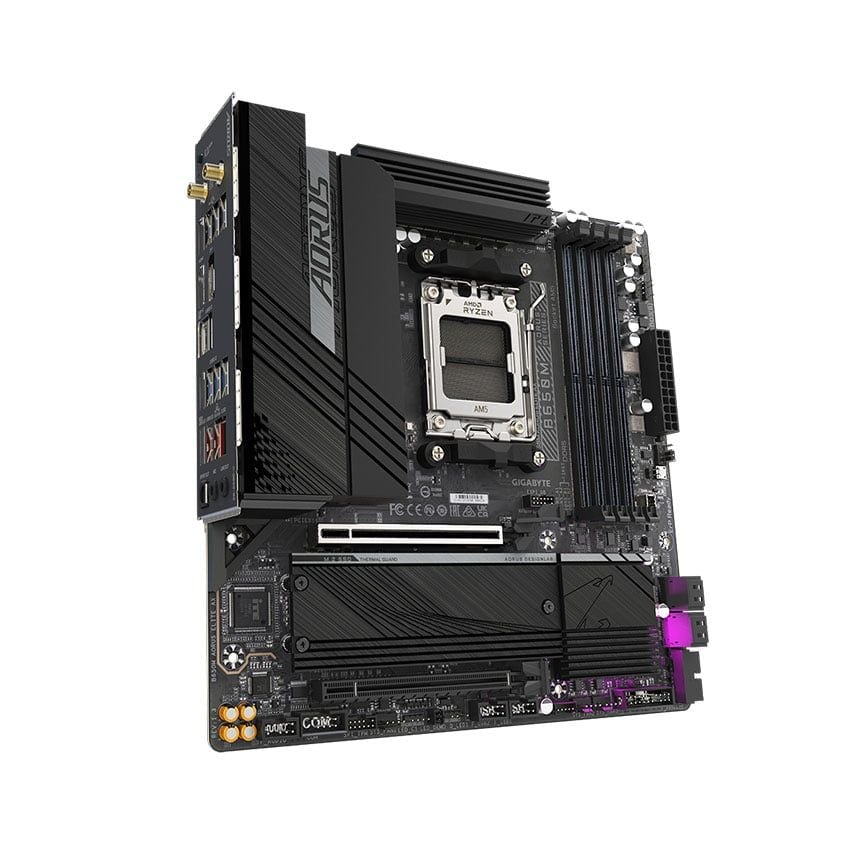

Mainboard Gigabyte B650M AORUS ELITE AX DDR5

Tình trạng: Còn hàng

Giá: 4,590,000₫ ~~4,990,000₫~~ -8%

Số lượng:

Chia sẻ:

Chính sách bán hàng

Cam kết 100% chính hãng

Hỗ trợ 24/7

Thông tin thêm

Hoàn tiền 111% nếu hàng giả

Mở hộp kiểm tra nhận hàng

Đổi trả trong 7 ngày

Mô tả sản phẩm

- Socket: AMD Socket AM5 hỗ trợ CPU AMD Ryzen ™ 7000 Series
- Kích thước: ATX
- Khe cắm RAM: 4 khe (Tối đa 128GB)
- Khe cắm mở rộng: 1 x PCI Express x16 slot
- Khe cắm ổ cứng: M.2 connector, 4 x SATA 6Gb/s connectors

Bảo hành: 36 Tháng

THÔNG SỐ KỸ THUẬT

Sản phẩm	Bo mạch chủ
Tên Hãng	GIGABYTE
Model	AORUS ELITE AX DDR5
CPU hỗ trợ	AMD Socket AM5 for AMD Ryzen™ 7000 Series
Chipset	B650
RAM hỗ trợ	Support for DDR5 8000(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6666(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800/ 4400 MT/s memory modules4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memoryDual channel memory architectureSupport for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modulesSupport for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.)
Khe cắm mở rộng	CPU:1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.Chipset:1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
Ổ cứng hỗ trợ	CPU:1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0* x4/x2 SSD support) (M2A_CPU)* Actual support may vary by CPU.1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU)Chipset:4 x SATA 6Gb/s connectorsRAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devicesRAID 0, RAID 1, and RAID 10 support for SATA storage devices
Cổng kết nối (Internal)	1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connector1 x CPU fan header1 x water cooling CPU fan header3 x system fan headers1 x system fan/water cooling pump header2 x addressable LED strip headers2 x RGB LED strip headers1 x CPU cooler LED strip/RGB LED strip header2 x M.2 Socket 3 connectors4 x SATA 6Gb/s connectors1 x front panel header1 x front panel audio header1 x USB Type-C® header, with USB 3.2 Gen 2x2 support1 x USB 3.2 Gen 1 header2 x USB 2.0/1.1 headers1 x serial port header1 x THB_U4 add-in card connector1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)1 x reset button1 x reset jumper1 x Clear CMOS jumper
Cổng kết nối (Back Panel)	1 x Q-Flash Plus button2 x SMA antenna connectors (2T2R)1 x DisplayPort1 x HDMI port1 x USB Type-C® port, with USB 3.2 Gen 2 support2 x USB 3.2 Gen 2 Type-A ports (red)5 x USB 3.2 Gen 1 ports4 x USB 2.0/1.1 ports1 x RJ-45 port1 x optical S/PDIF Out connector2 x audio jacks
LAN	Intel® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
WIRELESS/ BLUETOOTH	AMD Wi-Fi 6E RZ616 (MT7922A22M) (For PCB rev. 1.0)WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bandsBLUETOOTH 5.2Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rateIntel® Wi-Fi 6E AX210 (For PCB rev. 1.1)WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bandsBLUETOOTH 5.3Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
Kích cỡ	1.Micro ATX Form Factor; 24.4cm x 24.4cm Micro ATX Form Factor; 24.4cm x 24.4cm
