CPU | AMD Socket AM5, support for: |
AMD Ryzen™ 9000 Series Processors/ |
AMD Ryzen™ 8000 Series Processors/ |
AMD Ryzen™ 7000 Series Processors |
(Go to GIGABYTE's website for the latest CPU support list.) |
Chipset | AMD X870 |
Bộ nhớ | Support for DDR5 8000(OC)/7800(OC)/7600(OC)/7200(OC)/7000(OC) /6800(OC)/6666(OC)/6600(OC)/6400(OC)/6200(OC)/ 6000(OC)/5600(OC)/5200/4800/4400 MT/s memory modules 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules |
Đồ họa tích hợp | Integrated Graphics Processor with AMD Radeon™ Graphics support+ASMedia USB4® Controller: |
- 2 x USB4® USB Type-C® ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@240 Hz |
* Support for DisplayPort 1.4 version and HDR. |
Integrated Graphics Processor with AMD Radeon™ Graphics support: |
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz |
* Support for HDMI 2.1 version, HDCP 2.3, and HDR. |
** Support native HDMI 2.1 TMDS compatible ports. |
Âm thanh | Realtek® Audio CODEC |
High Definition Audio 2/4/5.1/7.1-channel |
Mạng LAN | Chip Realtek® 2.5GbE LAN (2.5 Gbps/1 Gbps/100 Mbps) |
Kết nối không dây | Realtek® Wi-Fi 6 RTL8851BE (PCB rev. 1.0) |
- WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz carrier frequency bands |
- BLUETOOTH 5.3 |
- Support for 11ax 80MHz wireless standard |
Khe cắm mở rộng | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: |
AMD Ryzen™ 900/7000 Series Processors support PCIe 5.0 x16 mode |
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode |
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode |
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. |
Chipset: |
- 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1/2) |
Lưu trữ | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs: |
AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs |
AMD Ryzen™ 8000 Series- Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs |
AMD Ryzen™ 8000 Series- Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs |
1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x2 SSDs |
1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSDs |
* The M2B_SB connector shares bandwidth with the M2C_SB connector. The M2C_SB connector will become unavailable when an PCIe 4.0 x4 SSD is installed in the M2B_SB connector. |
4 x SATA 6Gb/s connectors |
RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices |
* RAID 5 is only available on AMD Ryzen™ 9000 Series Processors. |
RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
USB | CPU+ASMedia USB4® controller: |
- 2 x USB4® USB Type-C® ports on the back panel |
CPU: |
- 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel |
- 1 x USB 3.2 Gen 1 port on the back panel |
Chipset+2 USB 2.0 Hubs: |
- 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) |
Chipset: |
- 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header |
- 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) |
- 4 x USB 2.0/1.1 ports available through the internal USB headers |
Internal I/O Connectors | 1 x 24-pin ATX main power connector |
1 x 8-pin ATX 12V power connector |
1 x 4-pin ATX 12V power connector |
1 x CPU fan header |
1 x CPU fan/water cooling pump header |
4 x system fan headers |
3 x addressable RGB Gen2 LED strip headers |
1 x RGB LED strip header |
4 x SATA 6Gb/s connectors |
3 x M.2 Socket 3 connectors |
1 x front panel header |
1 x front panel audio header |
1 x USB Type-C® header, with USB 3.2 Gen 2x2 support |
1 x USB 3.2 Gen 1 header |
4 x USB 2.0/1.1 headers |
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) |
1 x reset jumper |
1 x Clear CMOS jumper |

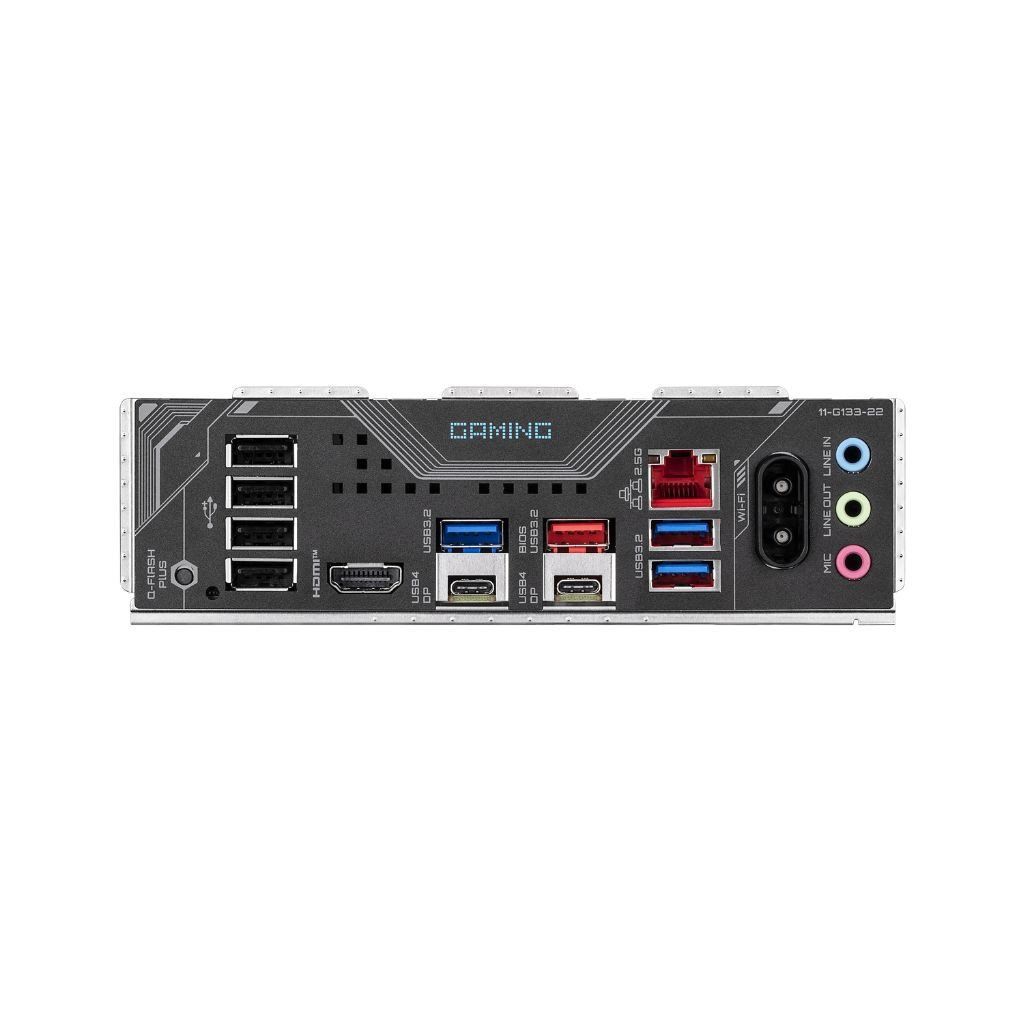

Back Panel | 1 x Q-Flash Plus button |
2 x SMA antenna connectors (2T2R) |
1 x HDMI port (Note) |
2 x USB4® USB Type-C® ports (DisplayPort (Note)) |
1 x USB 3.2 Gen 2 Type-A port (red) |
3 x USB 3.2 Gen 1 ports |
4 x USB 2.0/1.1 ports |
1 x RJ-45 port |
3 x audio jacks |
BIOS | 1 x 256 Mbit flash |
Use of licensed AMI UEFI BIOS |
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
Form | ATX Form Factor; 30.5cm x 24.4cm |
