Sản Phẩm | Mainboard |
Thương hiệu | GIGABYTE |

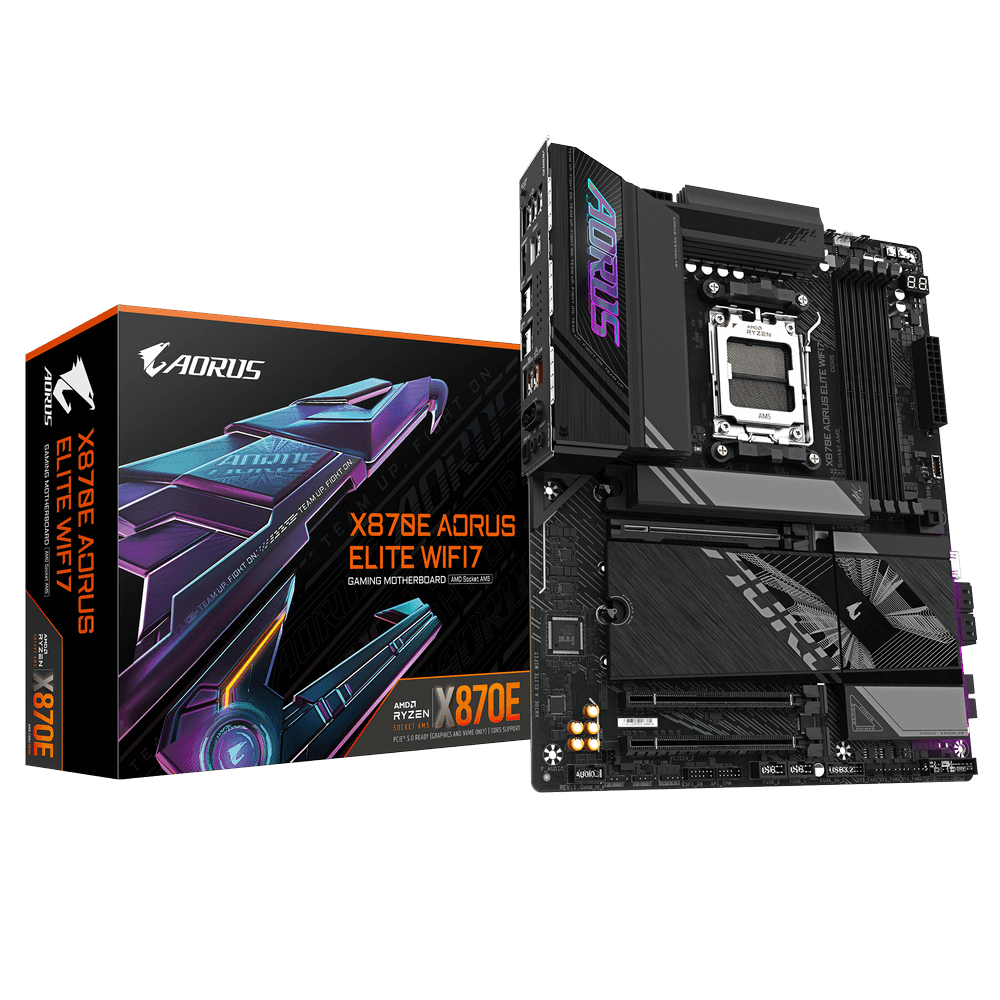

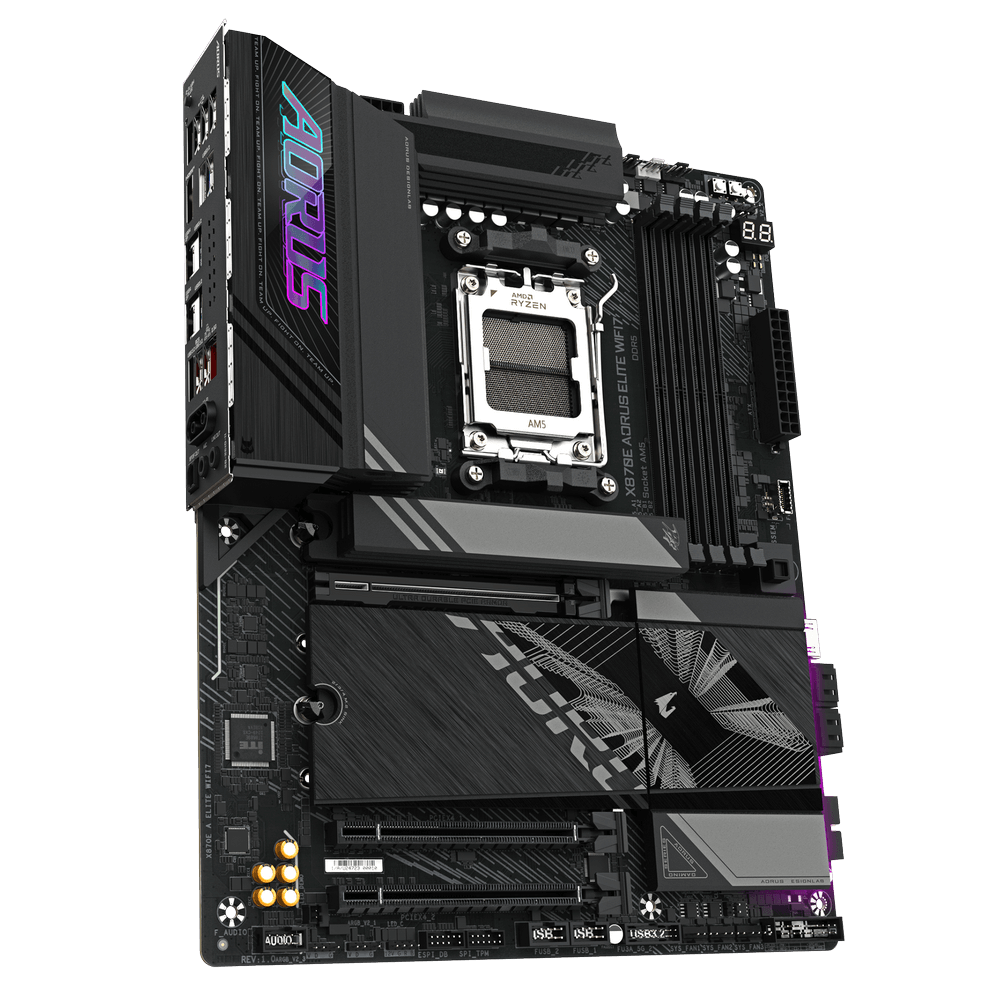

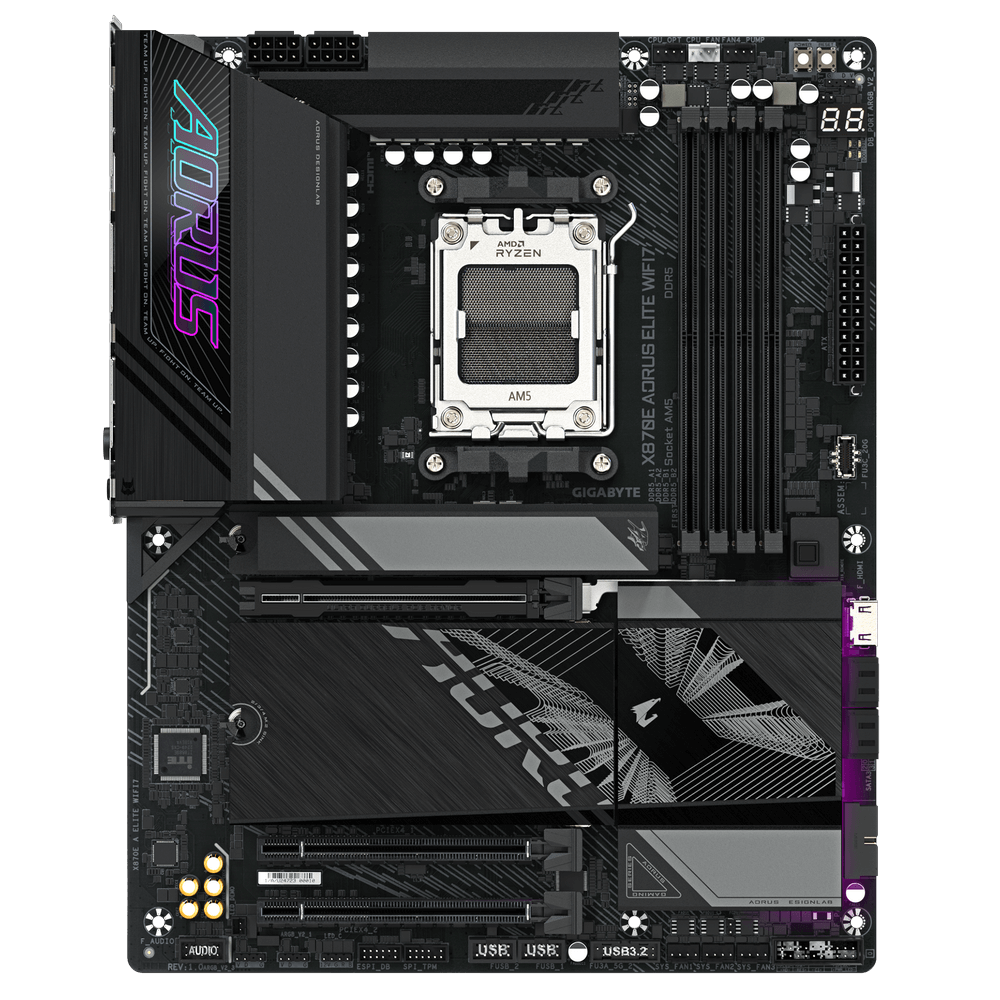

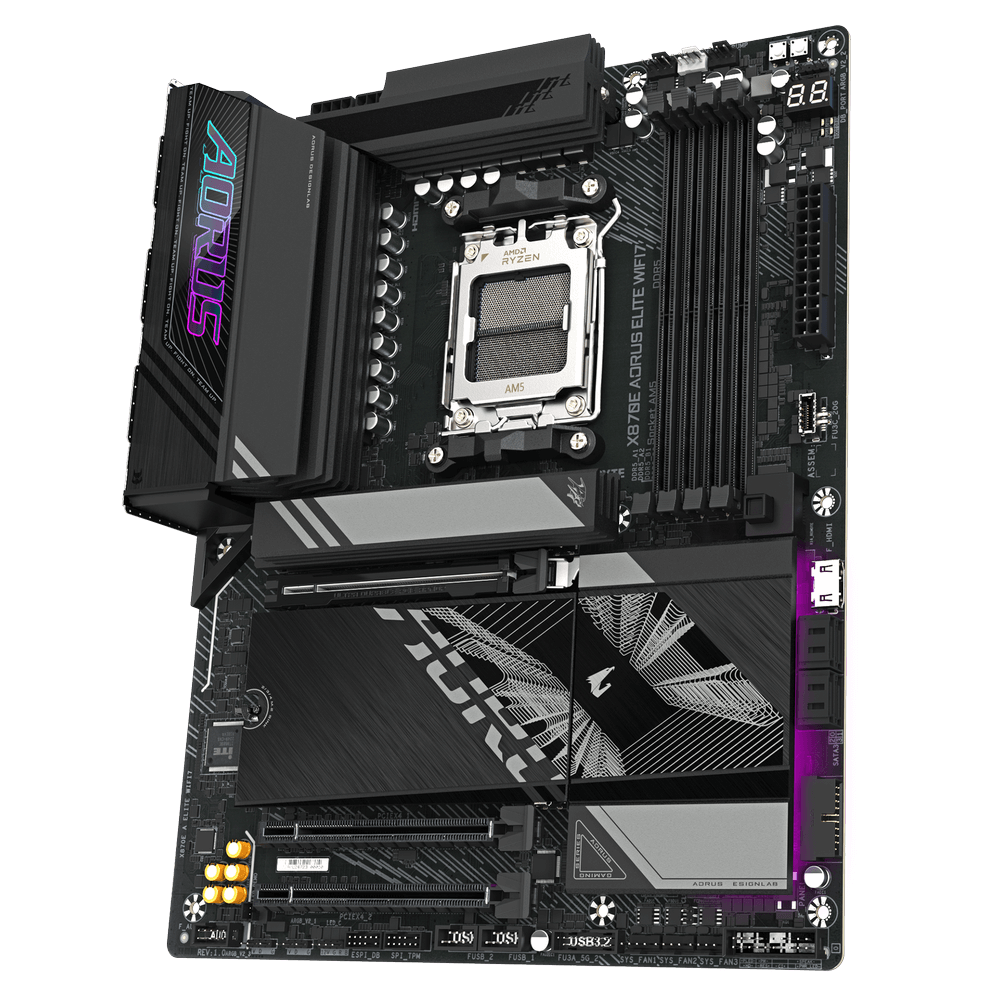

Model | X870E AORUS ELITE WIFI7 |
Chipset | AMD X870E |
Hỗ trợ CPU | AMD Socket AM5, support for: |
AMD Ryzen™ 9000 Series Processors/ |
AMD Ryzen™ 8000 Series Processors/ |
AMD Ryzen™ 7000 Series Processors |
Bộ nhớ | Support for DDR5 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) /6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules |
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory |
Dual channel memory architecture |
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules |
Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules |
Đồ họa | Integrated Graphics Processor with AMD Radeon™ Graphics support+ASMedia USB4® Controller: |
- 2 x USB4® USB Type-C® ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@240 Hz |
|
Integrated Graphics Processor with AMD Radeon™ Graphics support: |
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz |
|
- 1 x front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz |
Khe mở rộng | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: |
AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode |
|
When the M2B_CPU or M2C_CPU connector is populated, the PCIEX16 slot operates at up to x8 mode. |
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode |
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode |
(The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.) |
|
Chipset: |
- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4_1) |
- 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4_2) |
Storage | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs: |
AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs |
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs |
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs |
|
2 x M.2 connectors (M2B_CPU, M2C_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs: |
AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs |
|
1 x M.2 connector (M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs |
4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices |
|
RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
Audio | Realtek® ALC1220 CODEC |
|
High Definition Audio |
2/4/5.1/7.1-channel |
|
Support for S/PDIF Out |
LAN | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
Bluetooth, không dây | MediaTek Wi-Fi 7 MT7925 (PCB rev. 1.0) |
- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands |
- BLUETOOTH 5.4 |
- Support for 11be 160MHz wireless standard |
|
Realtek® Wi-Fi 7 RTL8922AE (PCB rev. 1.1) |
- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands |
- BLUETOOTH 5.4 |
- Support for 11be 160MHz wireless standard |
|
(Actual data rate may vary depending on environment and equipment.) |
* Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.) |
**Wi-Fi 7 channels on 6 GHz band availability depends on individual country's regulations. |
Khe mở rộng | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: |
AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode |
* The M2B_CPU and M2C_CPU connectors share bandwidth with the PCIEX16 slot. |
|
When the M2B_CPU or M2C_CPU connector is populated, the PCIEX16 slot operates at up to x8 mode. |
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode |
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode |
(The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.) |
|
Chipset: |
- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4_1) |
- 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4_2) |
Lưu Trữ | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs: |
AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs |
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs |
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs |
2 x M.2 connectors (M2B_CPU, M2C_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs: |
AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs |
* The M2B_CPU and M2C_CPU connectors become unavailable when an AMD Ryzen™ 8000 Series-Phoenix 1/Phoenix 2 processor is used. |
|
1 x M.2 connector (M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs |
4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices |
* RAID 5 is only available on AMD Ryzen™ 9000 Series Processors. |
|
RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
USB | CPU+ASMedia USB4® controller: |
- 2 x USB4® USB Type-C® ports on the back panel |
CPU: |
- 1 x USB 3.2 Gen 1 port on the back panel |
Chipset: |
- 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header |
- 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel |
- 7 x USB 3.2 Gen 1 ports (3 ports on the back panel, 4 ports available through the internal USB headers) |
- 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) |
Đầu nối I/O bên trong | 1 x 24-pin ATX main power connector |
2 x 8-pin ATX 12V power connectors |
1 x CPU fan header |
1 x CPU fan/water cooling pump header |
3 x system fan headers |
1 x system fan/water cooling pump header |
3 x addressable RGB Gen2 LED strip headers |
1 x RGB LED strip header |
4 x M.2 Socket 3 connectors |
4 x SATA 6Gb/s connectors |
1 x front panel header |
1 x front panel audio header |
1 x USB Type-C® header, with USB 3.2 Gen 2x2 support |
2 x USB 3.2 Gen 1 headers |
2 x USB 2.0/1.1 headers |
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) |
1 x HDMI port (Note) |
1 x power button |
1 x reset button |
1 x reset jumper |
1 x Clear CMOS jumper |

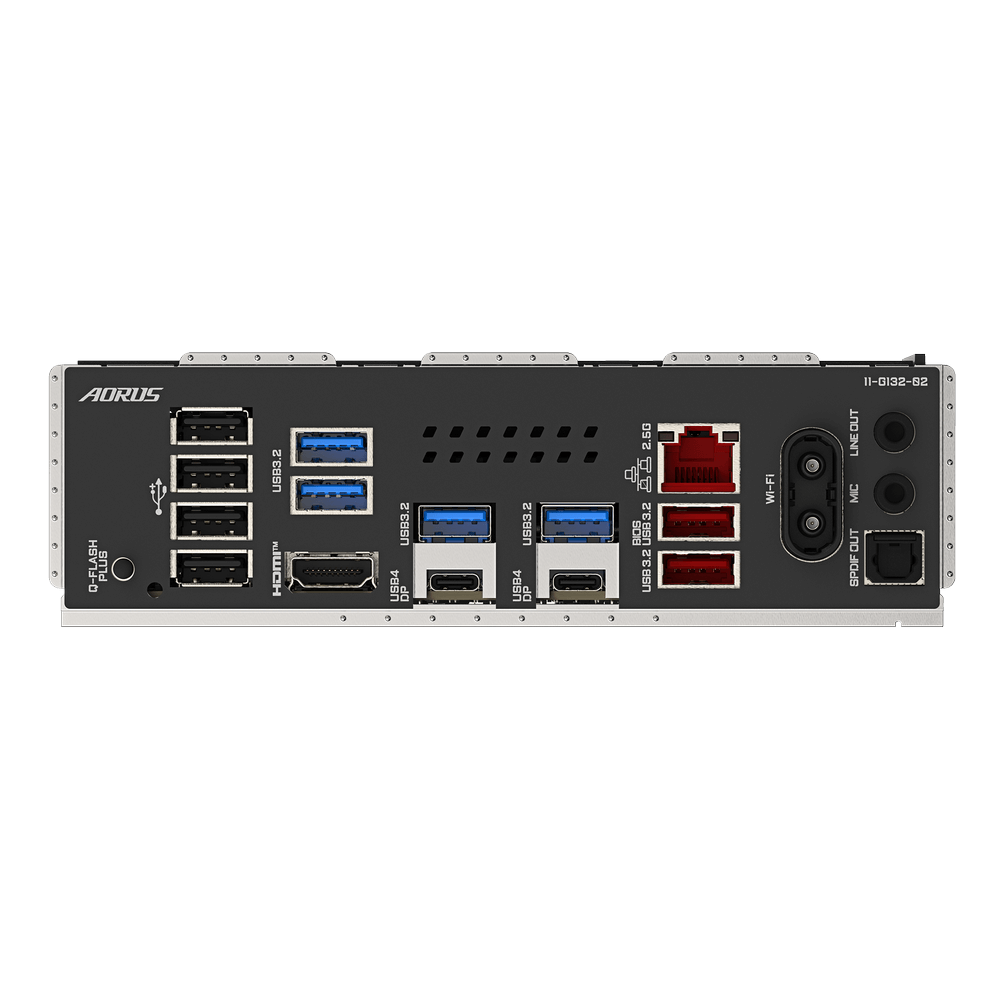

Cổng I/O mặt sau | 1 x Q-Flash Plus button |
4 x USB 2.0/1.1 ports |
4 x USB 3.2 Gen 1 ports |
1 x HDMI port (Note) |
2 x USB4® USB Type-C® ports (DisplayPort (Note)) |
1 x RJ-45 port |
2 x USB 3.2 Gen 2 Type-A ports (red) |
2 x antenna connectors (2T2R) |
2 x audio jacks |
1 x optical S/PDIF Out connector |
BIOS | 1 x 256 Mbit flash |
Use of licensed AMI UEFI BIOS |
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
Hệ điều hành | Support for Windows 11 64-bit |
Yếu tố hình thức | ATX Form Factor; 30.5cm x 24.4cm |
