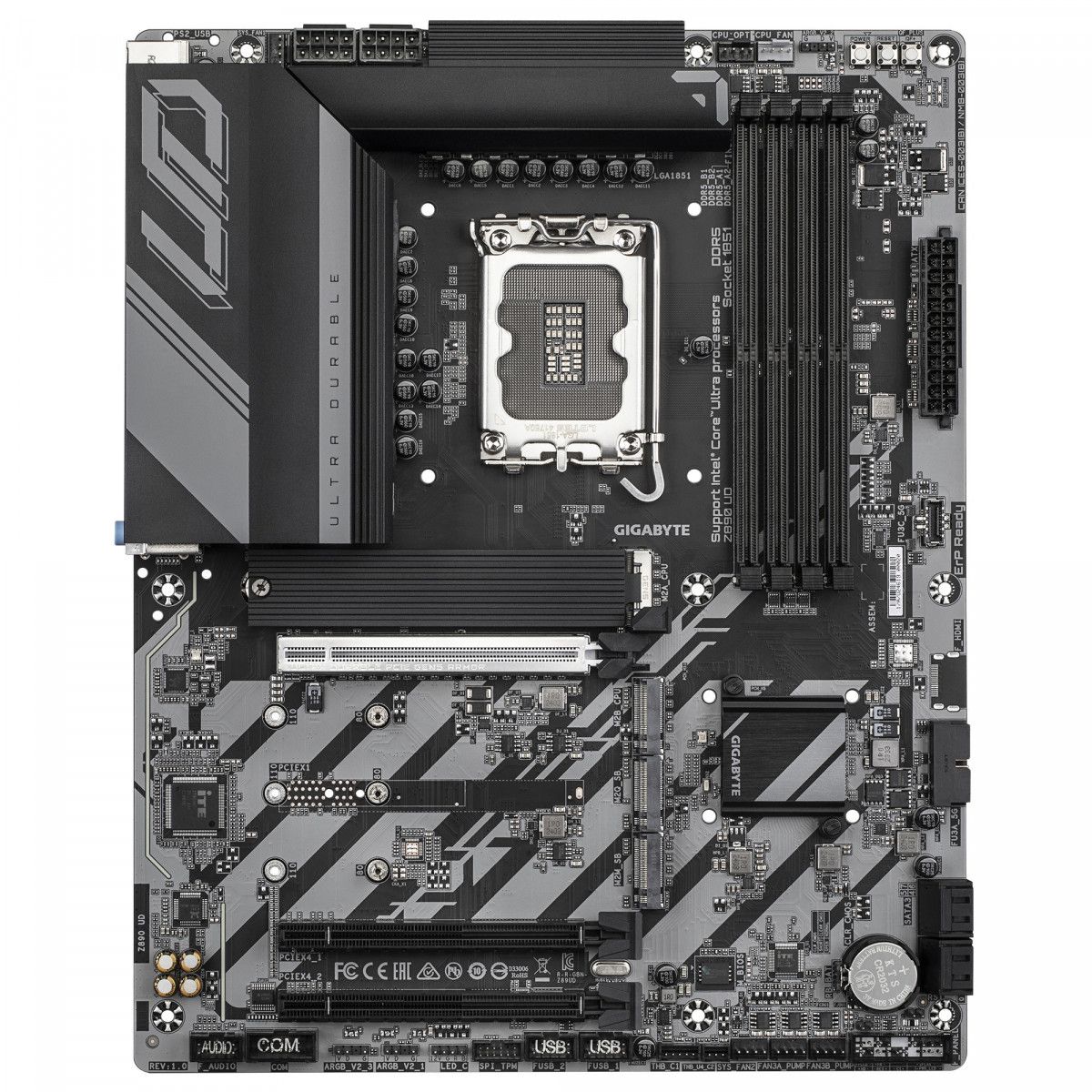

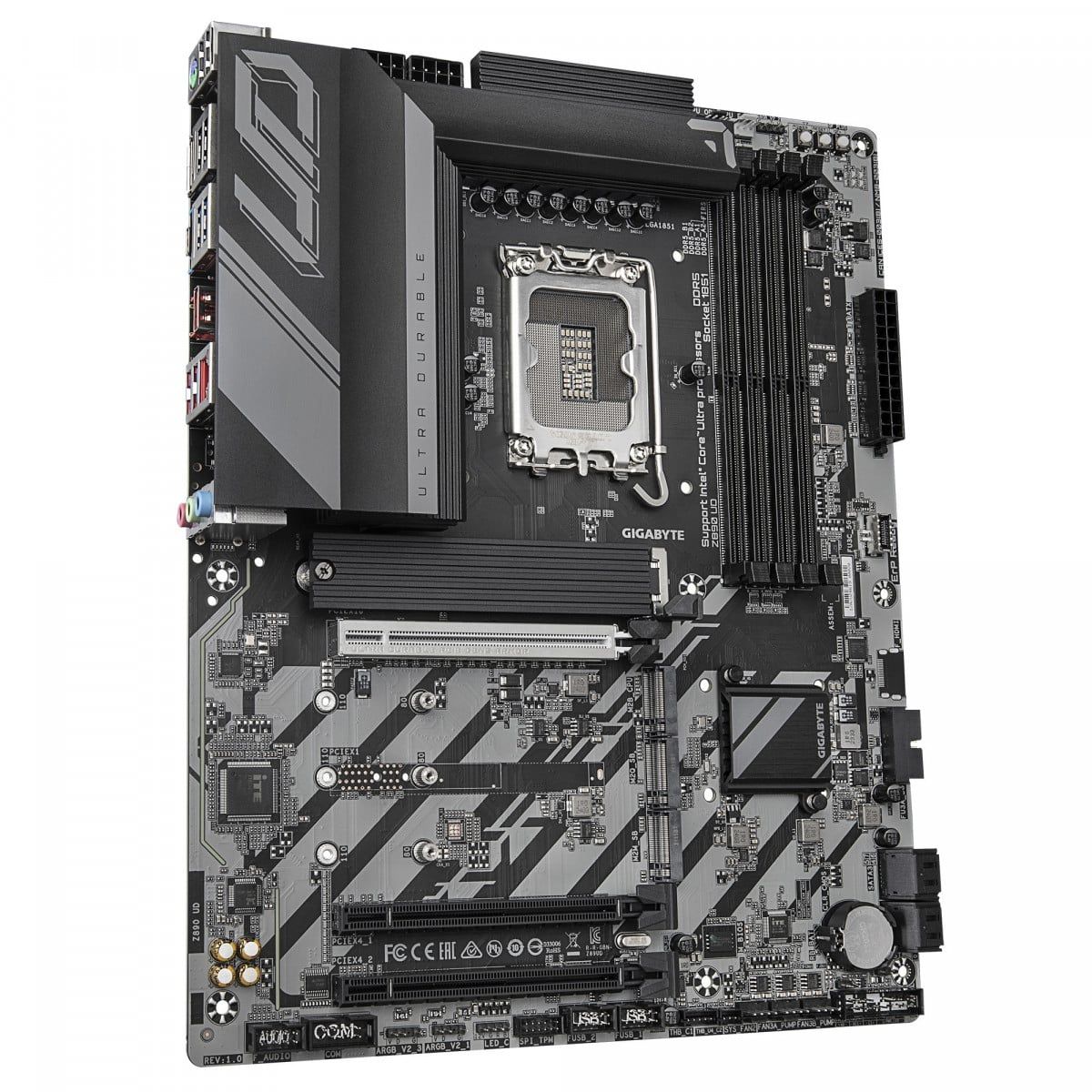

Mainboard GIGABYTE Z890 UD

Tình trạng: Hết hàng Thương hiệu: Gigabyte

Giá: 6,699,000₫

Số lượng:

Chia sẻ:

Chính sách bán hàng

Cam kết 100% chính hãng

Hỗ trợ 24/7

Thông tin thêm

Hoàn tiền 111% nếu hàng giả

Mở hộp kiểm tra nhận hàng

Đổi trả trong 7 ngày

Mô tả sản phẩm

Chipset: Intel Z890
Socket: Intel LGA 1851
Hỗ trợ CPU Intel® Core™ Ultra
Kích thước: ATX
Số khe RAM: 4 khe DDR5

Bảo Hành: 36 Tháng

THÔNG SỐ KỸ THUẬT

CPU	LGA1851 socket: Support for Intel® Core™ Ultra Processors
	L3 cache varies with CPU
	* Please refer to "CPU Support List" for more information.
Chipset	Intel® Z890 Express Chipset
Bộ nhớ	Support for DDR5 8800(O.C) /8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules.
	4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
	Dual channel memory architecture
Card đồ họa tích hợp	Integrated Graphics Processor-Intel® HD Graphics support:
	- 1 x USB4® USB Type-C® port, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@144 Hz
	* Support for DisplayPort 2.1 version
	- 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz
	* Support for DisplayPort 2.1 version
	(Graphics specifications may vary depending on CPU support.)
Âm thanh	Realtek® Audio CODEC
	High Definition Audio
	2/4/5.1/7.1-channel
	* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

LAN	Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Khe cắm mở rộng	CPU:
	- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
	* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
	Chipset:
	- 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1, PCIEX4_2)
	- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x1 (PCIEX1)

Giao diện lưu trữ	CPU:
	- 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU)
	- 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU)
	Chipset:
	- 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB)
	- 4 x SATA 6Gb/s connectors
	RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
	RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
USB	CPU:
	- 1 x USB4® USB Type-C® port on the back panel
	Chipset:
	- 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header
	- 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
	- 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
	Chipset+2 USB 2.0 Hubs:
	- 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
Kết nối I/O bên trong	1 x 24-pin ATX main power connector
	2 x 8-pin ATX 12V power connectors
	1 x CPU fan header
	1 x CPU fan/water cooling pump header
	2 x system fan headers
	2 x system fan/water cooling pump headers
	3 x addressable RGB Gen2 LED strip headers
	1 x RGB LED strip header
	3 x M.2 Socket 3 connectors
	4 x SATA 6Gb/s connectors
	1 x front panel header
	1 x front panel audio header
	1 x USB Type-C® header, with USB 3.2 Gen 1 support
	1 x USB 3.2 Gen 1 header
	2 x USB 2.0/1.1 headers
	2 x Thunderbolt™ add-in card connectors
	1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/ GC-TPM2.0 SPI V2 module only)
	1 x serial port header
	1 x power button
	1 x reset button
	1 x Q-Flash Plus button
	1 x reset jumper
	1 x Clear CMOS jumper

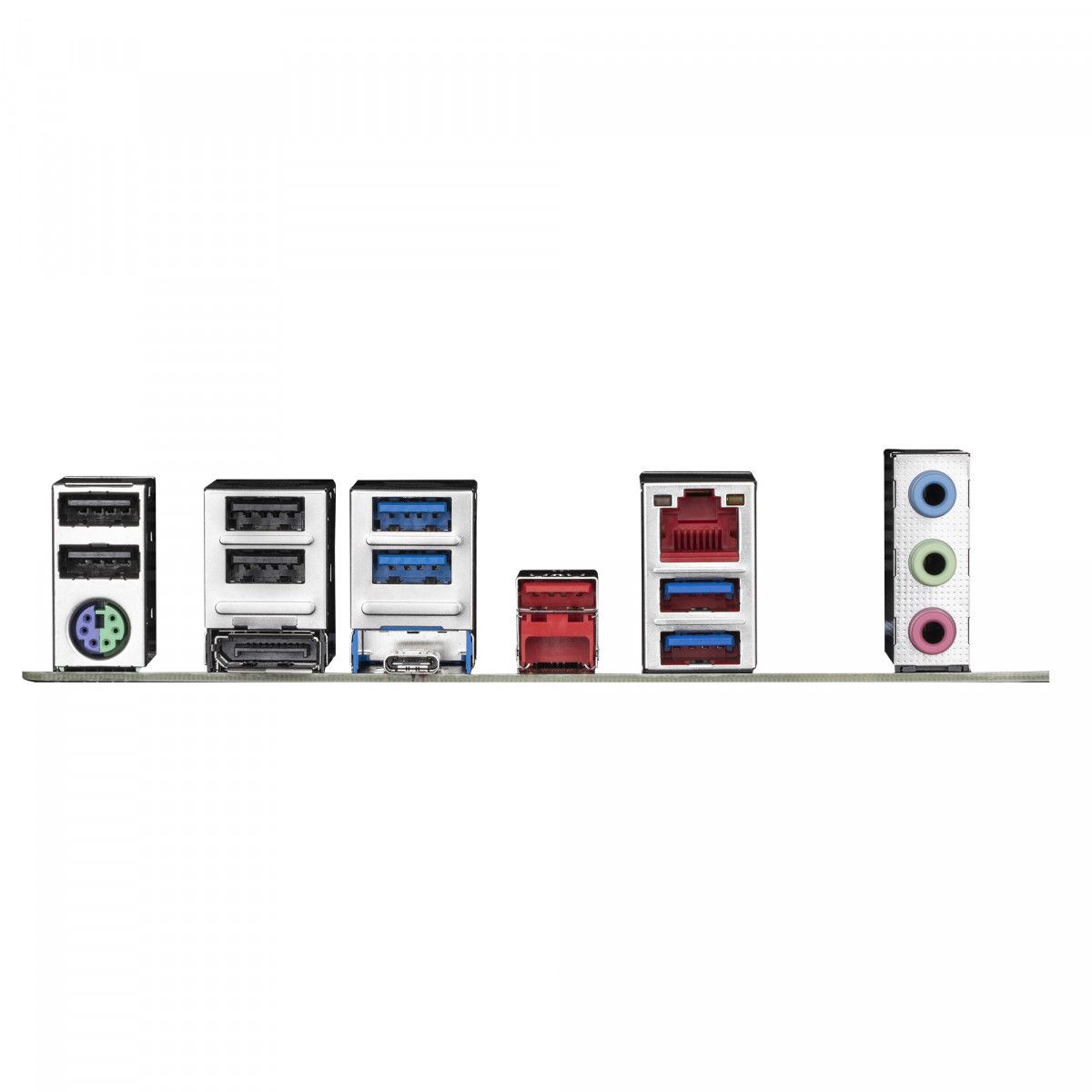

Kết nối bảng phía sau	4 x USB 2.0/1.1 ports
	1 x PS/2 keyboard/mouse port
	1 x DisplayPort (Note)
	4 x USB 3.2 Gen 1 ports
	1 x USB4® USB Type-C® port (DisplayPort (Note))
	1 x USB 3.2 Gen 2 Type-A port (red)
	1 x RJ-45 port
	2 x SMA antenna connectors (2T2R)
	3 x audio jacks
	(Note) Actual support may vary by CPU.
Điều khiển I/O	iTE® I/O Controller Chip
BIOS	1 x 256 Mbit flash
	Use of licensed AMI UEFI BIOS
	PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Hệ điều hành	Support for Windows 11 64-bit
Kích thước	ATX Form Factor; 30.5cm x 24.4cm
