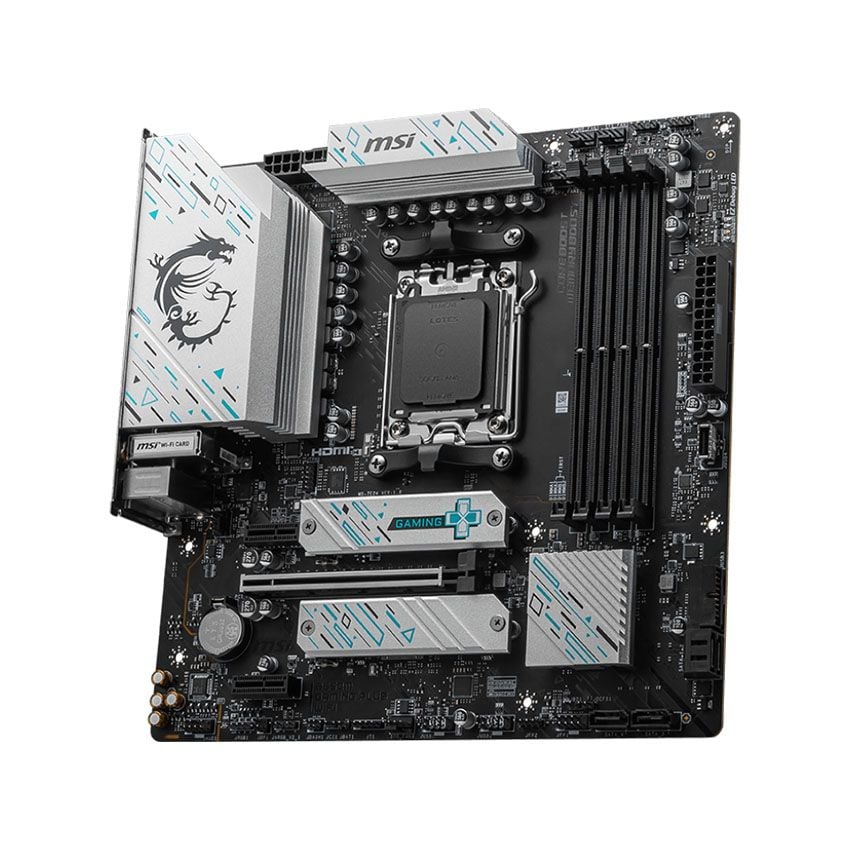

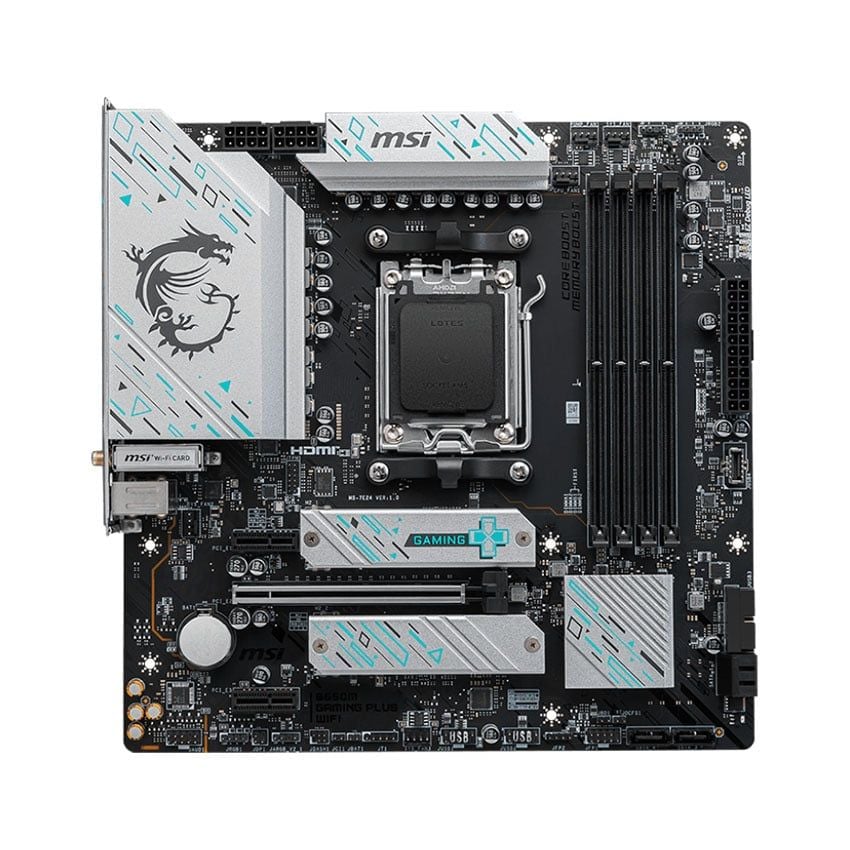

| Sản phẩm | Bo mạch chủ |
| Tên Hãng | MSI |
| CPU hỗ trợ | AMD |
| Chipset | B650 |
| RAM hỗ trợ | 4x DDR5 UDIMM, Maximum Memory Capacity 256GB |
| Memory Support DDR5 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz |
| Supports Dual-Channel mode |
| Supports non-ECC, un-buffered memory |
| Supports AMD EXPO™ |
| Max. overclocking frequency: |
| • 1DPC 1R Max speed up to 7200+ MHz |
| • 1DPC 2R Max speed up to 6000+ MHz |
| • 2DPC 1R Max speed up to 6000+ MHz |
| • 2DPC 2R Max speed up to 5400+ MHz |
| Khe cắm mở rộng | 1x PCI-E x16 slot |
| • Supports x16 (For Ryzen™ 7000 Series processors) |
| • Supports x8 (For Ryzen™ 7 8700G and Ryzen™ 5 8600G processors) |
| • Supports x4 (For Ryzen™ 5 8500G processor) |
| 2x PCI-E x1 slot |
| PCI_E1 Gen PCIe 3.0 supports up to x1 (From Chipset) |
| PCI_E2 Gen PCIe 4.0 supports up to x16 (From CPU) |
| PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset) |
| Ổ cứng hỗ trợ | 2x M.2 |
| M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices |
| M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices |
| 4x SATA 6G |
| Cổng kết nối (Internal) | 1x Power Connector(ATX_PWR) |
| 2x Power Connector(CPU_PWR) |
| 1x CPU Fan |
| 1x Pump Fan |
| 3x System Fan |
| 2x Front Panel (JFP) |
| 1x Chassis Intrusion (JCI) |
| 1x Front Audio (JAUD) |
| 1x Tuning Controller connector(JDASH) |
| 2x Addressable V2 RGB LED connector (JARGB_V2) |
| 2x RGB LED connector(JRGB) |
| 1x TPM pin header(Support TPM 2.0) |
| 4x USB 2.0 ports |
| 2x USB 3.2 Gen1 Type A ports |
| 1x USB 3.2 Gen2 Type C ports |
| Cổng kết nối (Back Panel) | DisplayPort |
| 2.5G LAN |
| USB 3.2 Gen 2 10Gbps (Type-A) |
| USB 3.2 Gen 1 5Gbps (Type-A) |
| Wi-Fi / Bluetooth |
| Flash BIOS Button |
| HDMI™ |
| USB 3.2 Gen 2 10Gbps (Type-A) |
| USB 3.2 Gen 2 10Gbps (Type-C) |
| Audio connectors |
| LAN / Wireless | Realtek® RTL8125BG 2.5Gbps LAN |
| |
| AMD Wi-Fi 6E |
| The Wireless module is pre-installed in the M.2 (Key-E) slot |
| Supports MU-MIMO TX/RX |
| Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands |
| Supports 802.11 a/ b/ g/ n/ ac/ ax |
| |
| Supports Bluetooth® 5.3 |
| Kích cỡ | mATX |
| 243.84mmx243.84mm |
