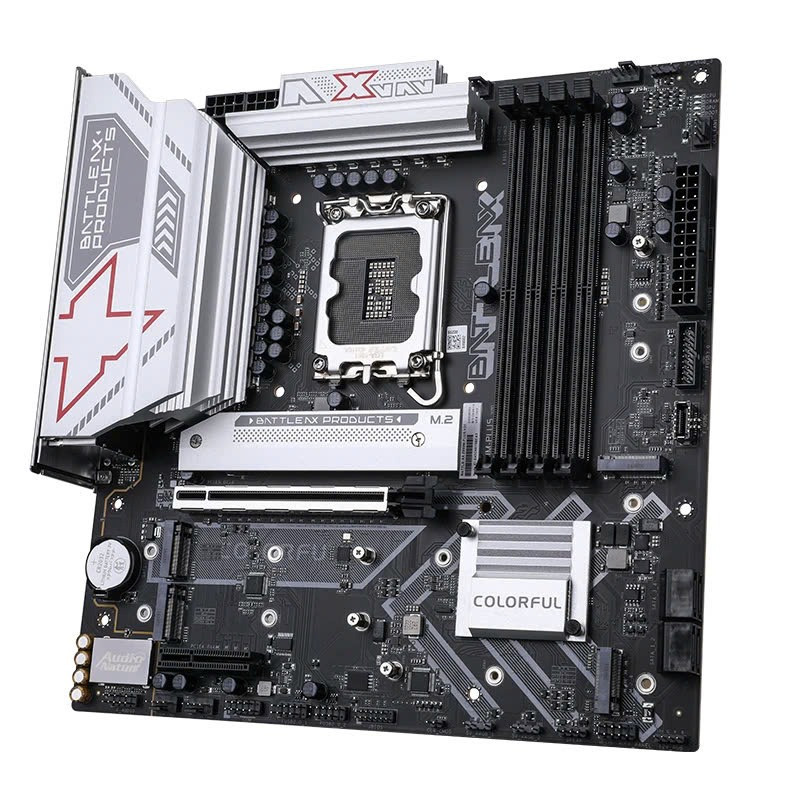

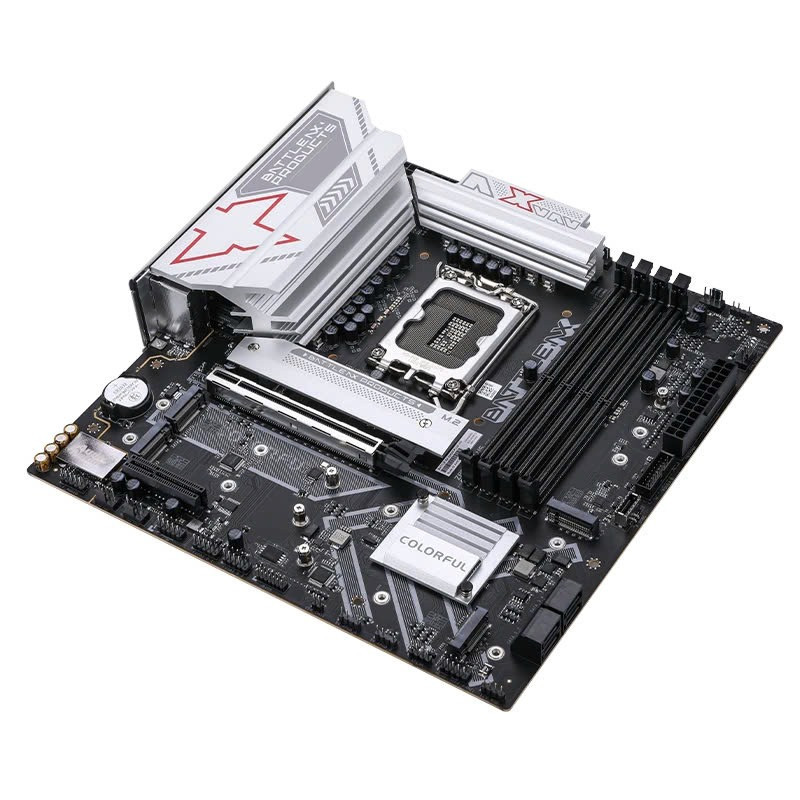

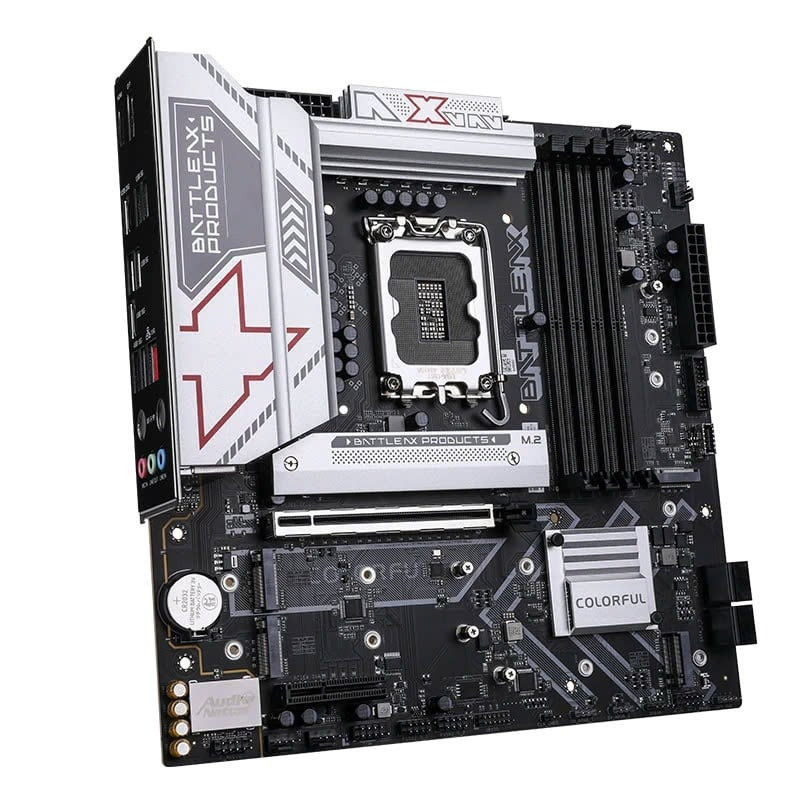

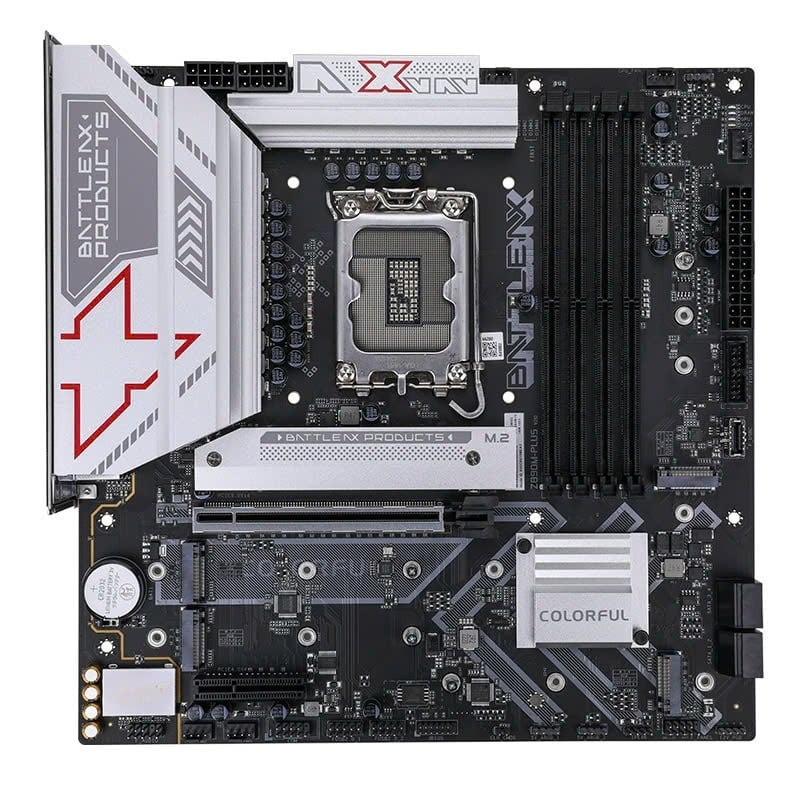

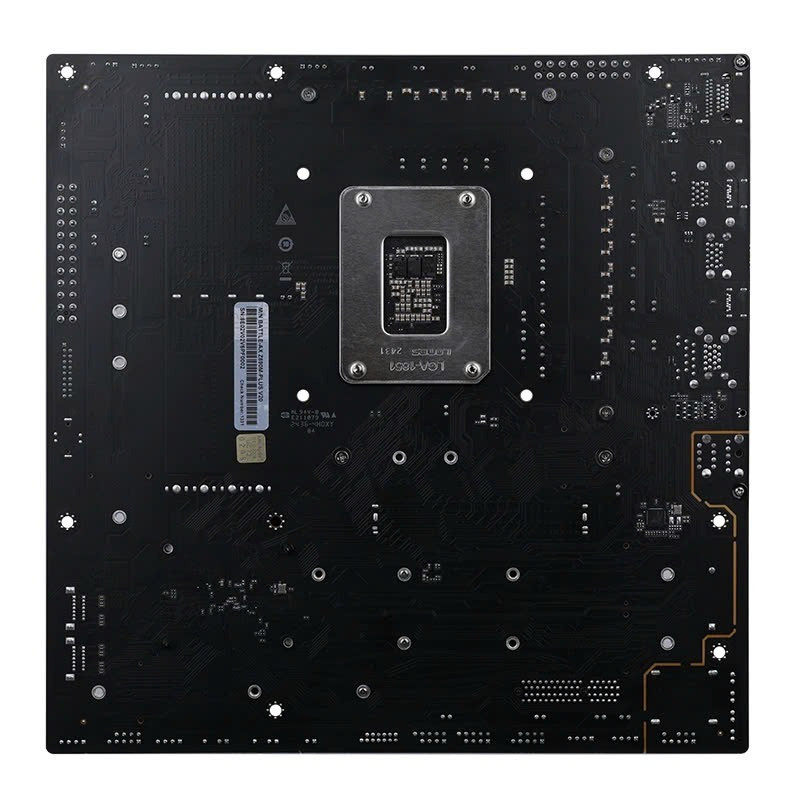

COLORFUL BATTLE-AX Z890M-PLUS V20

Thương hiệu

Colorful

Model

BATTLE-AX Z890M-PLUS V20

Chipset

Intel Z890

Hỗ trợ CPU

Supports Intel® Core™ Ultra processors that fit the LGA 1851 slot of the motherboard

Bộ nhớ

4 DDR5 memory slots, supporting up to 192 GB of memory (a single slot can support a capacity of up to 48 GB)

- Support DDR5-8400(OC)/8200(OC)/8000(OC)/7800(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400/6200/6000/5800/5600/5400/5200/5000/4800MHz memory

- Support Intel® Extreme Memory Profile (XMP) memory technology

- Support dual channel memory technology

SATA Ports

5 M.2 slots and 4 SATA 6Gb/s hard disk interfaces, Support the creation of RAID 0, RAID 1, RAID 5, and RAID 10 disk arrays using SATA or M.2 NVMe hard disk devices

- M.2_1 slot: support 2242/2260/2280 M.2 SSD (PCIe 5.0 x4, CPU channel)

- M.2_2 slot: support 2242/2280/22110 M.2 SSD (PCIe 4.0 x4, CPU channel)

- M.2_3 slot: support 2242/2280 M.2 SSD (PCIe 4.0 x4, PCH channel)

- M.2_4 slot: support 2242/2280 M.2 SSD (PCIe 4.0 x4, PCH channel)

- M.2_5 slot: support 2242/2260/2280 M.2 SSD (PCIe 4.0 x4, PCH channel)

Khe mở rộng

1×PCIe 5.0 x16 slot

1×PCIe 4.0 x4 slot

LAN

RTL8125BG 2.5Gbit LAN

Âm thanh

Realtek ALC897 high fidelity decoding chip, Support up to 5.1 channels

Đầu nối I / O nội bộ

- 2×USB 2.0 pins can expand 4 USB 2.0 Type-A interfaces

- 1×USB 3.2 Gen 1 pin can expand 2 USB 3.2 Gen 1 5Gbps Type-A interfaces

- 1×USB 3.2 Gen 2 Type-C slot can expand 1 USB 3.2 Gen 2 10Gbps Type-C interface

- 1×CPU fan pin

- 3×System fan pins

- 1×Water cooling pump pin

- 3×5V 3-pin ARGB pins

- 1×12V 4-pin RGB pin

- 1×Front audio pin

- 1×Front panel pin

- 1×Speaker pin

- 1×COM port pin

- 1×Clear CMOS jumper

- 1×BIOS burner pin

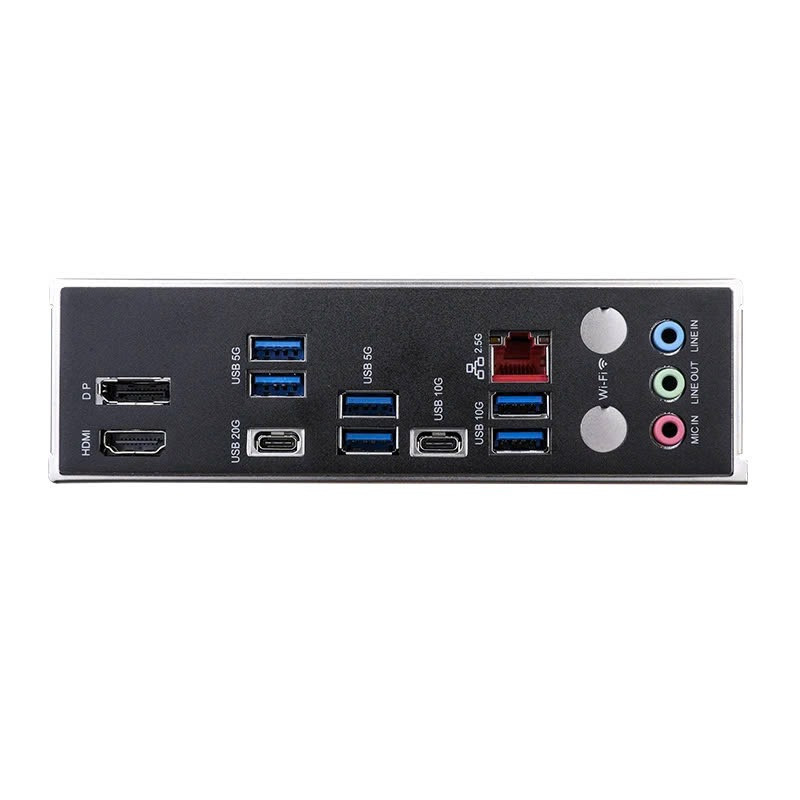

Kết nối mặt sau

- 4×USB 3.2 Gen 1 5Gbps Type-A interfaces

- 2×USB 3.2 Gen 2 10Gbps Type-A interfaces

- 1×USB 3.2 Gen 2 10Gbps Type-C interface

- 1×USB 3.2 Gen 2x2 20Gbps Type-C interface

- 1×DP 1.4 interface, Supports up to 8K 60Hz resolution

- 1×HDMI 2.0 interface, Supports up to 4K 60Hz resolution

- 1×2.5G network interface

- 3×Audio interfaces

>BIOS

128M UEFI, support multiple languages

Kích thước PCB

M-ATX

245 x 245 mm
