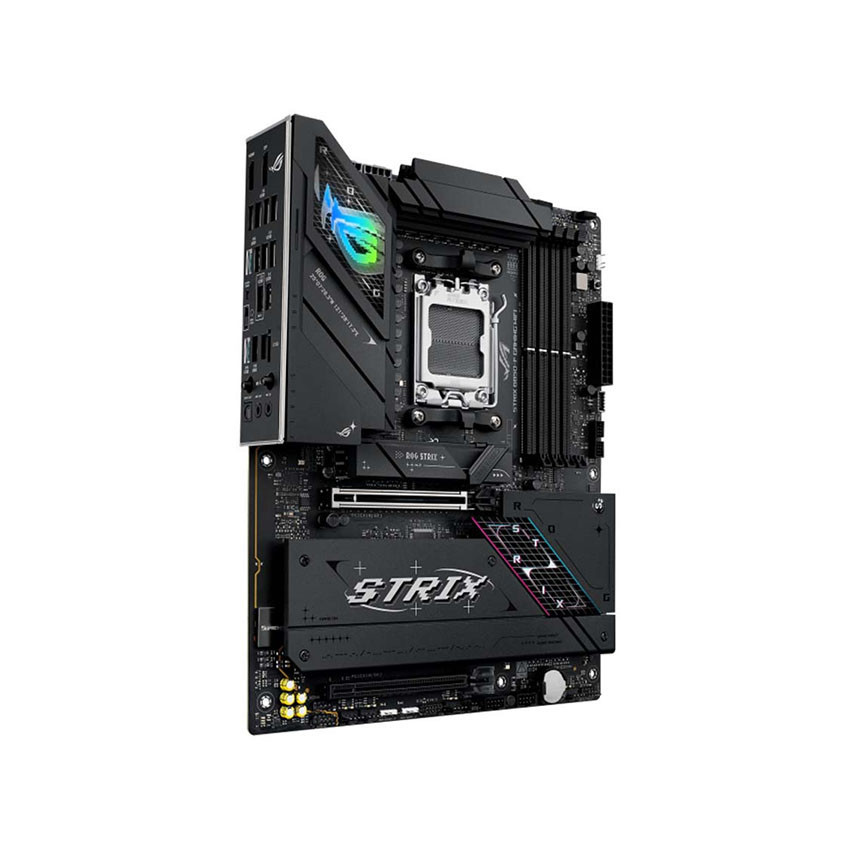

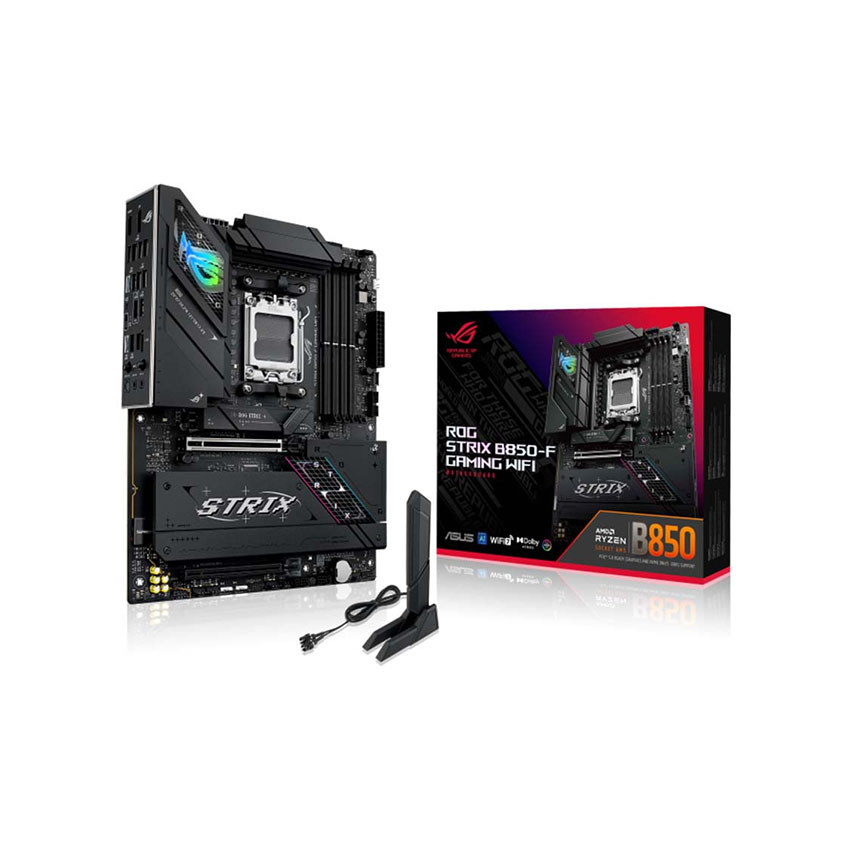

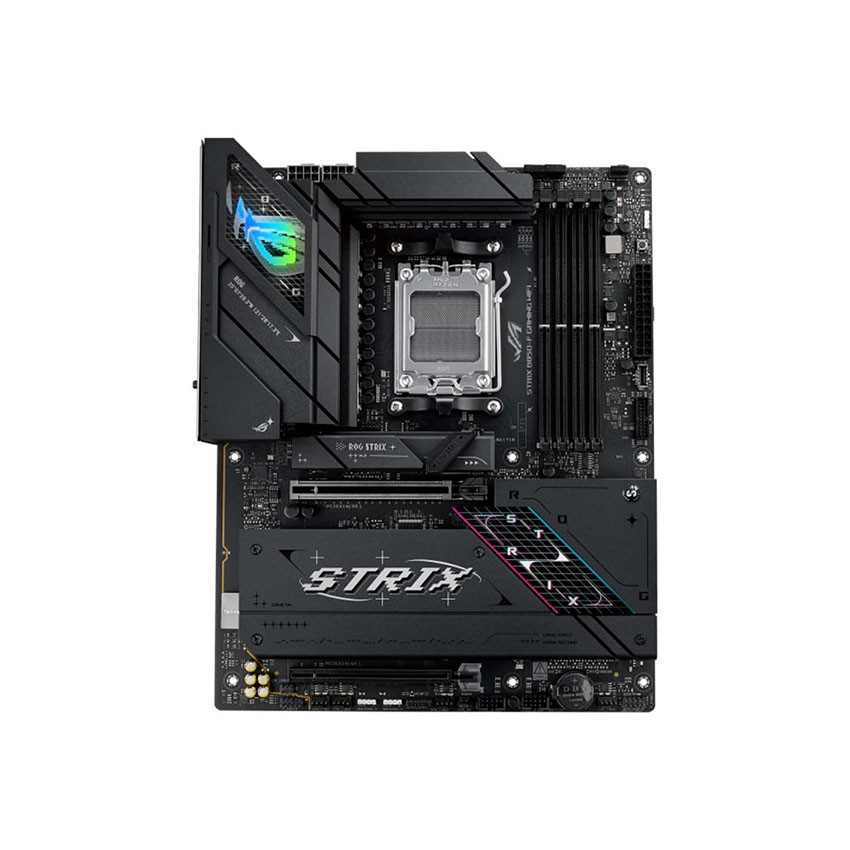

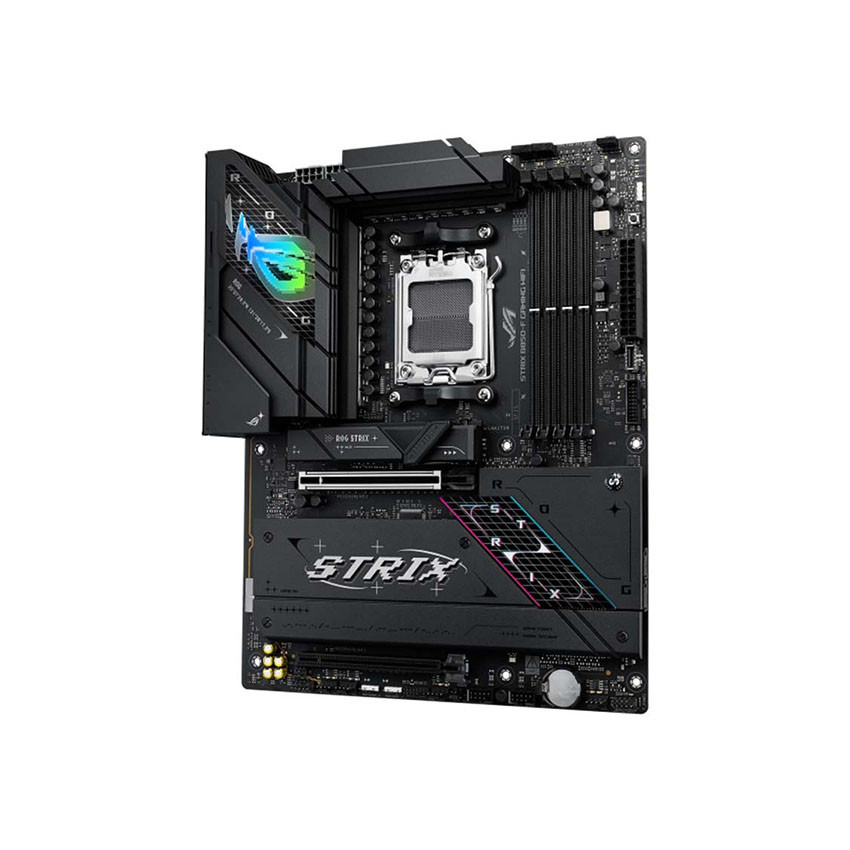

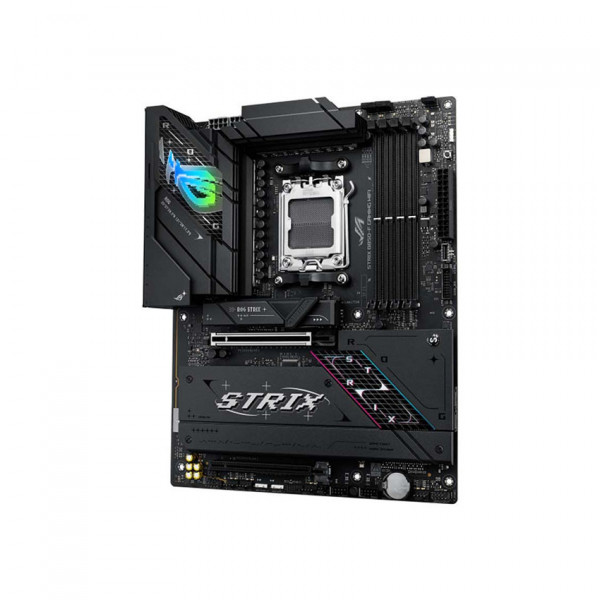

Mainboard ASUS ROG STRIX B850-F GAMING WIFI

9.399.000 đ

10.990.000 đ

Tiết kiệm: 1.591.000Đ

Bảo hành: 36 Tháng TƯ VẤN NÂNG CẤP

Mô tả sản phẩm

  • Socket: AMD B850
  • Hỗ trợ CPU: AMD Socket AM5 Ryzen 9000 & 8000 & 7000
  • Hỗ trợ Ram: 4 x DDR5 (Max 192GB) 8000+MT/s (OC)
  • Kích thước: M-ATX

Số lượng:

THÔNG SỐ KỸ THUẬT

CPU AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors*
* Refer to ASUS Support for CPU support list.
Chipset AMD B850 Chipset
Memory 4 x DIMM slots, max. 192GB, DDR5
Supports up to 8000+MT/s(OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors
ECC and Non-ECC, Un-buffered DIMM
Dual channel memory architecture
Supports AMD Extended Profiles for Overclocking (EXPO™)
ASUS Enhanced Memory Profile (AEMP)
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration. Refer to ASUS Support for more details.
Graphics 1 x DisplayPort (Supports max. 8K@30Hz as specified in DisplayPort 1.4)
1 x HDMI™ port (Supports 4K@60Hz as specified in HDMI 2.1)
* Graphics specifications may vary between CPU types. Refer to AMD CPU specifications.
Expansion Slots AMD Ryzen™ 9000 & 7000 Series Desktop Processors:
1 x PCIe 5.0 x16 slot with Q-Release Slim
AMD Ryzen™ 8000 Series Desktop Processors:
1 x PCIe 5.0 x16 slot with Q-Release Slim (supports PCIe 4.0 x8/x4 mode)
AMD B850 Chipset:
1 x PCIe 4.0 x16 slot (supports x4 mode)*
* Specifications vary by CPU types. Refer to ASUS Support.
Storage Total supports 4 x M.2 slots and 2 x SATA 6Gb/s ports
AMD Ryzen™ 7000 & 9000 Series Desktop Processors:
M.2_1: PCIe 5.0 x4
M.2_2: PCIe 5.0 x4
AMD Ryzen™ 8000 Series Desktop Processors:
M.2_1: PCIe 4.0 x4
M.2_2: PCIe 4.0 x4/x2
AMD B850 Chipset:
M.2_3: PCIe 4.0 x4
M.2_4: PCIe 4.0 x4
* AMD RAIDXpert2 Technology supports PCIe RAID 0/1/5/10 and SATA RAID 0/1. RAID 5 is only supported by AMD Ryzen™ 9000 series CPU.
Ethernet 1 x Intel® 2.5Gb Ethernet
ASUS LANGuard
Wireless & Bluetooth® Wi-Fi 7 (802.11be), 2x2
Supports 2.4/5/6GHz frequency bands
Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.
Bluetooth® v5.4
* Wi-Fi features vary by OS version. Refer to product specifications for details.

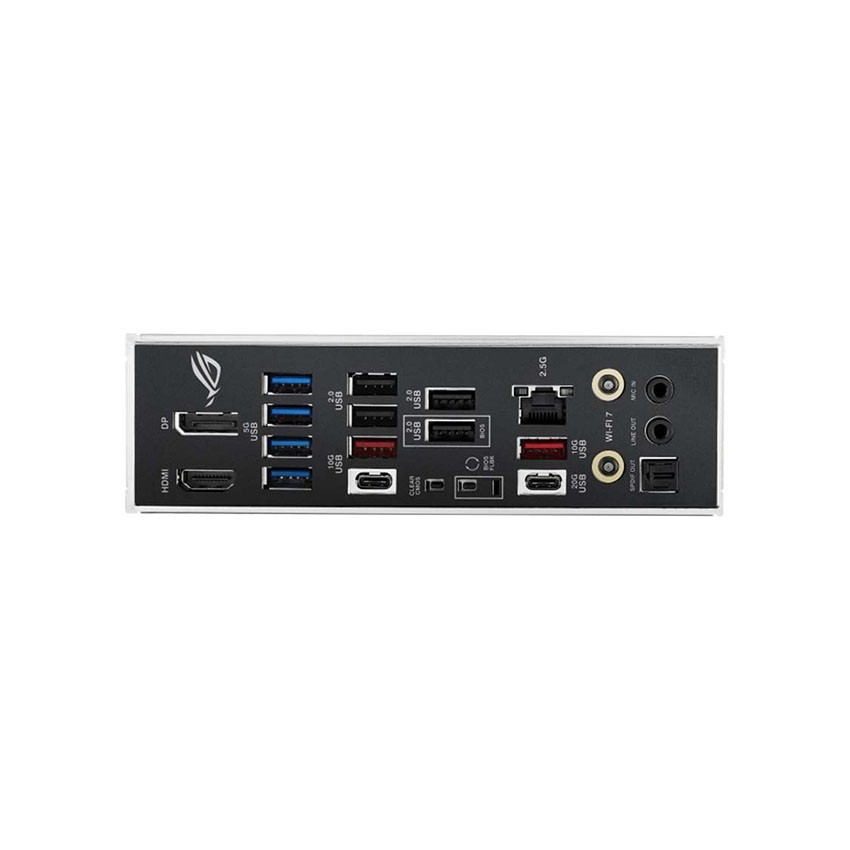

USB Rear USB:
1 x USB 20Gbps (USB Type-C®)
3 x USB 10Gbps (2 x Type-A + 1 x Type-C®)
4 x USB 5Gbps (4 x Type-A)
4 x USB 2.0 (4 x Type-A)
Front USB:
1 x USB 10Gbps (Type-C®)
1 x USB 5Gbps header (supports 2 USB 5Gbps ports)
2 x USB 2.0 headers (supports 4 USB 2.0 ports)
Audio ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
Impedance sense, supports up to 32-Bit/384 kHz playback on front panel
Dolby Atmos and premium audio features included.
Special Features ASUS Q-Design (M.2 Q-Latch, Q-Release, Q-Antenna)
Aura Sync with Addressable Gen 2 headers
BIOS FlashBack™ and Clear CMOS button
Pre-mounted I/O shield
ASUS EZ DIY features included.
Accessories 2 x SATA 6Gb/s cables
1 x ASUS WiFi Q-Antenna
1 x USB drive with utilities and drivers
ROG stickers, key chain, and more.
Form Factor ATX Form Factor (12 x 9.6 inches)
