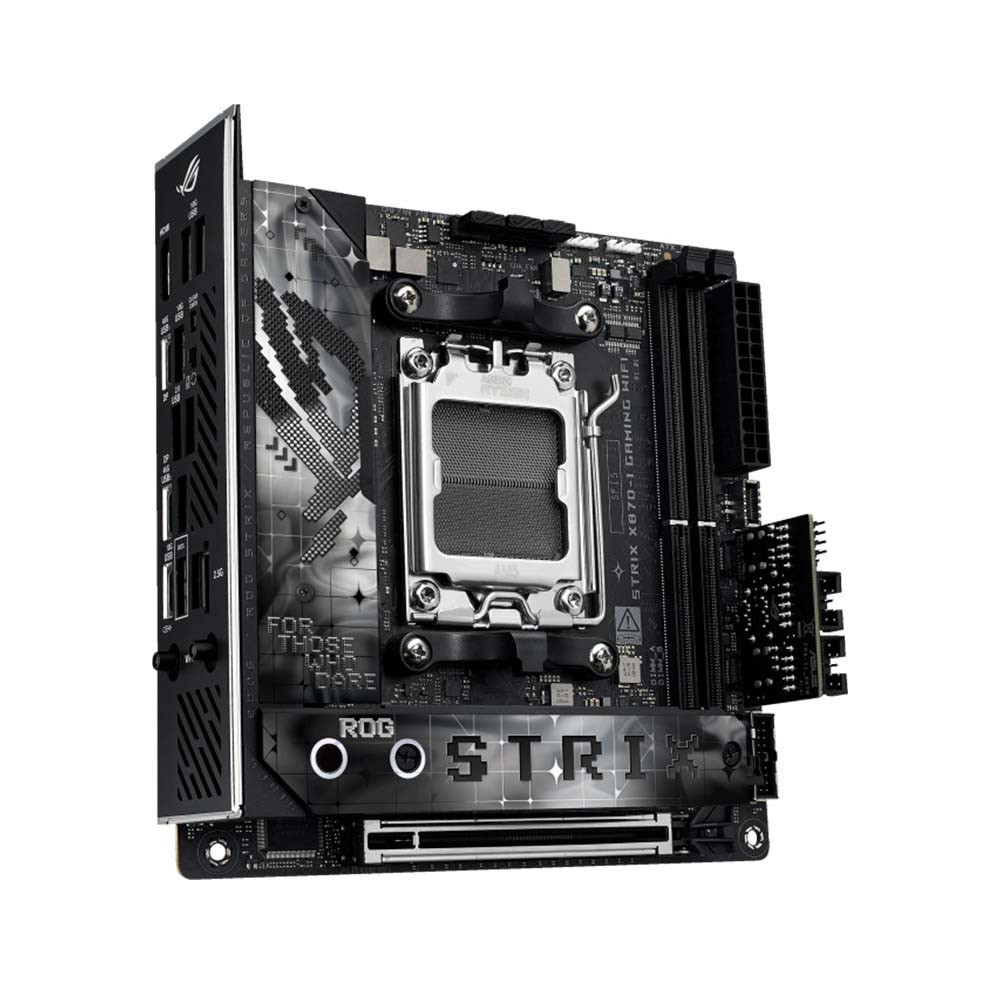

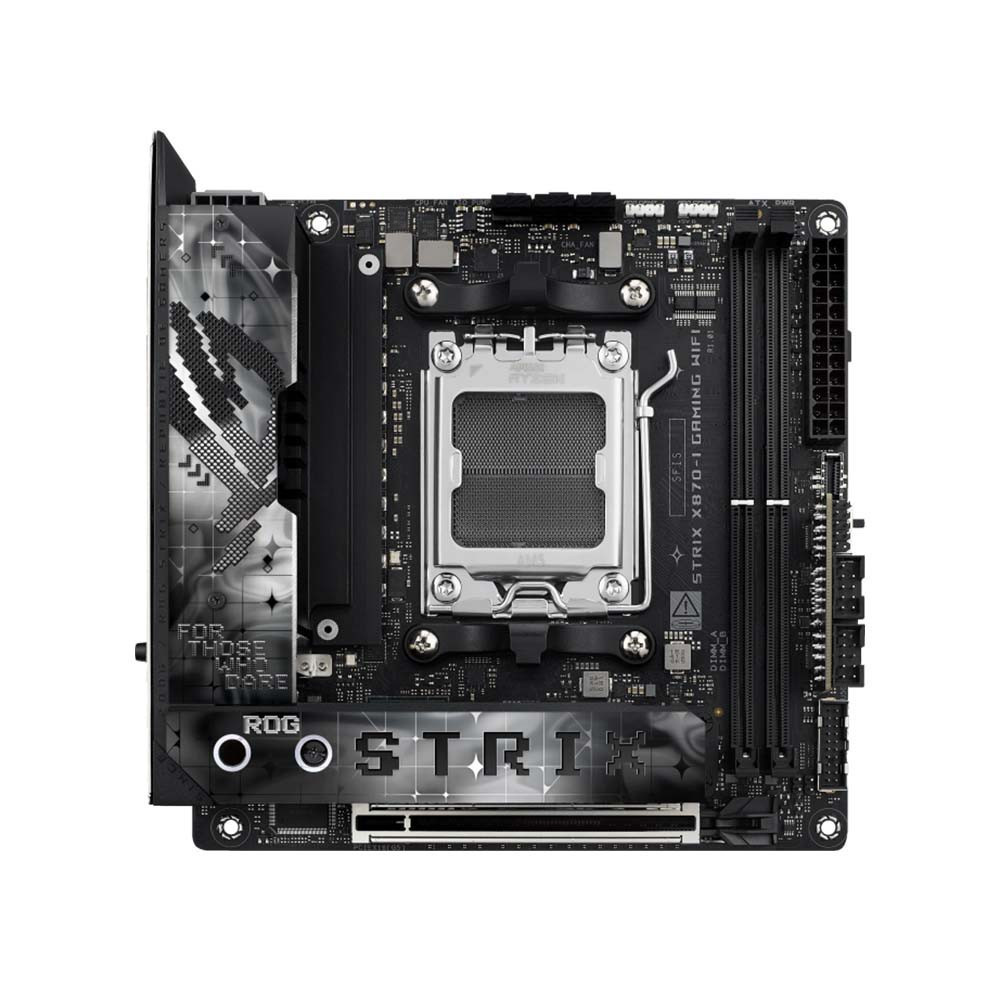

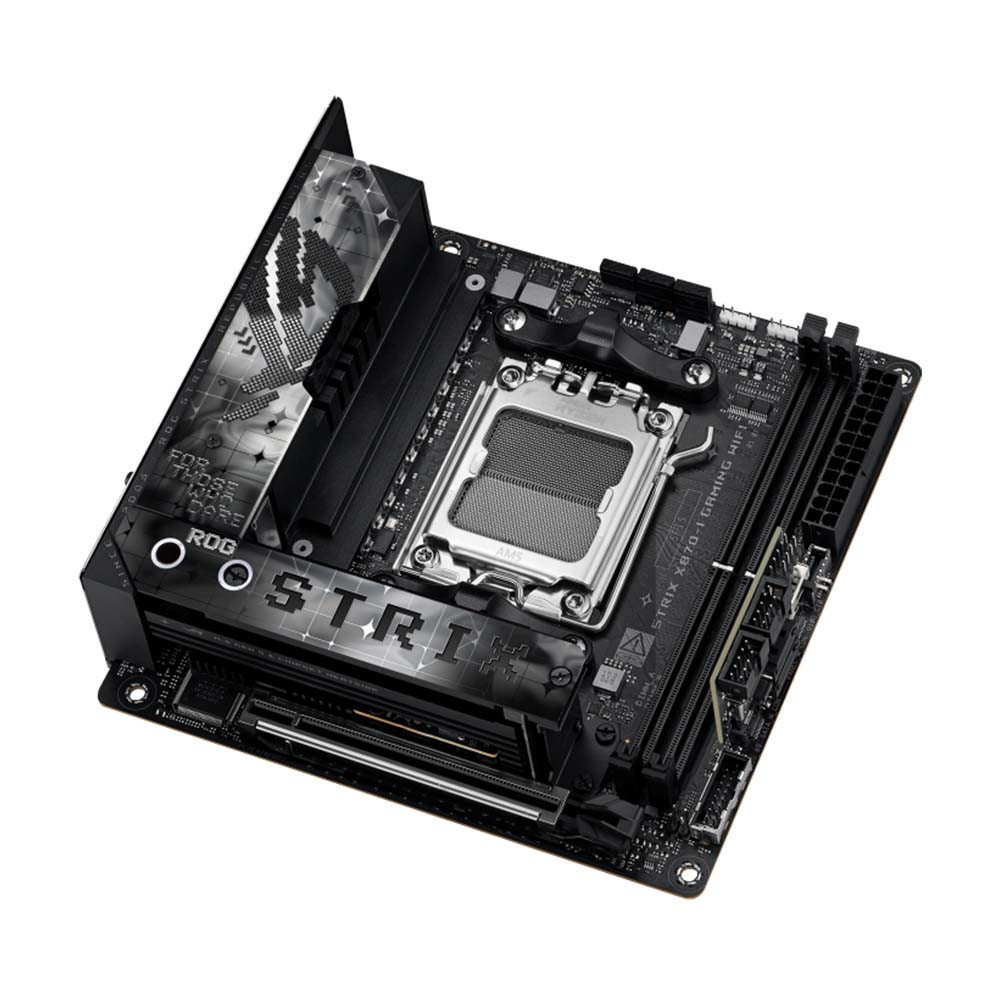

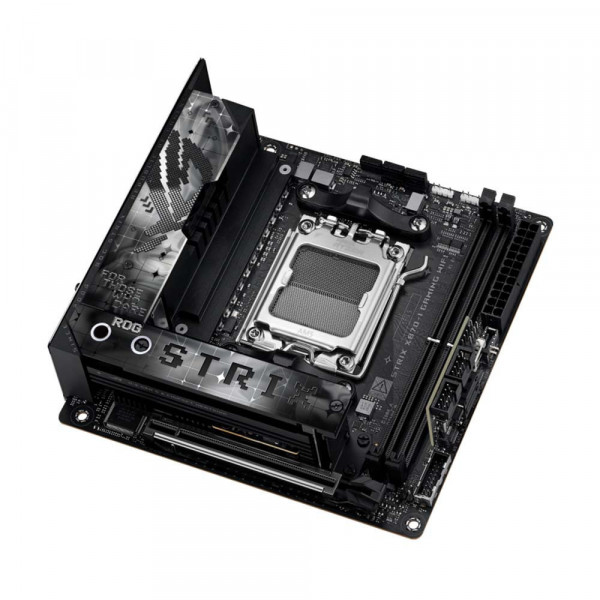

Mainboard Asus ROG STRIX X870-I GAMING WIFI

MODEL

ROG STRIX X870-I GAMING WIFI

CPU

AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors

CHIPSET

AMD X870

MEMORY

2 x DIMM slots, max. 128GB, DDR5

Supports up to

8400+MT/s(OC) with Ryzen™ 9000 Series Processors,

8600+MT/s(OC) with Ryzen™ 8000 Series Processors,

8000+MT/s(OC) with Ryzen™ 7000 Series Processors,

ECC and Non-ECC Un-buffered DIMM*"

Dual channel memory architecture

Supports AMD Extended Profiles for Overclocking (EXPO™)

ASUS Enhanced Memory Profile (AEMP)

GRAPHICS

1 x HDMI port

2 x USB4 (40Gbps) ports support USB Type-C display outputs

EXPANSION SLOTS

AMD Ryzen 9000 & 7000 Series Desktop Processors

1 x PCIe 5.0 x16 slot

AMD Ryzen 8000 Series Desktop Processors

1 x PCIe 4.0 x16 slot (supports x8/x4 mode)

STORAGE

Supports 2 x M.2 slots and 2 x SATA 6Gb/s ports:

AMD Ryzen 9000 & 7000 Series Desktop Processors

M.2_1 slot (Key M), type 2280(supports PCIe 5.0 x4 mode)

AMD Ryzen 8000 Series Desktop Processors

M.2_1 slot (Key M), type 2280(supports PCIe 4.0 x4 mode)

AMD X870 Chipset

M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4)

2 x SATA 6Gb/s ports

ETHERNET

1 x Intel 2.5Gb Ethernet

WIRELESS & BLUETOOTH

Wi-Fi 7 2x2 (802.11be) + Bluetooth v5.4

USB

Rear USB (Total 10 ports)

2 x USB4 (40Gbps) port(s) (2 x USB Type-C)

5 x USB 10Gbps port(s) (4 x Type-A + 1 x USB Type-C)

3 x USB 2.0 port(s) (3 x Type-A)

Front USB (Total 3 ports)

1 x USB 10Gbps connector (supports USB Type-C)

1 x USB 5Gbps header supports 2 additional USB 5Gbps ports

ROG STRIX HIVE II (Total 2 ports)

2 x USB 10Gbps port ( 1 x Type-A + 1 x USB Type-C)

ROG FPS Card (Total 3 ports)

2 x USB 2.0 headers additional 3 USB 2.0 ports

AUDIO

ROG Strix Hive II Audio Features

- ROG Hyper-Grounding Technology

- ESS SABRE9260Q DAC

- Silver-plated audio jacks

- Dedicated audio PCB layers

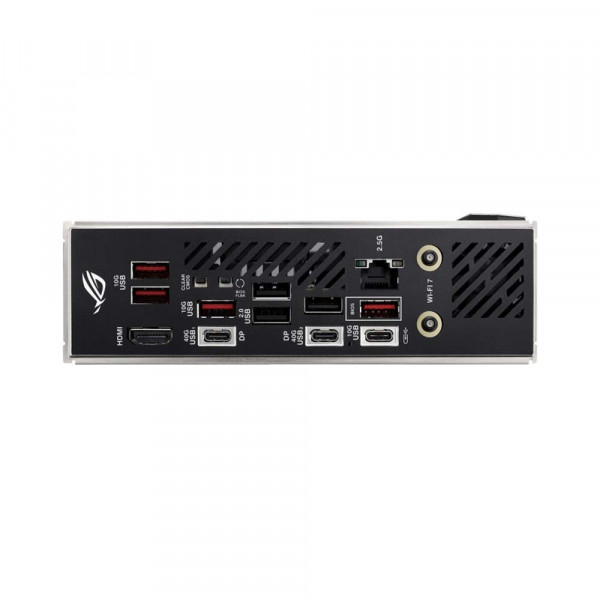

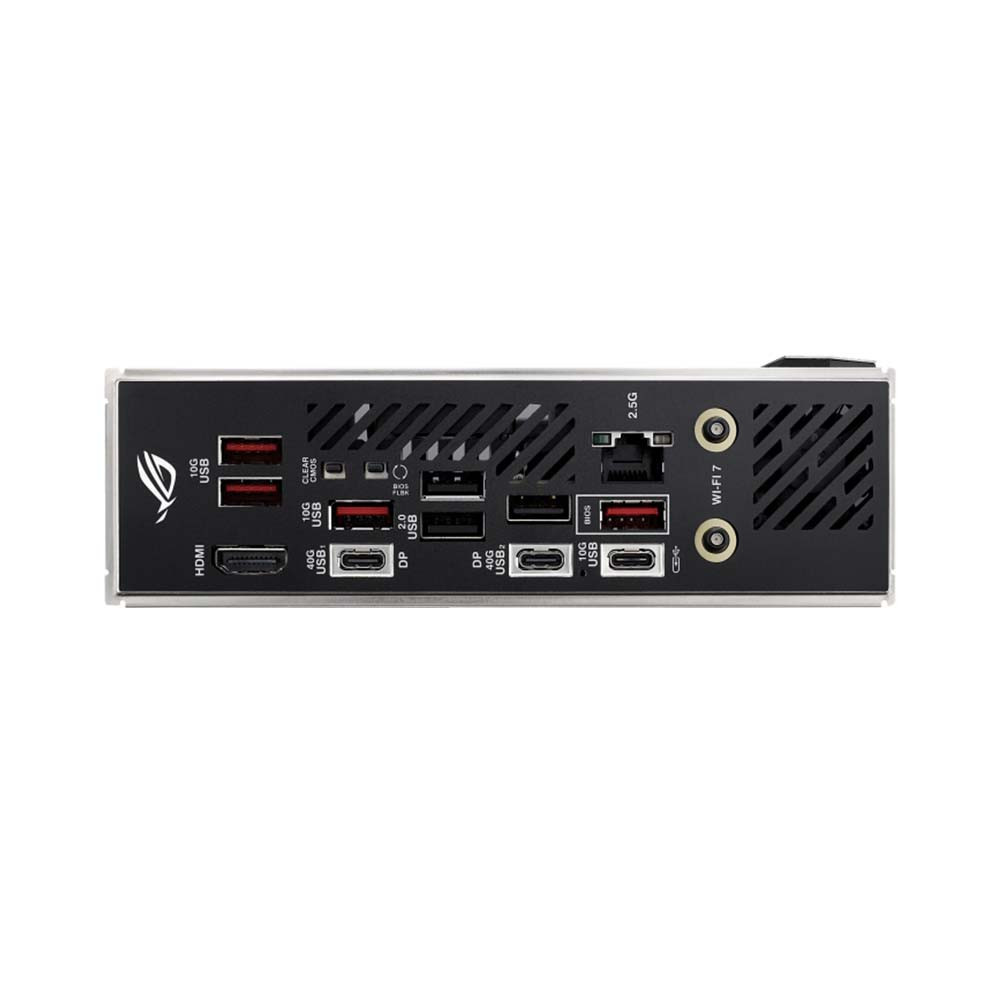

BACK PANEL I/O PORTS

2 x USB4 (40Gbps)(2 x USB Type-C)

5 x USB 10Gbps port(s) (4 x Type-A + 1 x USB Type-C, 1 port supports ROG STRIX HIVE II)

3 x USB 2.0 port(s) (2 x Type-A)

1 x HDMI™ port

1 x Wi-Fi module

1 x Intel 2.5Gb Ethernet port

1 x BIOS FlashBack™ button

1 x Clear CMOS button

INTERNAL I/O CONNECTORS

Fan and Cooling Related

1 x 4-pin CPU Fan header(s)

1 x 4-pin AIO Pump header(s)

1 x 4-pin Chassis Fan header(s)

Power Related

1 x 24-pin Main Power connector

1 x 8-pin +12V CPU Power connector

Storage Related

2 x M.2 slots (Key M)

USB

1 x USB 10Gbps connector (supports USB Type-C )

1 x USB 5Gbps header support(s)

Miscellaneous

2 x Addressable Gen 2 headers

1 x 2-pin Power Button header

1 x Thermal Sensor header

2 x USB Type-C connectors to install ROG FPS card

ROG FPS card

2 x SATA 6Gb/s ports

1 x CPU Over Voltage jumper

1 x Front Panel header

1 x Alteration PCIe Mode switch

2 x USB 2.0 headers

SPECIAL FEATURES

ASUS Q-Design

- M.2 Q-Latch

- PCIe Slot Q-Release Slim (with PCIe SafeSlot)

- Q-Antenna

- Q-DIMM

- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])

- Q-Slot

ASUS Thermal Solution

- M.2 heatsink

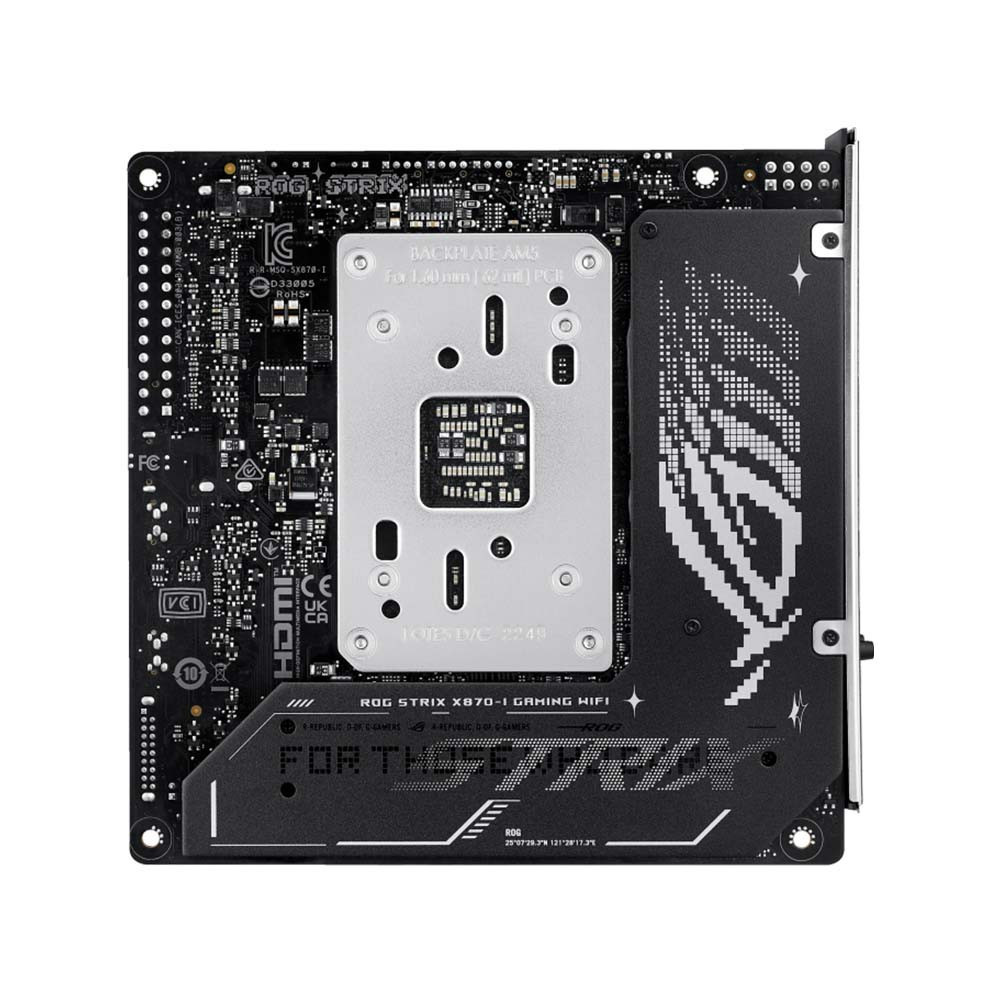

- Aluminum backplate

ASUS EZ DIY

- BIOS FlashBack™ button

- BIOS FlashBack™ LED

- Clear CMOS button

- ProCool II

- Pre-mounted I/O shield

- SafeSlot

- SafeDIMM

Aura Sync

- Addressable Gen 2 header(s)

ROG STRIX HIVE II

1 x USB Type-C connects to motherboard

2 x USB 10Gbps port ( 1 x Type-A + 1 x USB Type-C)

1 x Headphone jack with mic in

1 x Power button

1 x FlexKey button

1 x Volume control knob with mute button Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])

SOFTWARE FEATURES

ROG Exclusive Software

- ROG CPU-Z

- Dolby Atmos

ASUS Exclusive Software

Armoury Crate

- AIDA64 (60 days free trial)

- Aura Creator

- Aura Sync

- Fan Xpert 4 (with AI Cooling II)

- GameFirst

- HWiNFO

- Power Saving

ASUS Driver Hub

ASUS GlideX

Adobe Creative Cloud (Free Trial)

Norton 360 for Gamers (60 Days Free Trial)

WinRAR (40 Days Free Trial)

UEFI BIOS

AI Overclocking Guide

ASUS EZ DIY

- ASUS CrashFree BIOS 3

- ASUS EZ Flash 3

- ASUS UEFI

BIOS EZ Mode

- ASUS

MyHotkey

FlexKey

Dynamic OC Switcher

BIOS

256 Mb Flash ROM, UEFI AMI BIOS

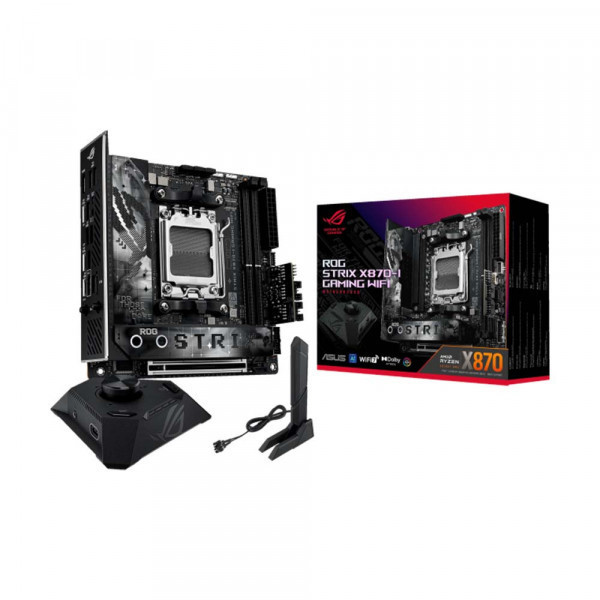

ACCESSORIES

Cables

1 x Panel cable

1 x ROG USB2.0 splitter cable

2 x SATA 6Gb/s cables

ROG FPS Card

1 x ROG FPS Card

ROG STRIX HIVE II

1 x ROG STRIX HIVE II

1 x USB Type-C power connection cable

Miscellaneous

1 x ASUS WiFi Q-Antenna

1 x Cable ties package

1 x M.2 Q-Latch package(s)

1 x ROG key chain

1 x ROG Strix stickers

1 x M.2 rubber package(s)

Documentation

1 x Quick start guide

OPERATING SYSTEM

Windows 11 64-bit

FORM FACTOR

Mini-ITX Form Factor

6.7 inch x 6.7 inch (17 cm x 17 cm)
