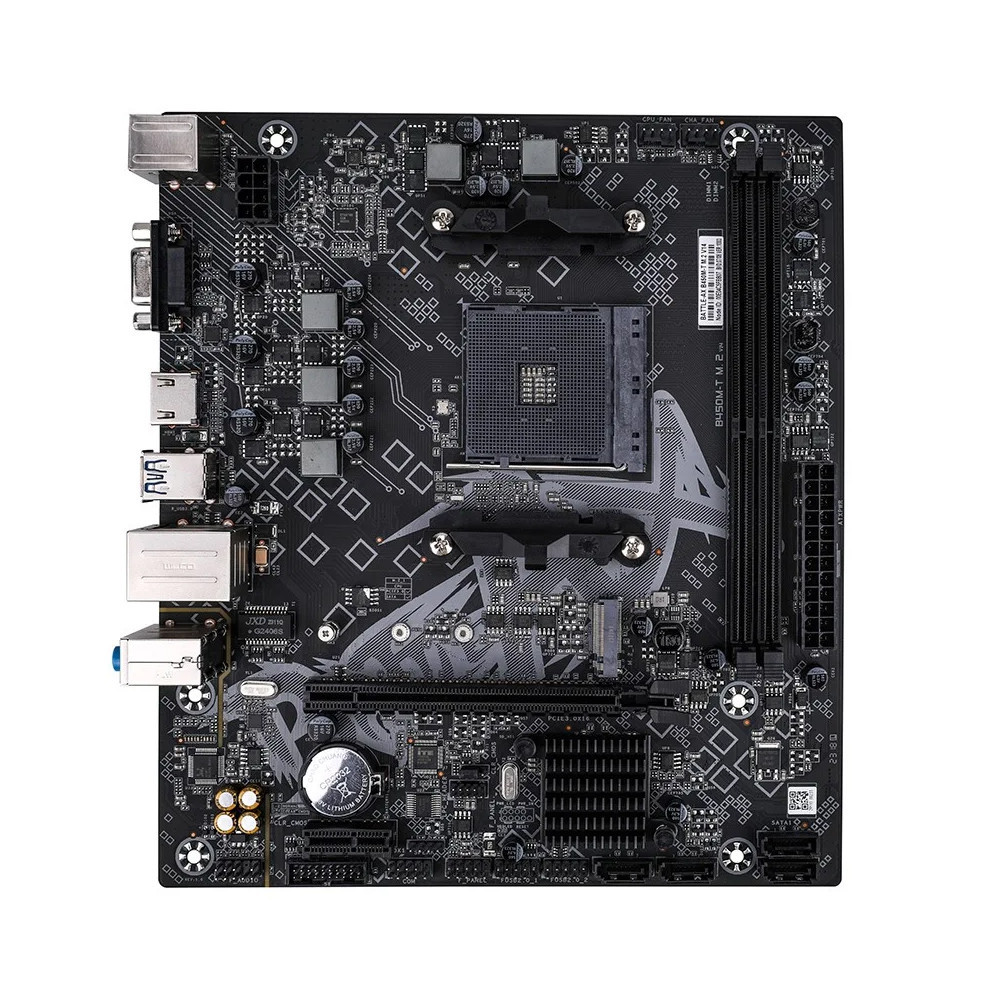

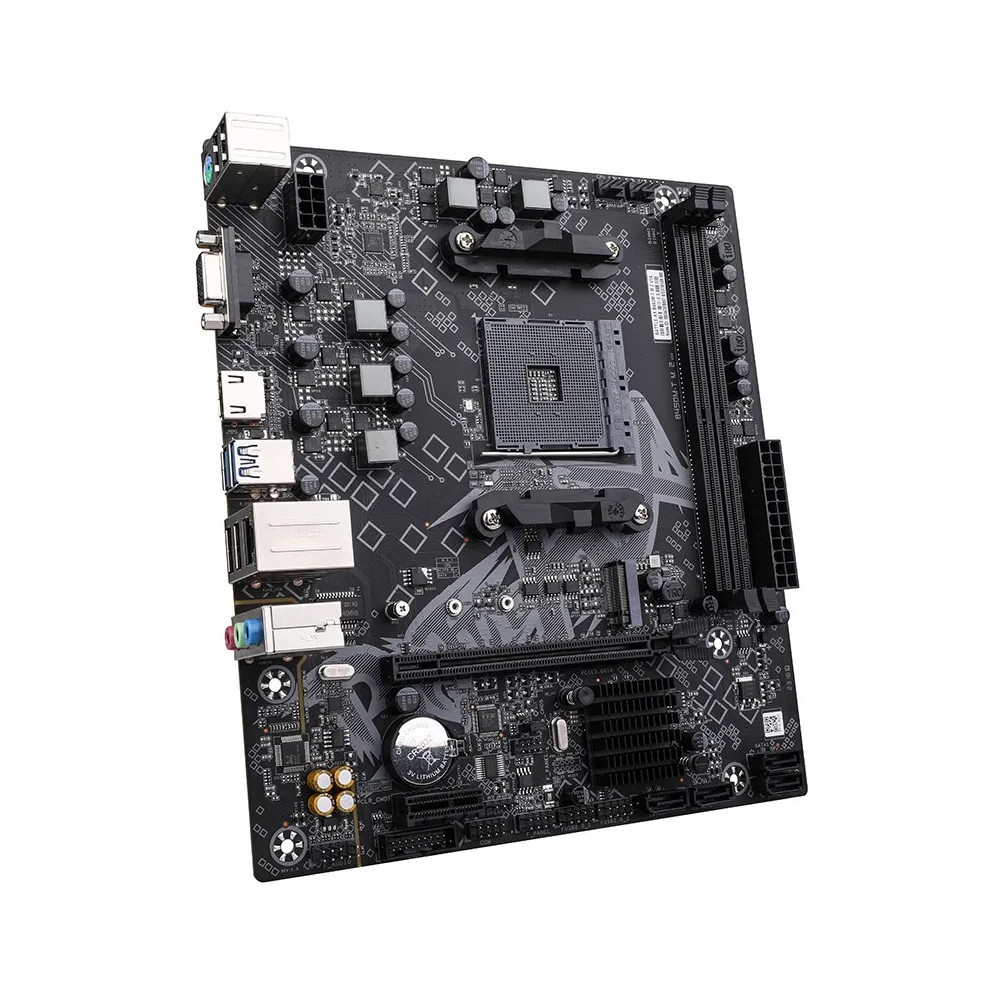

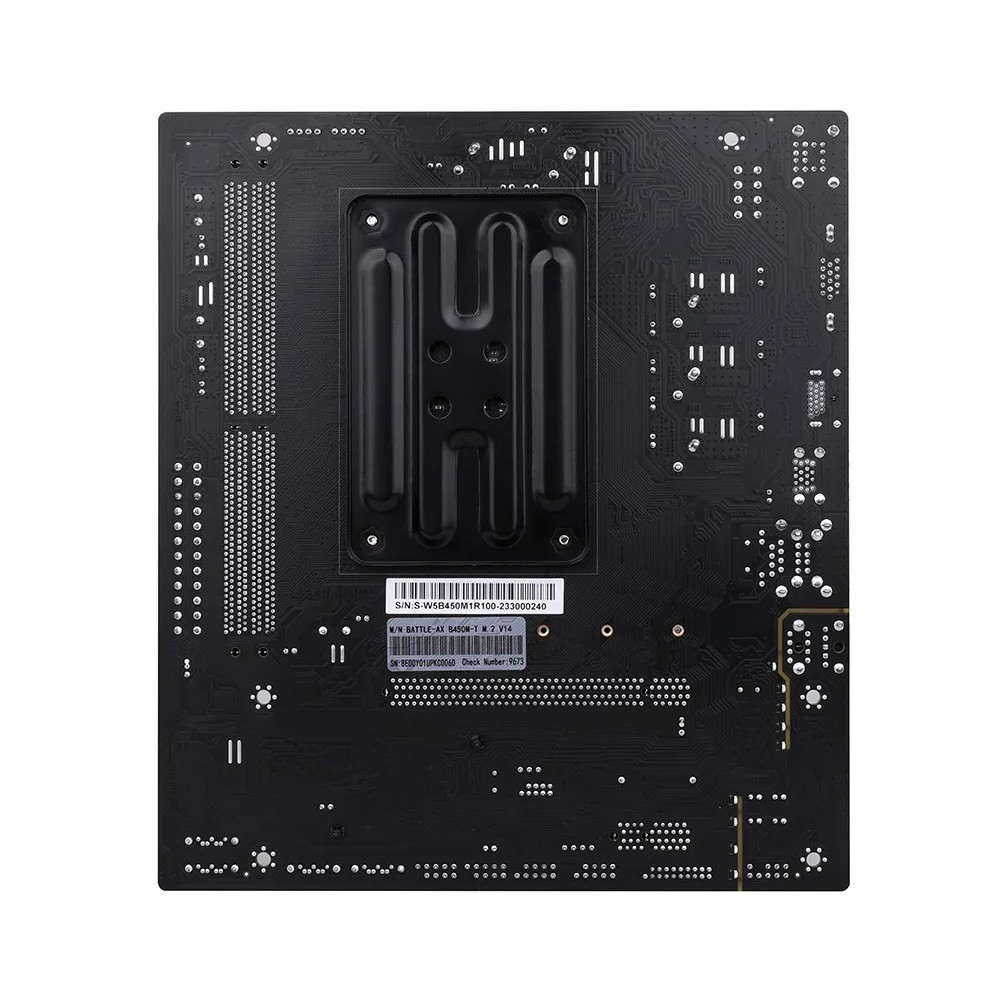

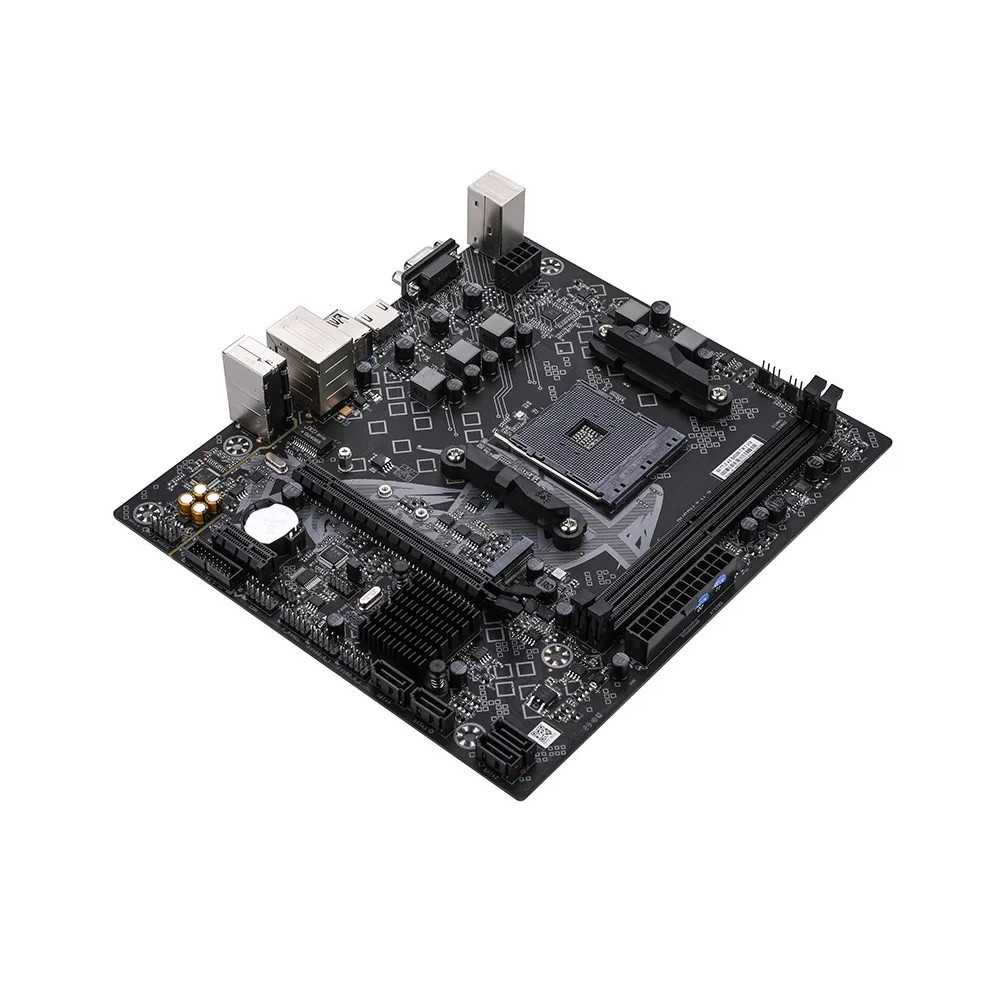

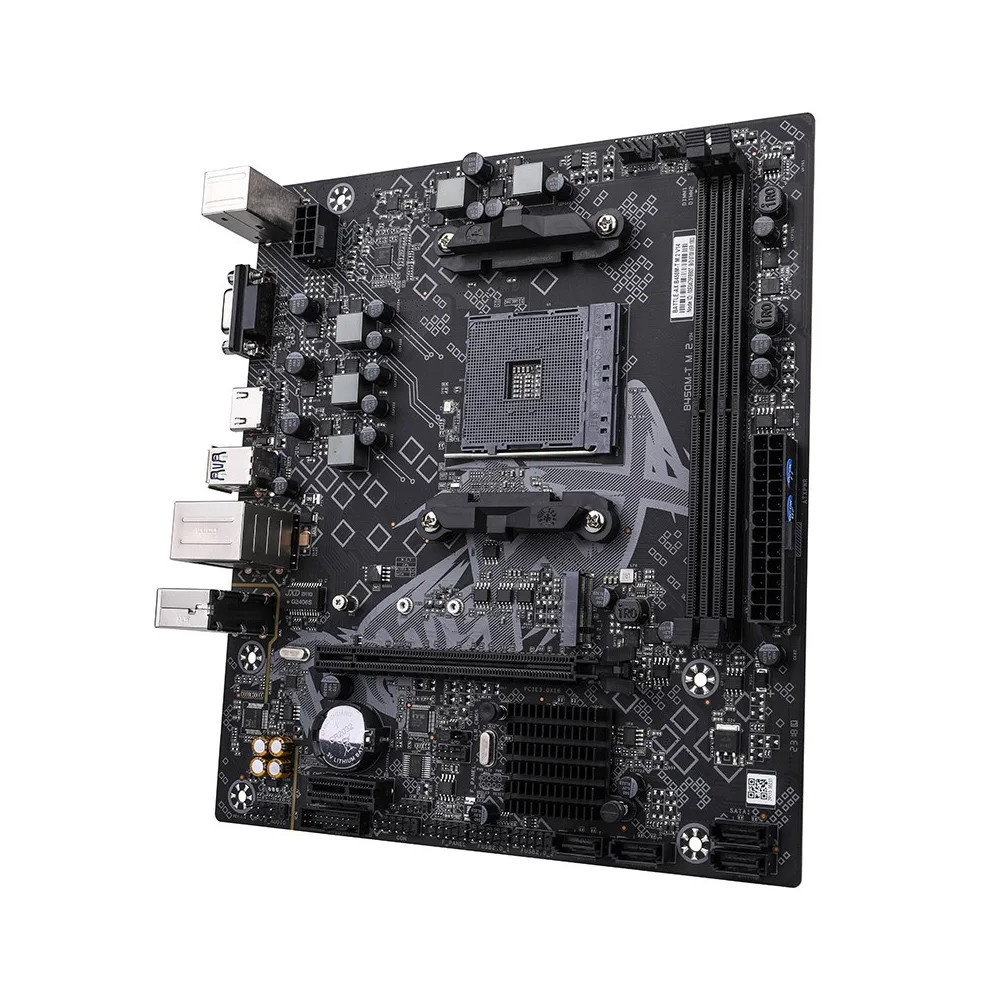

Mainboard Colorful BATTLE-AX B450M-T M.2 V14

1.590.000 VNĐ

2.990.000 đ

Tiết kiệm: 1.400.000Đ

Bảo hành: 36 Tháng TƯ VẤN NÂNG CẤP

Mô tả sản phẩm

  • Socket: AM4
  • Chipset: AMD B450
  • Chuẩn RAM: DDR4
  • Số khe RAM: 2 khe
  • Dung lượng RAM tối đa: 32GB
  • Khe mở rộng: 1 PCIe 3.0 x16 slot, 1 PCIe 3.0 x1 slot
  • Khe lưu trữ: 1 M.2 slot and 4 SATA 6Gb/s hard drive interfaces
  • Kích thước: M-ATX

Số lượng:

THÔNG SỐ KỸ THUẬT

Sản phẩm

Bo mạch chủ

Tên Hãng

Colorful

Model

BATTLE-AX B450M-T M.2 V14



CPU hỗ trợ

AMD

Chipset

AMD B450

RAM hỗ trợ

2 DDR4 memory slots that can support up to 64 GB of memory capacity (up to 32 GB per slot)

Khe cắm mở rộng

1 PCIe 3.0 x16 slot
1 PCIe 3.0 x1 slot


Ổ cứng hỗ trợ

1 M.2 slot and 4 SATA 6Gb/s hard drive interfaces
- M.2_1 slot: Supports 2242/2260/2280 specification M.2 SSDs (PCIe 3.0 x4, CPU channel)

Cổng kết nối

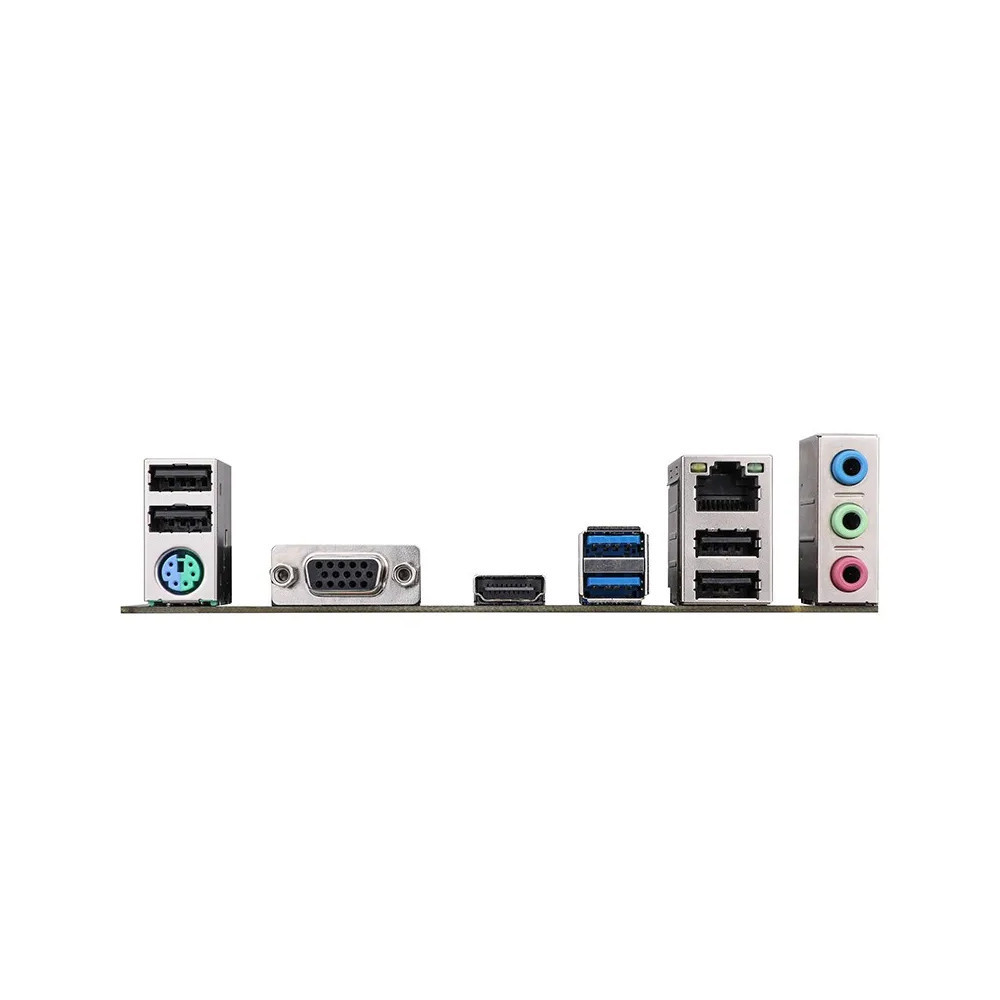

Rear I/O:
-4×USB 2.0 interfaces
-2×USB 3.2 Gen 1 Type-A interfaces
-1×HDMI 2.0 interface, supporting up to 4K 60Hz resolution
-1×VGA interface
-1×PS/2 interface
-1×Gigabit network interface
-3×Audio interfaces (audio input/output/microphone)
On board :
-1×CPU fan pin
-1×System fan pin
-2×USB 2.0 pins expandable 4 USB 2.0 Type-A interfaces
-1×USB 3.2 Gen 1 pin expandable 2 USB 3.2 Gen 1 Type-A interfaces
-1×Front audio pin
-1×Front panel pin
-1×Speaker pin
-1×COM port pin
-1×Clear CMOS jumper
-1×Debug light pin

LAN / Wireless

RTL8111H Gigabit Ethernet Card

Kích cỡ

M-ATX
220mmx195 mm
