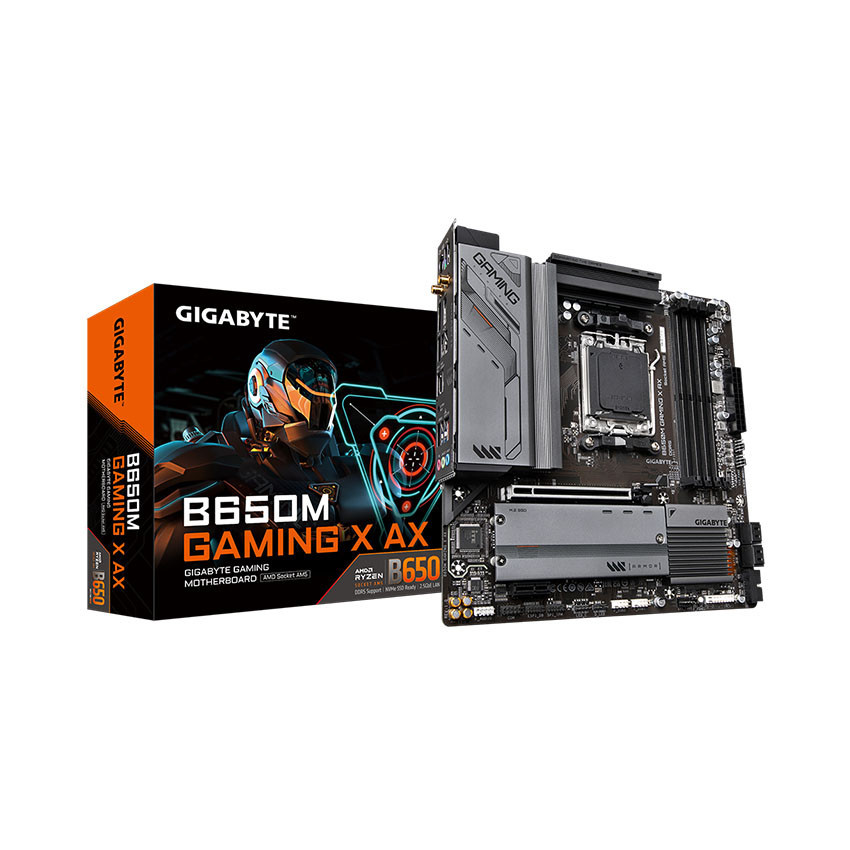

Mainboard Gigabyte B650M GAMING X AX DDR5

4.890.000 đ

5.990.000 đ

Tiết kiệm: 1.100.000Đ

Bảo hành: 36 Tháng

Mô tả sản phẩm

  • Chipset: AMD B650
  • Socket: AM5
  • Hỗ trợ RAM: 4 khe DDR5, tối đa 128GB
  • Hỗ trợ ổ cứng: 1 x M.2, 4 x SATA
  • Chuẩn kích thước: M-ATX

Số lượng:

THÔNG SỐ KỸ THUẬT

Sản phẩm Bo mạch chủ
Tên Hãng GIGABYTE
Model GAMING X AX DDR5
CPU hỗ trợ AMD Socket AM5 for AMD Ryzen™ 7000 Series
Chipset B650
RAM hỗ trợ Support for DDR5 8000(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800 MT/s memory modules
4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme
Khe cắm mở rộng CPU:
- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)

Chipset:
- 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 (PCIEX1)
Ổ cứng hỗ trợ CPU:
- 2 x M.2 connectors (Socket 3, M key, type 25110/2280 PCIe 4.0 x4/x2 SSD support)

Chipset:
- 4 x SATA 6Gb/s connectors
RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Cổng kết nối (Internal) 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
3 x system fan headers
1 x addressable LED strip header (D_LED1)
1 x addressable LED strip header (D_LED2)
1 x RGB LED strip header
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2 module only)
1 x serial port header
1 x reset button
1 x reset jumper
1 x Clear CMOS jumper
Cổng kết nối (Back Panel) 4 x USB 2.0/1.1 ports
1 x PS/2 keyboard/mouse port
2 x SMA antenna connectors (2T2R)
2 x DisplayPorts
1 x HDMI port
1 x USB 3.2 Gen 2 Type-A port (red)
1 x USB Type-C® port, with USB 3.2 Gen 2 support
1 x Q-Flash Plus button
1 x RJ-45 port
2 x USB 3.2 Gen 1 ports
3 x audio jacks
LAN  Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
WIRELESS/ BLUETOOTH Realtek® Wi-Fi 6E RTL8852CE
- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.3
- Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
Kích cỡ Micro ATX Form Factor; 24.4cm x 24.4cm
