| Sản phẩm |
Bo mạch chủ |
| Tên Hãng |
GIGABYTE |
| Model |

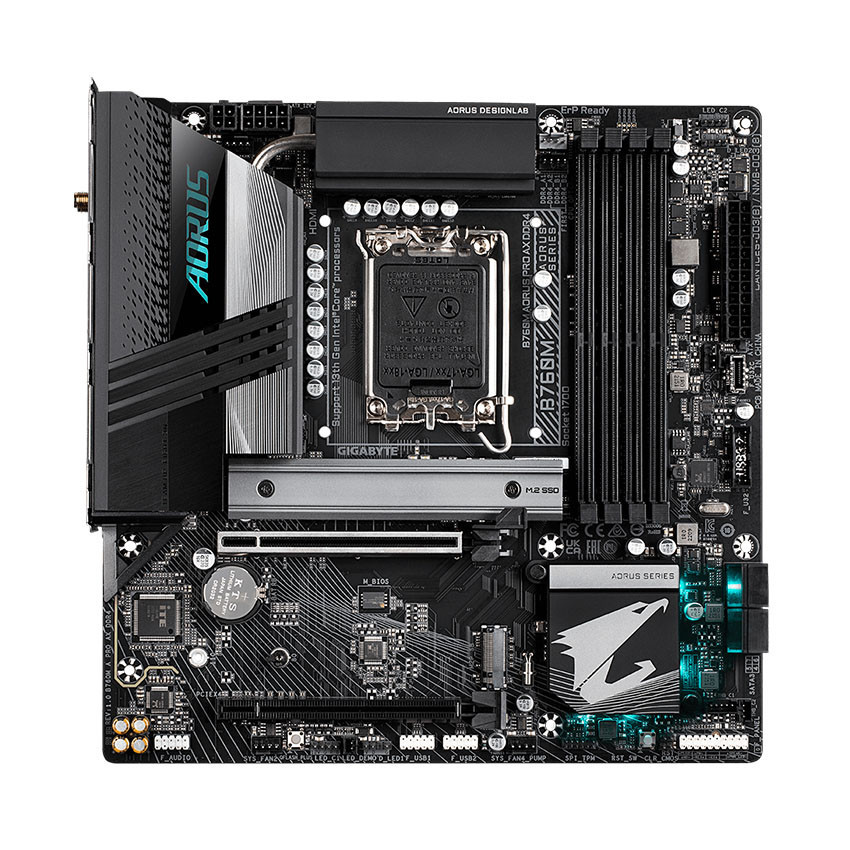

B760M AORUS PRO AX DDR4 |
| CPU hỗ trợ |
Hỗ trợ cho thế hệ thứ 12 and 13 Intel® Core Socket LGA1700 |
| Chipset |
B760 |
| RAM hỗ trợ |
Support for DDR4 5333(O.C.) / 5133(O.C.)
/ 5000(O.C.) / 4933(O.C.) / 4800(O.C.) / 4700(O.C.)
/ 4600(O.C.) / 4500(O.C.) / 4400(O.C.) / 4300(O.C.)
/ 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.)
/ 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.)
/ 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) /
3200 / 3000 / 2933 / 2666 / 2400 / 2133 MT/s memory modules |
| |
| 4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory |
| Khe cắm mở rộng |
CPU: |
| 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) |
| |
| Chipset: |
| 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) |
| Ổ cứng hỗ trợ |
CPU: |
| 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) |
| Chipset: |
| 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) |
| 4 x SATA 6Gb/s connectors |
| RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devicess |
| Cổng kết nối (Internal) |
1 x 24-pin ATX main power connector |
| 1 x 8-pin ATX 12V power connector |
| 1 x 4-pin ATX 12V power connector |
| 1 x CPU fan header |
| 1 x CPU fan/water cooling pump header |
| 3 x system fan headers |
| 1 x system fan/water cooling pump header |
| 2 x addressable LED strip headers |
| 2 x RGB LED strip headers |
| 2 x M.2 Socket 3 connectors |
| 4 x SATA 6Gb/s connectors |
| 1 x front panel header |
| 1 x front panel audio header |
| 1 x USB Type-C® header, with USB 3.2 Gen 2 support |
| 1 x USB 3.2 Gen 1 header |
| 2 x USB 2.0/1.1 headers |
| 2 x Thunderbolt™ add-in card connectors |
| 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) |
| 1 x reset button |
| 1 x Q-Flash Plus button |
| 1 x reset jumper |
| 1 x Clear CMOS jumper |
| Cổng kết nối (Back Panel) |
1 x USB Type-C® port, with USB 3.2 Gen 2x2 support |
| 1 x USB 3.2 Gen 2 Type-A port (red) |
| 3 x USB 3.2 Gen 1 ports |
| 4 x USB 2.0/1.1 ports |
| 2 x SMA antenna connectors (2T2R) |
| 1 x HDMI port |
| 1 x DisplayPort |
| 1 x RJ-45 port |
| 1 x optical S/PDIF Out connector |
| 2 x audio jacks |
| LAN / Wireless |
Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Intel® Wi-Fi 6E AX211: WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands |
| BLUETOOTH 5.3: Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rat |
| Kích cỡ |
Micro ATX Form Factor; 24.4cm x 22.5cm |
