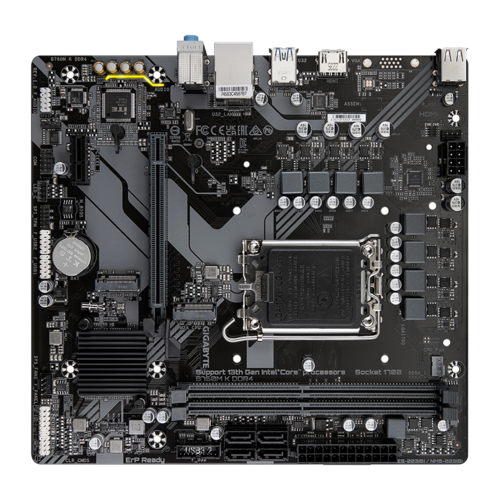

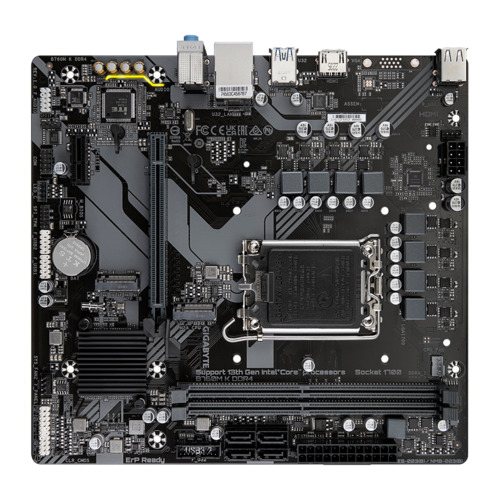

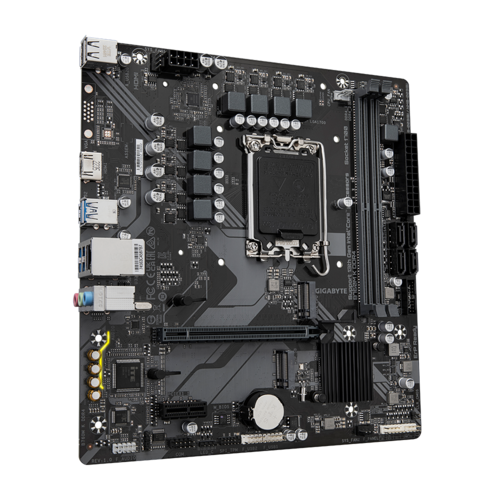

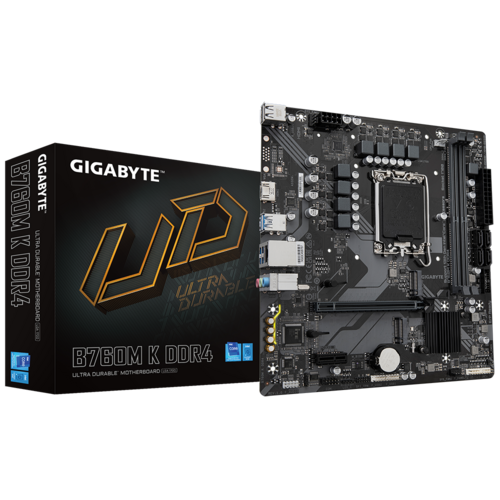

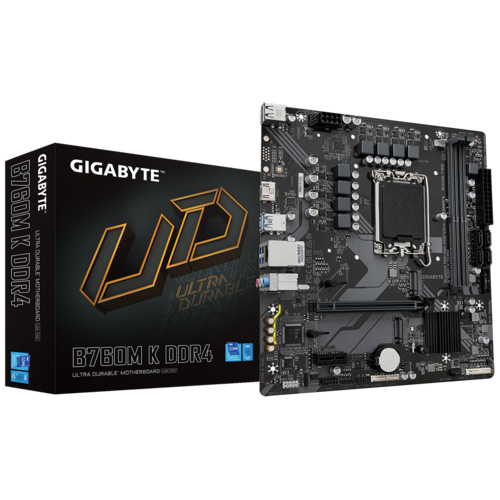

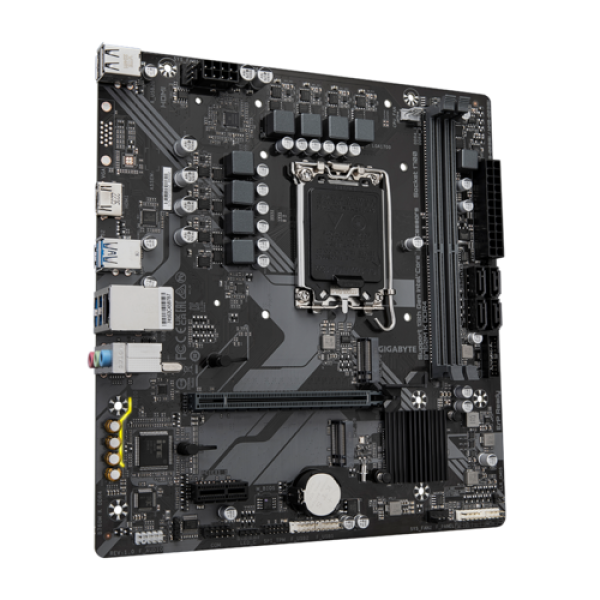

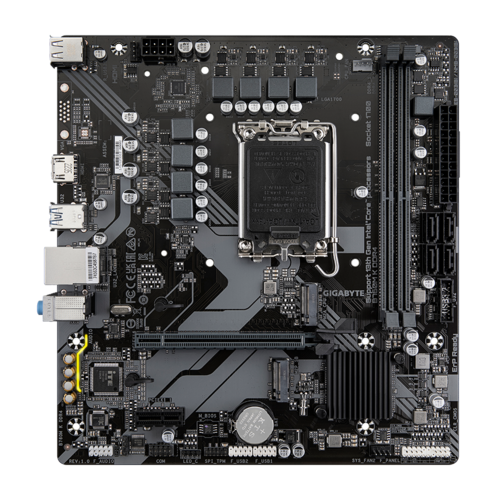

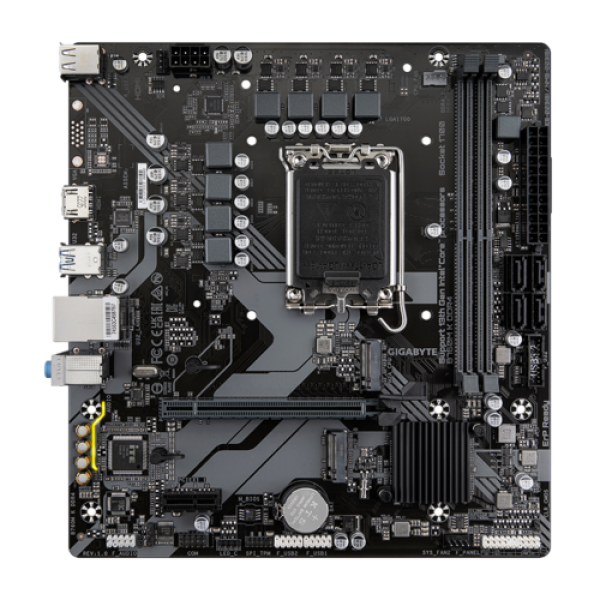

Mainboard Gigabyte B760M K DDR4

THƯƠNG HIỆU

Gigabyte

BẢO HÀNH

36 tháng

CHIPSET

Intel B760

SOCKET

Intel LGA 1700

KHE RAM TỐI ĐA

2 khe

BUS RAM HỖ TRỢ

2133MHz, 2400MHz, 2666MHz, 2933MHz, 3000MHz, 3200MHz

HỖ TRỢ BỘ NHỚ TỐI ĐA

64GB

CỔNG XUẤT HÌNH

1 x HDMI port

CỔNG TRÊN MAIN

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x CPU fan header

2 x system fan headers

1 x RGB LED strip header

2 x M.2 Socket 3 connectors

4 x SATA 6Gb/s connectors

1 x front panel header

1 x front panel audio header

1 x S/PDIF Out header

1 x USB 3.2 Gen 1 header

2 x USB 2.0/1.1 headers

1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)

1 x serial port header

1 x Clear CMOS jumper

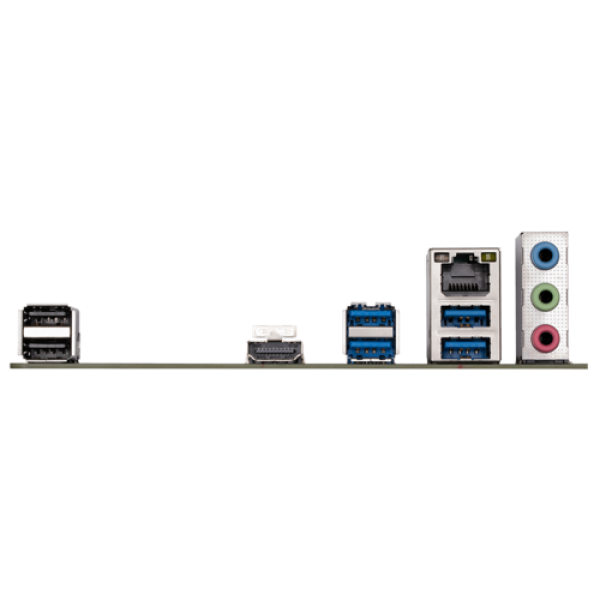

CỔNG PHÍA SAU

2 x USB 2.0/1.1 ports

1 x D-Sub port

1 x HDMI port

4 x USB 3.2 Gen 1 ports

1 x RJ-45 port

3 x audio jacks

ÂM THANH

Realtek® Audio CODEC

High Definition Audio

2/4/5.1/7.1-channel

Support for S/PDIF Out

LƯU TRỮ

CPU:

– 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)

Chipset:

– 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)

– 4 x SATA 6Gb/s connectors

RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

KHE CẮM MỞ RỘNG

CPU:

– 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16

Chipset:

– 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1

BIOS

1 x 128 Mbit flash

Use of licensed AMI UEFI BIOS

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

LAN

Realtek® GbE LAN chip (1 Gbps/100 Mbps)

KÍCH CỠ MAINBOARD

Micro ATX

KÍCH THƯỚC

23.0cm x 21.5cm
