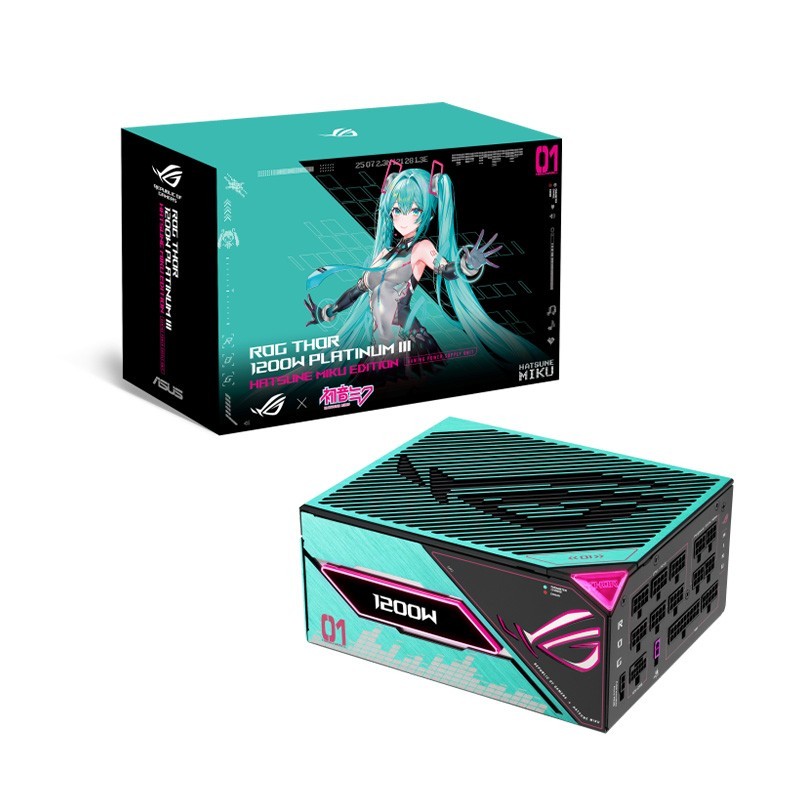

Nguồn Máy Tính ASUS ROG Thor 1200W Platinum III Hatsune Miku Edition

Intel Specification

ATX12V

PFC Type

Active PFC

ATX Standard

ATX 3.1

Dimensions

190 x 150 x 86 mm

Efficiency

80Plus Platinum

MTBF

>120,000 hrs @ 25°C

Protection Features

OPP/OVP/UVP/SCP/OCP/OTP

Hazardous Materials

ROHS

AC Input Range

+3.3V +5V +12V -12V +5Vsb

Maximum Load

30A 25A 100A 0.3A 3A

Combined Load

 125W 125W 1200W 3.6W 15W

Total Output

 1200W

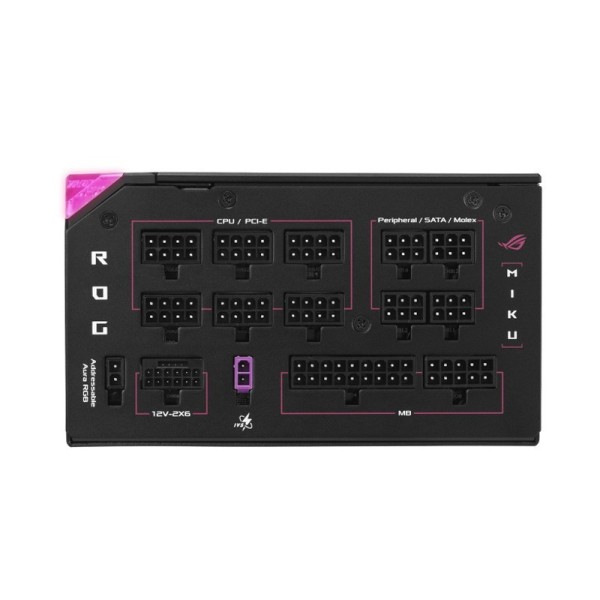

Cable Connectors

 MB 24/20-pin x 1
CPU 4+4-pin x 2
PCI-E 16-pin x 1
PCI-E 6+2-pin x 4
SATA x 7
PERIPHERAL x 6

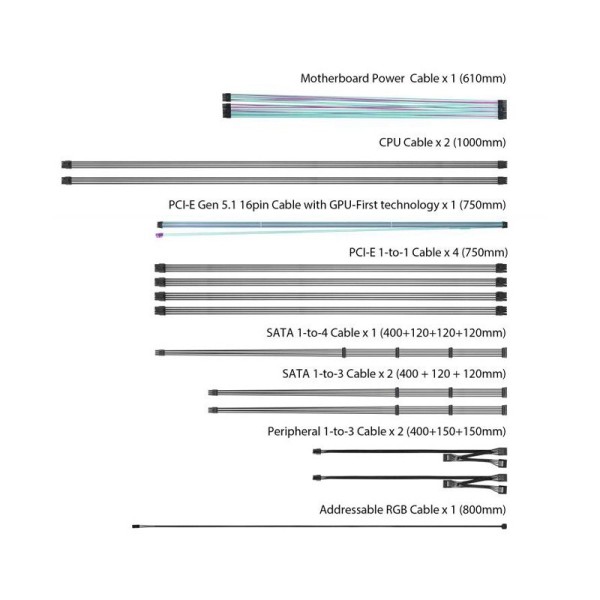

Package Contents

Power cord x 1
Motherboard power cable x 1 (610mm)
CPU cable x 2 (1000mm)
PCI-E Gen 5 16-pin cable x 1 (750mm)
PCI-E cable 1-to-1 x 4 (750mm)
SATA cable 1-to-4 x 1 (400+120+120+120mm)
SATA cable 1-to-3 x 1 (400+120+120mm)
Peripheral cable 1-to-3 x 2 (400+150+150mm)
Addressable RGB cable x 1 (800mm)
ROG sticker x 1
ROG cable tie x 6
Chassis screws package x 1
Cable tie x 12
Thank you card x 1
User manual x 1

Weight

 2.37 KG (single PSU)

AURA SYNC

 ARGB

Cybenetics Noise Level Certification

 A++
