MAINBOARD GIGABYTE B650 AORUS ELITE AX DDR5

Tình trạng: Còn hàng Thương hiệu: Gigabyte

Giá: 6,999,000₫

Số lượng:

Chia sẻ:

Chính sách bán hàng

Cam kết 100% chính hãng

Hỗ trợ 24/7

Thông tin thêm

Hoàn tiền 111% nếu hàng giả

Mở hộp kiểm tra nhận hàng

Đổi trả trong 7 ngày

Mô tả sản phẩm

Socket: AMD Socket AM5 hỗ trợ CPU AMD Ryzen ™ 7000 Series
Kích thước: ATX
Khe cắm RAM: 4 khe (Tối đa 128GB)
Khe cắm mở rộng: 1 x PCI Express x16 slot
Khe cắm ổ cứng: M.2 connector, 4 x SATA 6Gb/s connectors

Bảo hành : 36 Tháng

Thông số kỹ thuật

Sản phẩm	Bo mạch chủ
Tên Hãng	GIGABYTE
Model	AORUS ELITE AX DDR5
CPU hỗ trợ	AMD Socket AM5 for AMD Ryzen™ 7000 Series
Chipset	B650
RAM hỗ trợ	Support for DDR5 8000(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6666(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800/ 4400 MT/s memory modules
	4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory
	Dual channel memory architecture
	Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
	Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory module
Khe cắm mở rộng	CPU:
	1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)
	* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
	Chipset:
	2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1/2)
Ổ cứng hỗ trợ	CPU:
	1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0* x4/x2 SSD support) (M2A_CPU)
	* Actual support may vary by CPU.
	1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU)
	Chipset:
	1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 4.0 x4/x2 SSD support) (M2C_SB)
	4 x SATA 6Gb/s connectors
	RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
	RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Cổng kết nối (Internal)	1 x 24-pin ATX main power connector
	1 x 8-pin ATX 12V power connector
	1 x 4-pin ATX 12V power connector
	1 x CPU fan header
	1 x water cooling CPU fan header
	3 x system fan headers
	1 x system fan/water cooling pump header
	2 x addressable LED strip headers
	2 x RGB LED strip headers
	1 x CPU cooler LED strip/RGB LED strip header
	3 x M.2 Socket 3 connectors
	4 x SATA 6Gb/s connectors
	1 x front panel header
	1 x front panel audio header
	1 x USB Type-C® header, with USB 3.2 Gen 2x2 support
	1 x USB 3.2 Gen 1 header
	2 x USB 2.0/1.1 headers
	1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
	1 x reset button
	1 x reset jumper
	1 x Clear CMOS jumper

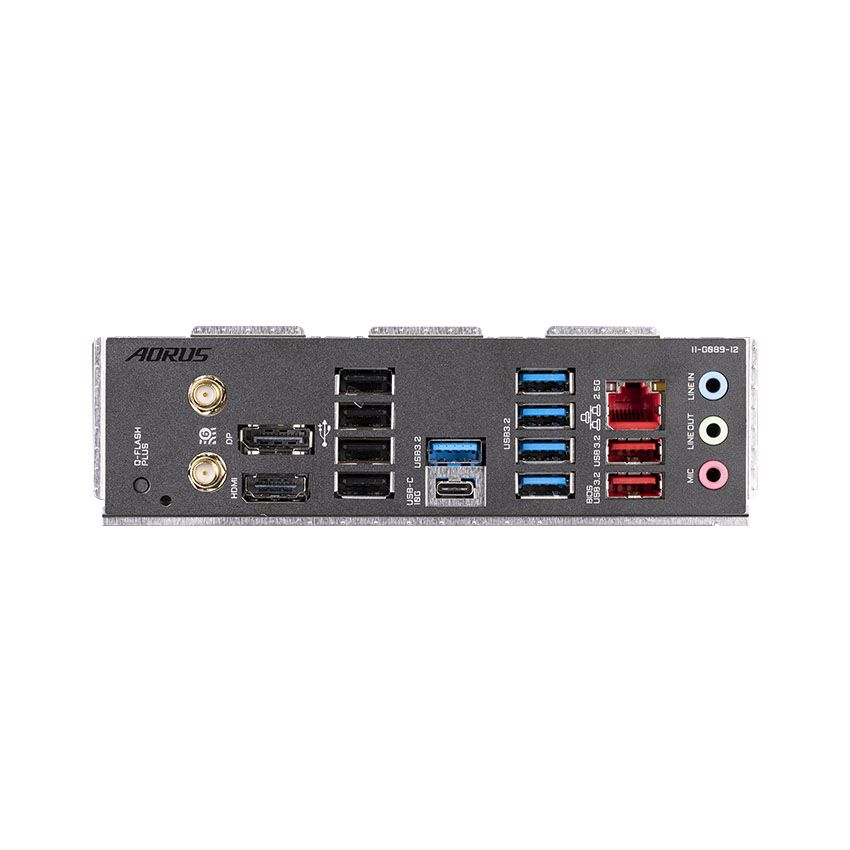

Cổng kết nối (Back Panel)	1 x Q-Flash Plus button
	2 x SMA antenna connectors (2T2R)
	1 x DisplayPort
	1 x HDMI port
	1 x USB Type-C® port, with USB 3.2 Gen 2 support
	2 x USB 3.2 Gen 2 Type-A ports (red)
	5 x USB 3.2 Gen 1 ports
	4 x USB 2.0/1.1 ports
	1 x RJ-45 port
	3 x audio jacks
LAN	Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
WIRELESS/ BLUETOOTH	WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
	BLUETOOTH 5.2
	Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
	Intel® Wi-Fi 6E AX210 (For PCB rev. 1.1)
	WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
	BLUETOOTH 5.3
	Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
Kích cỡ	ATX Form Factor; 30.5cm x 24.4cm
