Sản phẩm | Bo mạch chủ |
Tên Hãng | Asrock |

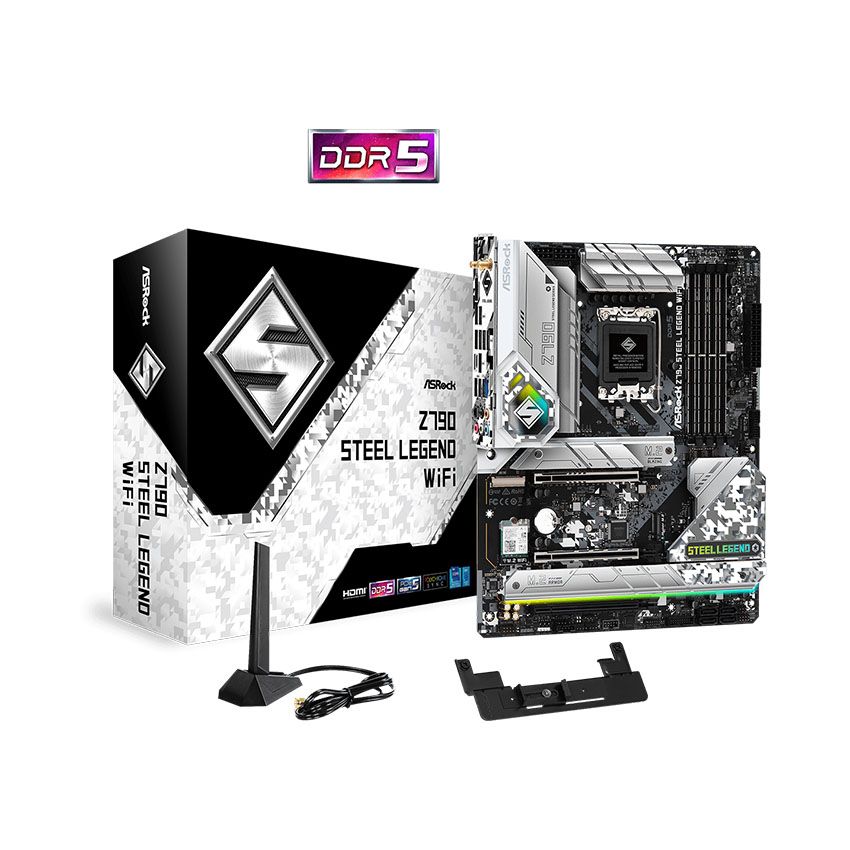

Model | Z790 STEEL LEGEND WIFI |
CPU hỗ trợ | Intel |
Chipset | Intel Z790 Chipset |
RAM hỗ trợ | 4 x DIMM, Max. 128GB Supports DDR5 non-ECC, un-buffered memory up to 6800+(OC) |
Khe cắm mở rộng | CPU: |
- 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode* |
Chipset: |
- 1 x PCIe 4.0 x16 Slot (PCIE2), supports x4 mode* |
- 1 x PCIe 3.0 x16 Slot (PCIE3), supports x2 mode* |
- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT) |
Ổ cứng hỗ trợ | CPU: |
- 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* |
- 1 x Blazing M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen5x4 (128 Gb/s) mode* |
Chipset: |
- 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode* |
- 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode* |
- 1 x Hyper M.2 Socket (M2_5, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* |
- 8 x SATA3 6.0 Gb/s Connectors |
USB | 1 x USB 3.2 Gen2x2 Type-C (Front) |
1 x USB 3.2 Gen2 Type-C (Rear) |
1 x USB 3.2 Gen2 Type-A (Rear) |
12 x USB 3.2 Gen1 (8 Rear, 4 Front) |
3 x USB 2.0 (3 Front) |
Cổng kết nối (Internal | - 1 x eDP Signal Connector |
- 1 x SPI TPM Header |
- 1 x Power LED and Speaker Header |
- 1 x RGB LED Header* |
- 3 x Addressable LED Headers** |
- 1 x CPU Fan Connector (4-pin)*** |
- 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**** |
- 5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***** |
- 1 x 24 pin ATX Power Connector (Hi-Density Power Connector) |
- 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector) |
- 1 x Front Panel Audio Connector (15μ Gold Audio Connector) |
- 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card) |
- 2 x USB 2.0 Headers (Support 3 USB 2.0 ports) |
- 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) |
- 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) |

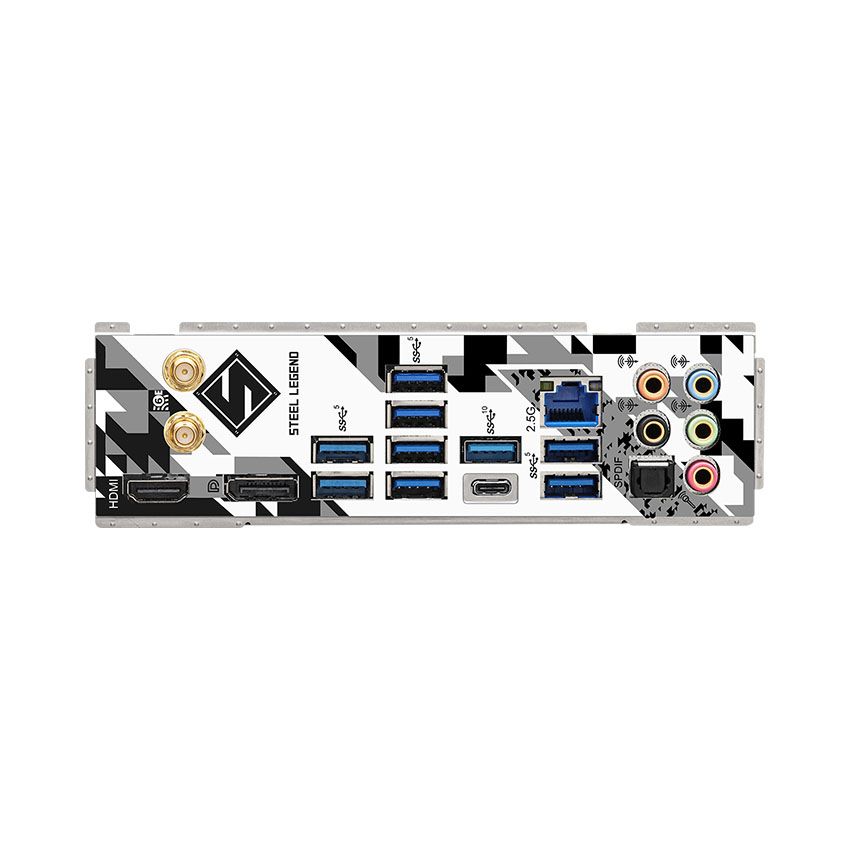

Cổng kết nối (Back Panel) | - 2 x Antenna Ports |
- 1 x HDMI Port |
- 1 x DisplayPort 1.4 |
- 1 x Optical SPDIF Out Port |
- 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) |
- 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) |
- 8 x USB 3.2 Gen1 Ports |
- 1 x RJ-45 LAN Port |
- HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks) |
LAN / Wireless | 2.5 Gigabit LAN 10/100/1000/2500 Mb/s |
802.11ax Wi-Fi 6E Module |

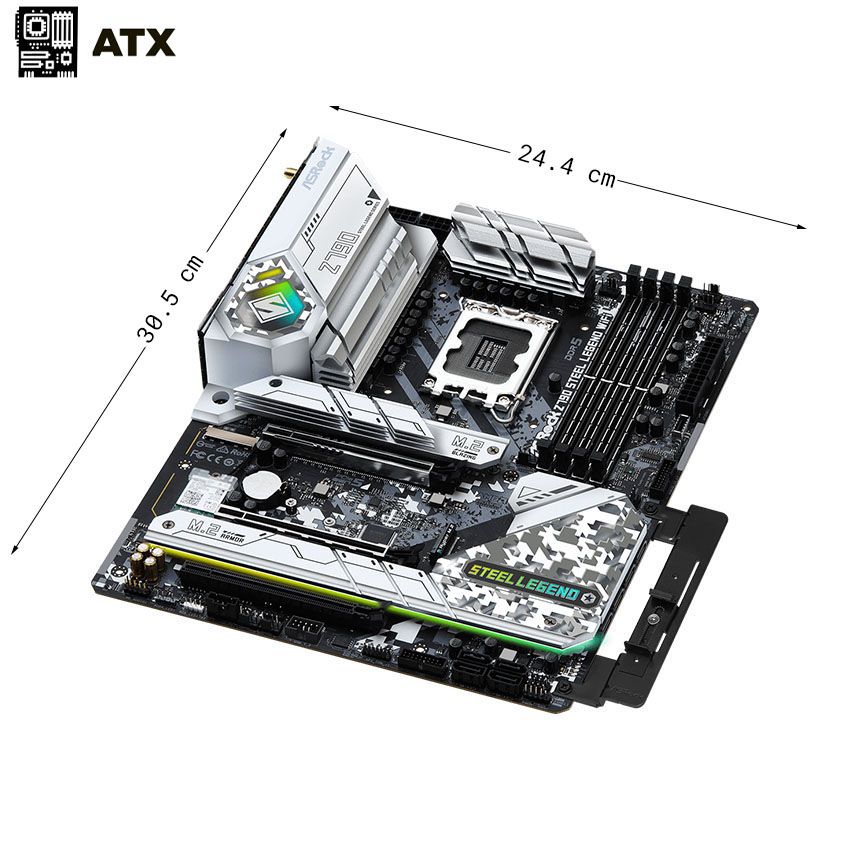

Kích cỡ | ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm |
