Sản phẩm | Bo mạch chủ |
Tên Hãng | Gigabyte |

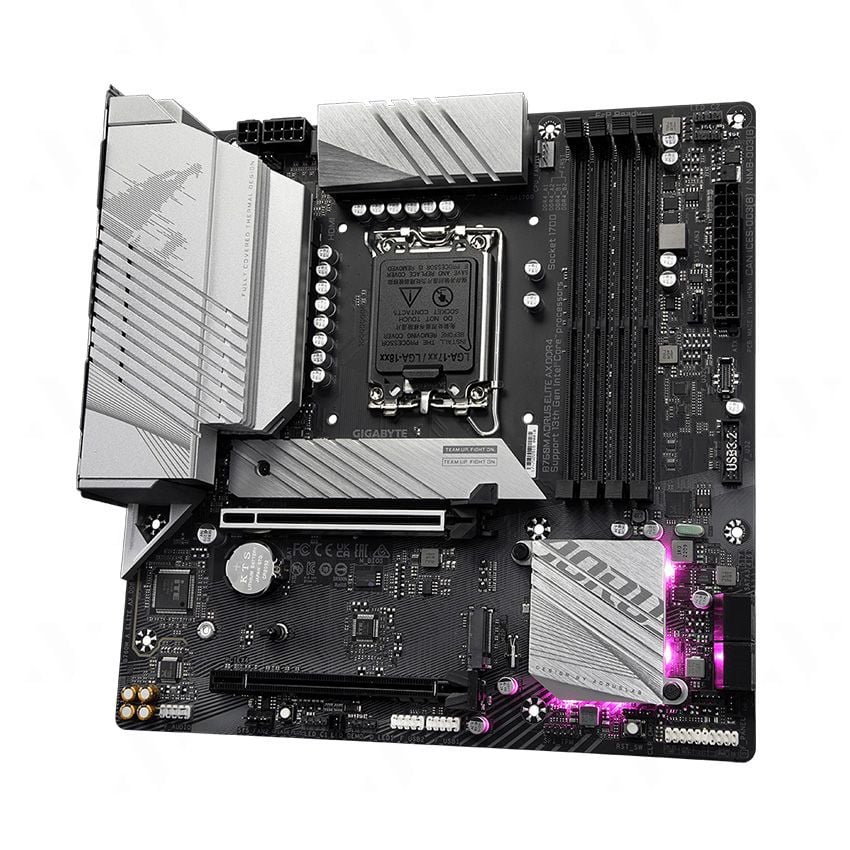

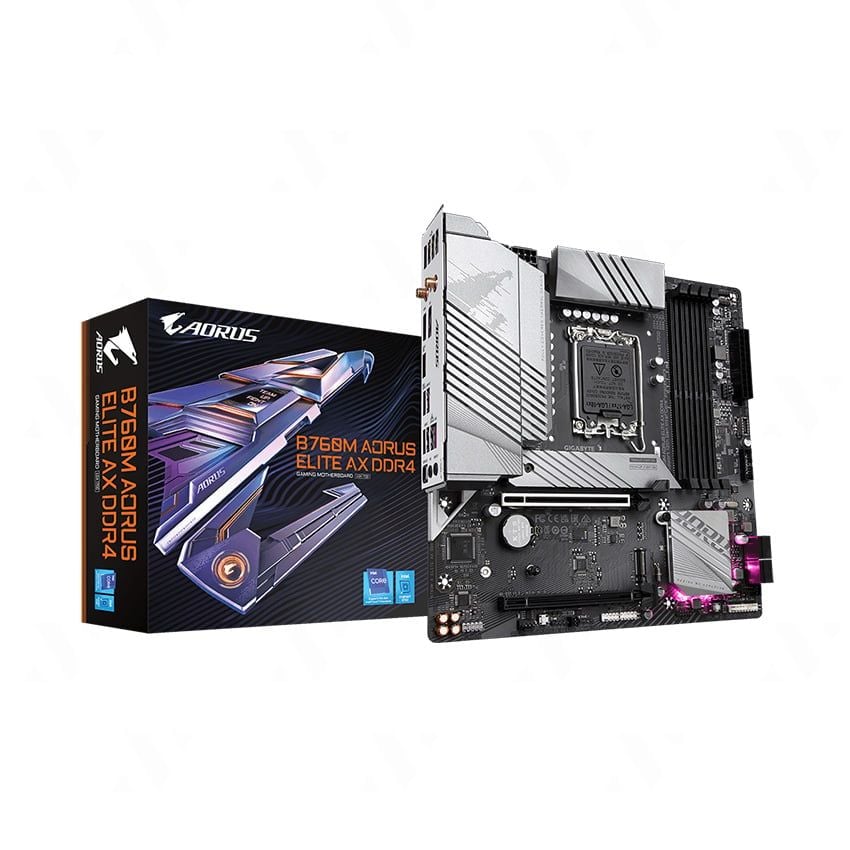

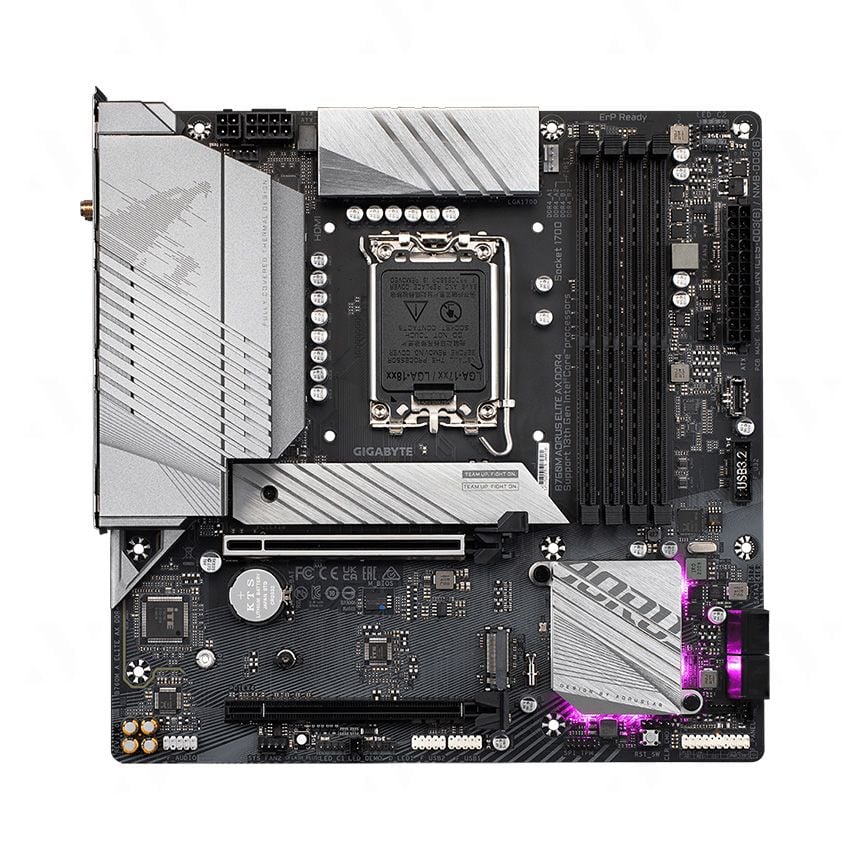

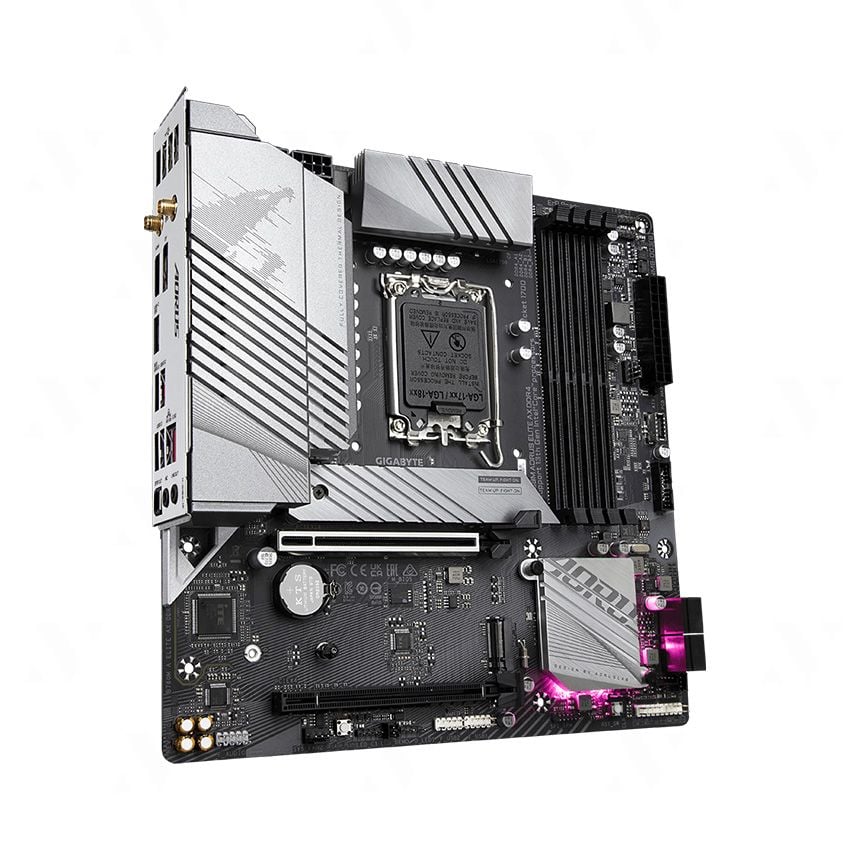

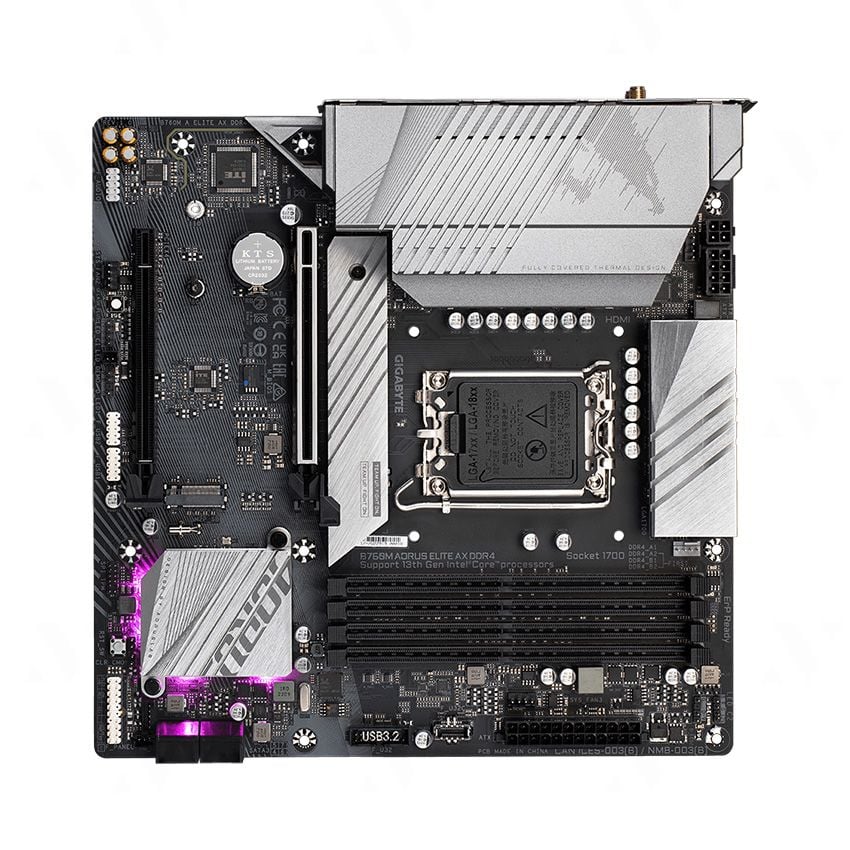

Model | B760M Aorus Elite AX DDR4 |
CPU hỗ trợ | Intel |
Chipset | B760 |
RAM hỗ trợ | Support for DDR4 5333(O.C.) / 5133(O.C.) / 5000(O.C.) / 4933(O.C.) / 4800(O.C.) / 4700(O.C.) / 4600(O.C.) / 4500(O.C.) / 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2666 / 2400 / 2133 MT/s |
|
4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory |
Khe cắm mở rộng | 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) |
|
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) |
Ổ cứng hỗ trợ | CPU: |
1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) |
Chipset: |
1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) |
4 x SATA 6Gb/s connectors |
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
Cổng kết nối (Internal) | 1 x 24-pin ATX main power connector |
1 x 8-pin ATX 12V power connector |
1 x 4-pin ATX 12V power connector |
1 x CPU fan header |
3 x system fan headers |
2 x addressable LED strip headers |
2 x RGB LED strip headers |
2 x M.2 Socket 3 connectors |
4 x SATA 6Gb/s connectors |
1 x front panel header |
1 x front panel audio header |
1 x USB Type-C® header, with USB 3.2 Gen 2 support |
1 x USB 3.2 Gen 1 header |
2 x USB 2.0/1.1 headers |
2 x Thunderbolt™ add-in card connectors |
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) |
1 x Q-Flash Plus button |
1 x reset button |
1 x reset jumper |
1 x Clear CMOS jumper |
Cổng kết nối (Back Panel) | 2 x SMA antenna connectors (2T2R) |
1 x USB Type-C® port, with USB 3.2 Gen 2x2 support |
1 x USB 3.2 Gen 2 Type-A port (red) |
3 x USB 3.2 Gen 1 ports |
4 x USB 2.0/1.1 ports |
1 x HDMI port |
1 x DisplayPort |
1 x RJ-45 port |
1 x optical S/PDIF Out connector |
2 x audio jacks |
LAN / Wireless | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
|
Intel® Wi-Fi 6E AX211 |
WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands |
BLUETOOTH 5.3 |
Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate |
Kích cỡ | Micro ATX Form Factor; 24.4cm x 24.4cm |
