Sản phẩm | Bo mạch chủ |
Tên Hãng | Gigabyte |

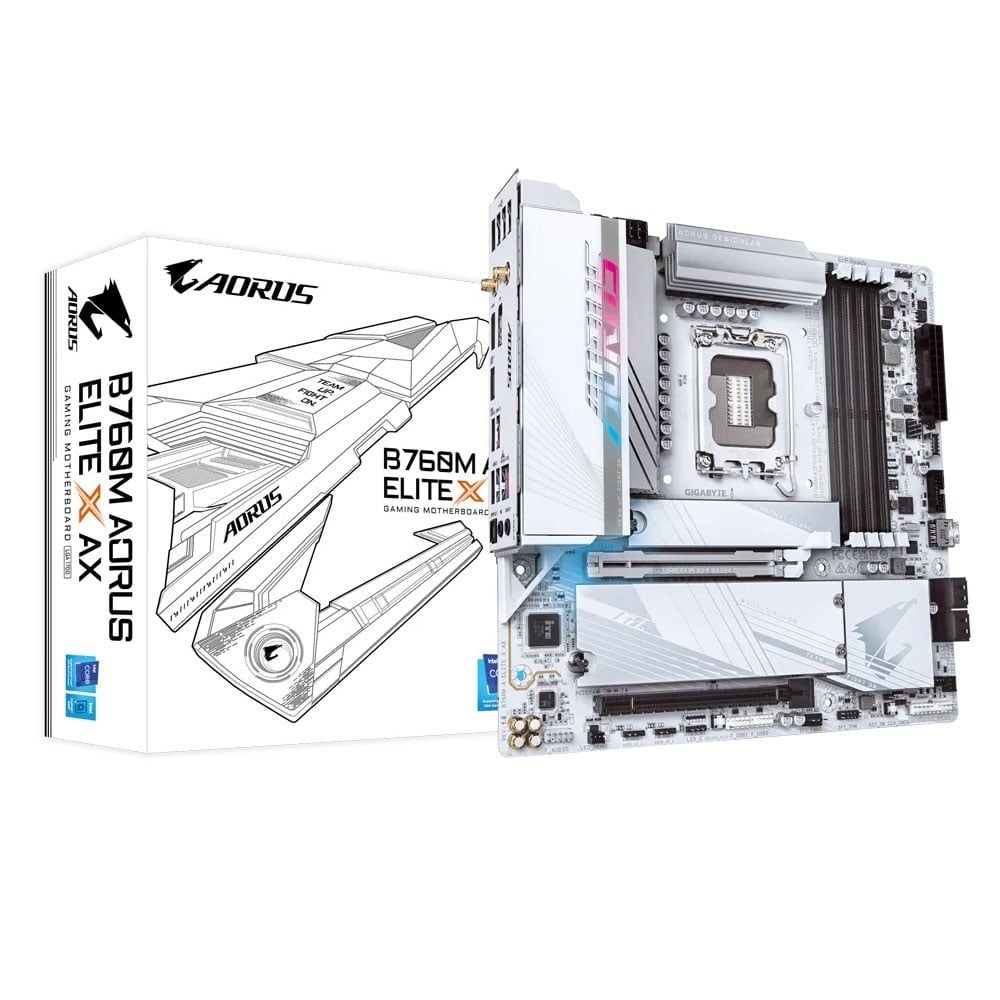

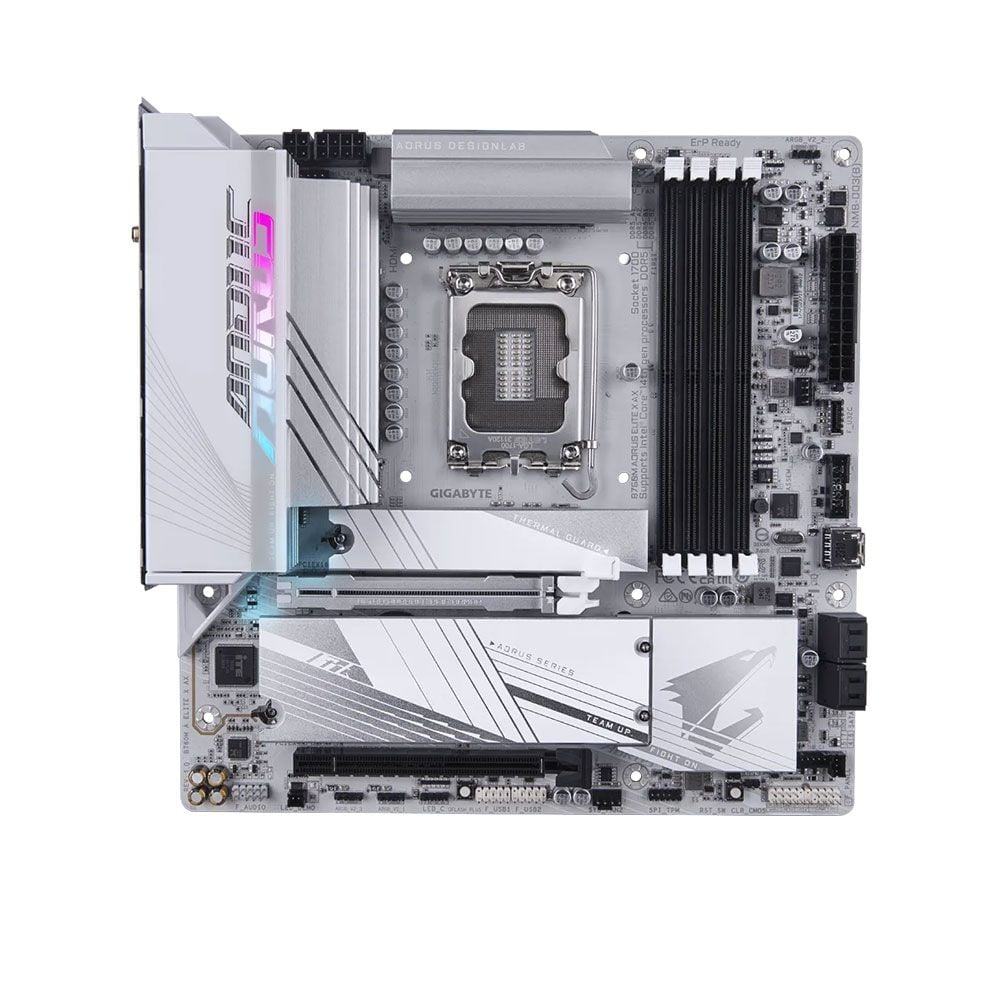

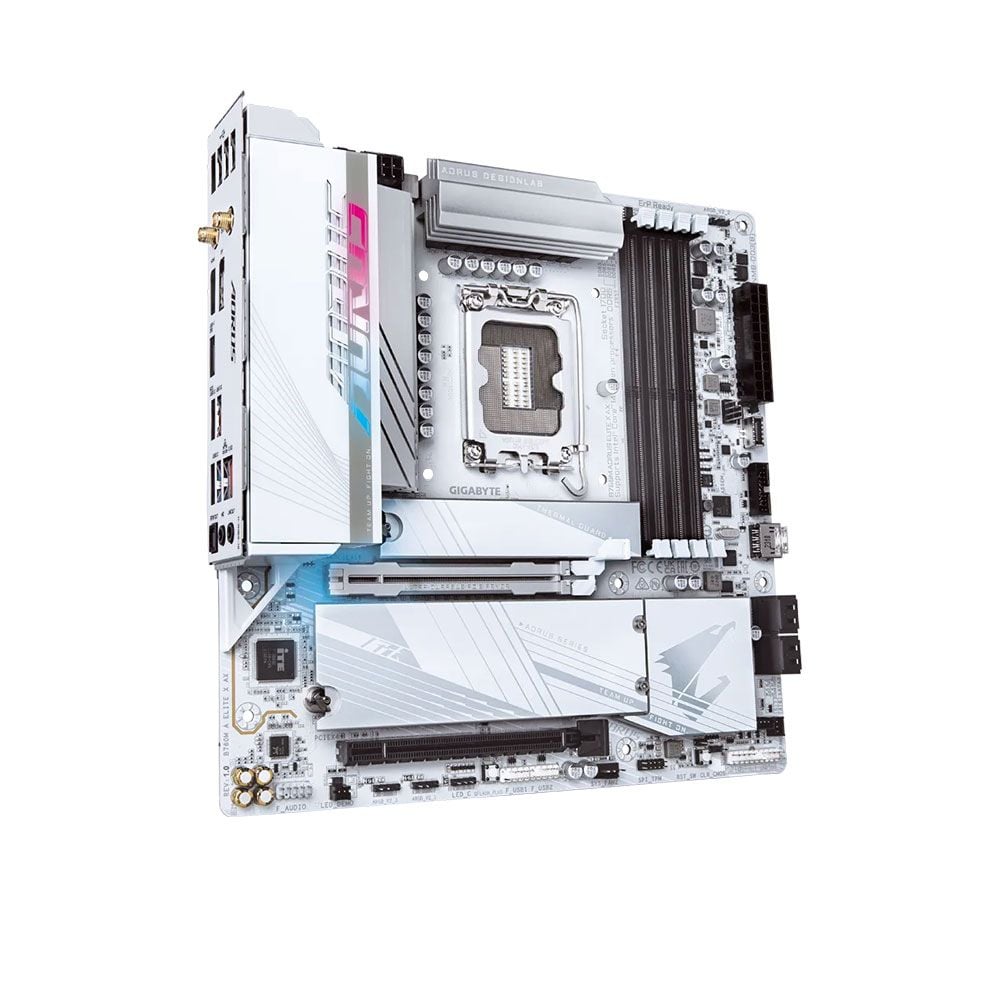

Model | B760M AORUS ELITE X AX DDR5 |
CPU hỗ trợ | Intel |
Chipset | B760 |
RAM hỗ trợ | Support for DDR5 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules |
|
4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory |
Khe cắm mở rộng | CPU: |
- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) |
|
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. |
|
|
Chipset: |
- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) |
Ổ cứng hỗ trợ | CPU: |
- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) |
Chipset: |
- 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) |
- 4 x SATA 6Gb/s connectors |
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
Cổng kết nối (Internal) | 1 x 24-pin ATX main power connector |
1 x 8-pin ATX 12V power connector |
1 x 4-pin ATX 12V power connector |
1 x CPU fan header |
3 x system fan headers |
3 x addressable RGB Gen2 LED strip headers |
1 x RGB LED strip header |
2 x M.2 Socket 3 connectors |
4 x SATA 6Gb/s connectors |
1 x front panel header |
1 x front panel audio header |
1 x USB Type-C® header, with USB 3.2 Gen 2 support |
1 x USB 3.2 Gen 1 header |
2 x USB 2.0/1.1 headers |
2 x Thunderbolt™ add-in card connectors |
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) |
1 x HDMI port |
1 x Q-Flash Plus button |
1 x reset button |
1 x reset jumper |
1 x Clear CMOS jumper |

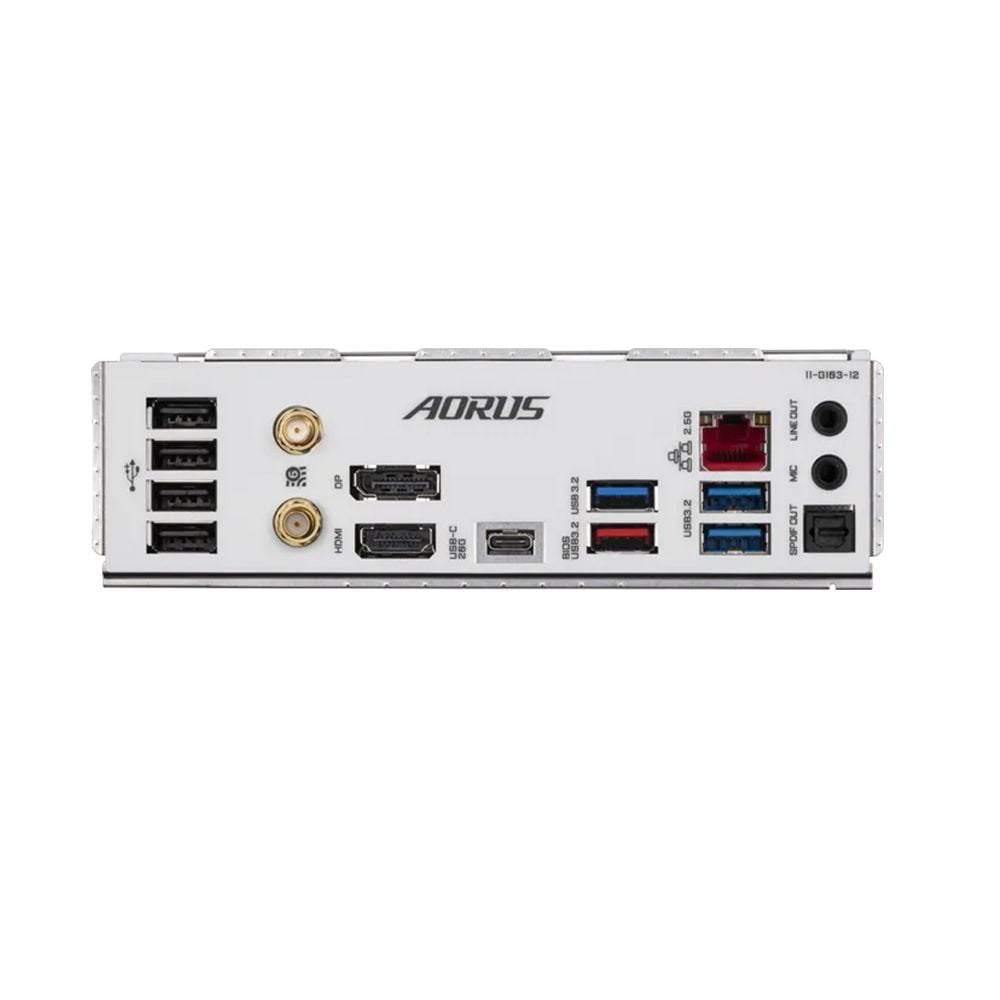

Cổng kết nối (Back Panel) | 2 x SMA antenna connectors (2T2R) |
1 x USB Type-C® port, with USB 3.2 Gen 2x2 support |
1 x USB 3.2 Gen 2 Type-A port (red) |
3 x USB 3.2 Gen 1 ports |
4 x USB 2.0/1.1 ports |
1 x HDMI port |
1 x DisplayPort |
1 x RJ-45 port |
1 x optical S/PDIF Out connector |
2 x audio jacks |
LAN / Wireless | Intel® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
|
Realtek® Wi-Fi 6E RTL8852CE (PCB rev. 1.0) |
- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands |
- BLUETOOTH 5.3 |
- Support for 11ax 160MHz wireless standard |
Intel® Wi-Fi 6E AX211 (For PCB rev. 1.1) |
- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands |
- BLUETOOTH 5.3 |
- Support for 11ax 160MHz wireless standard |
(Actual data rate may vary depending on environment and equipment.) |
Kích cỡ | Micro ATX Form Factor; 24.4cm x 24.4cm |
